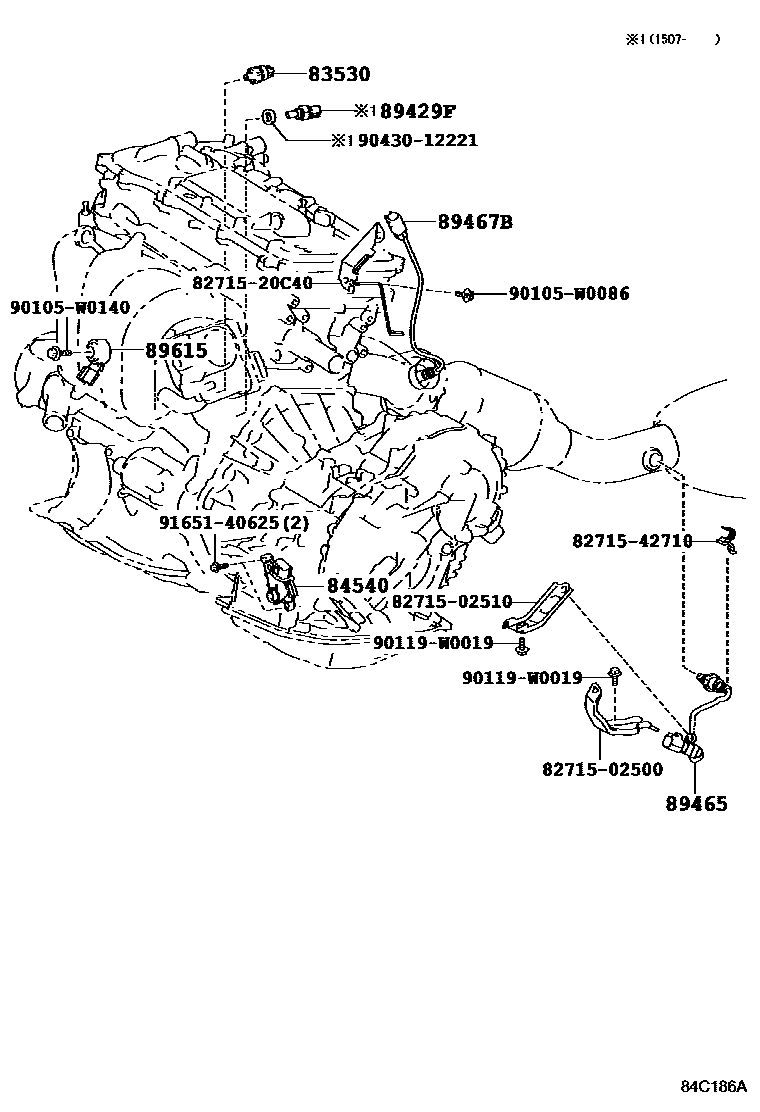

Toyota AVENSIS — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1���������������� 0004 1���������������� 0005 1��� 0006 1��� 0007 1������������ 0008 1������������ 0009 1������� 0010 1������� 0011 1��� 0012 1���,���,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRT272201107-201111

main83530-05010iZRT272201202-201402

main83530-12050iZRT272201310-201402

main83530-12060iZRT272201402-201505

main83530-12060iZRT272201507

main83530-12070iZRT272201402-201505

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZRT272201507

main84540-52070iZRT272201107-201505

89429FSENSOR, TEMPERATURE

main89429-12010iZRT272201507

89465SENSOR, OXYGEN

main89465-02280iZRT272201107-201505

main89465-12A40iZRT272201507

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRT272201107-201505

main89467-52060iZRT272201507

89615SENSOR, KNOCK CONTROL

main89615-02020iZRT272201107-201505

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105W0086

main90105-W0086

90105W0140

main90105-W0140

90119W0019

main90119-W0019

9043012221

main90430-12221

9165140625

main91651-40625

15 parts on this diagram · 12 diagrams in section
