Toyota AVENSIS — PARTIAL ENGINE ASSEMBLY

Parts diagram

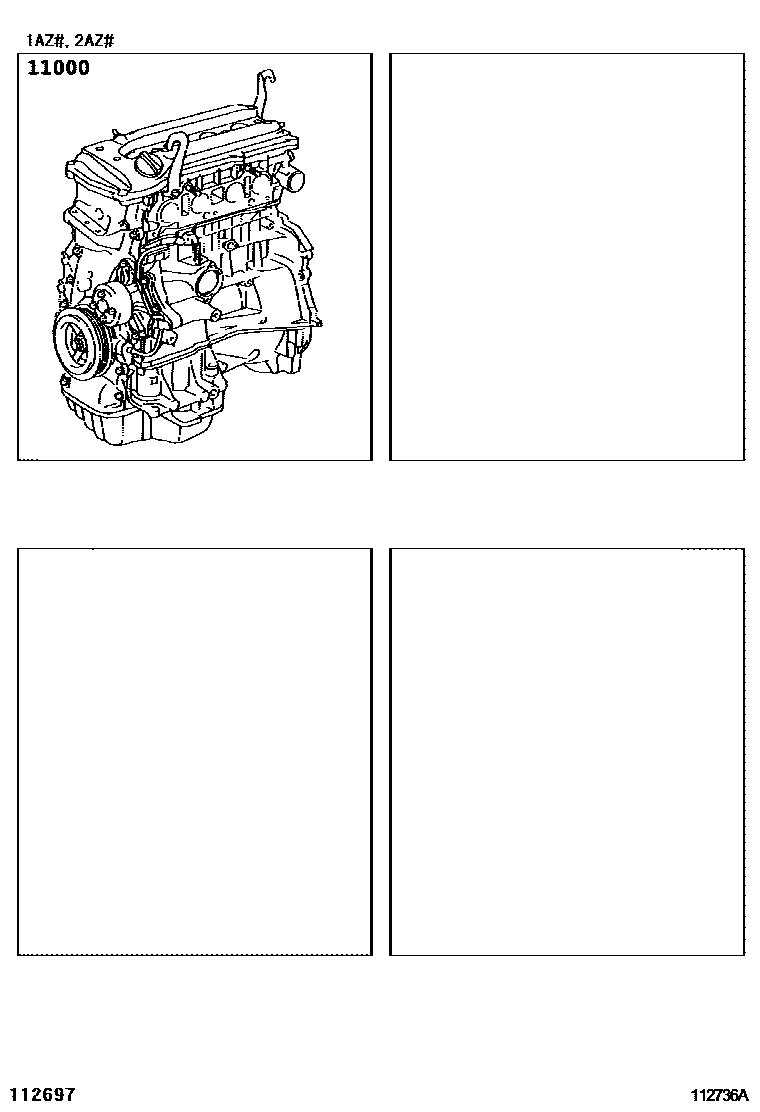

11000ENGINE ASSY, PARTIAL

main19000-28330i200307-200606

main19000-28340i200506-200606

main19000-28671i200608-200811

1 parts on this diagram · 1 diagram in section
