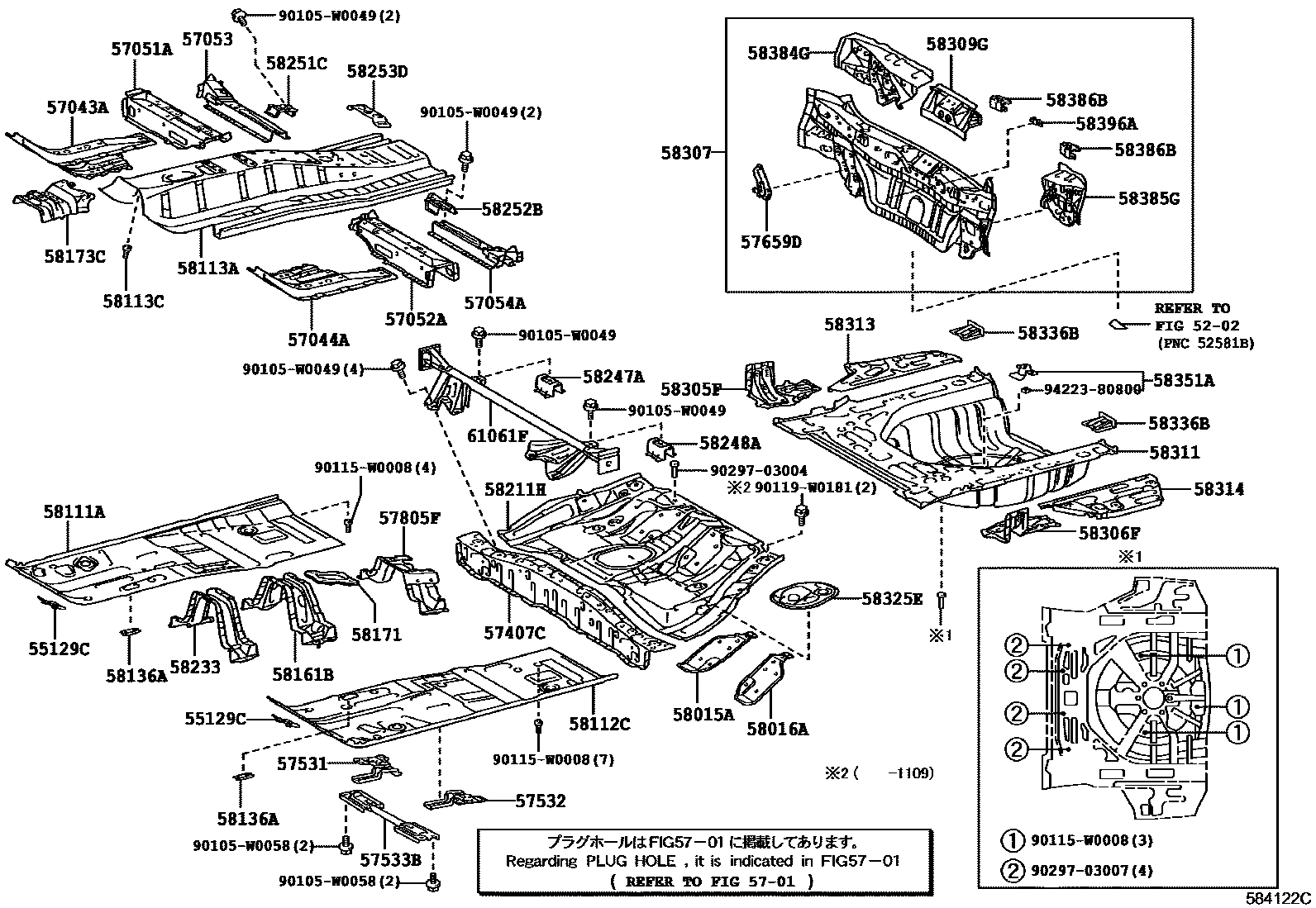

Toyota AVENSIS — FLOOR PAN & LOWER BACK PANEL

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

55129CCOVER, DASH PANEL HOLE

main55129-02030i201107-201111

main55139-02020i201202-201505

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02040i201507

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02040i201107-201111

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02010i201107-201111

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02010i201107-201111

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02010i201202-201505

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02010i201107-201111

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02071i201107-201111

main57407-02072i201507

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02010i201107-201111

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02010i201107-201111

57533BBRACE, FRONT FLOOR, CENTER

main57501-02021i201107-201111

57659DBRACKET, EXHAUST PIPE MOUNTING, NO.4

main51904-05010i201107-201111

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02030i201107-201111

main57805-02031i201210-201505

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02160i201107-201111

main58015-02161i201311-201505

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02140i201107-201111

main58016-02141i201311-201505

58111APAN, FRONT FLOOR, RH

main58111-05903i201107-201111

58112CPAN, FRONT FLOOR, LH

main58112-05901i201107-201111

58113APANEL, FRONT FLOOR, CENTER

main58113-05901i201107-201111

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-W0010×4i201107-201111

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02030×2i201107-201111

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02040i201107-201111

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02040i201202-201505

58173CBRACKET, WIRING HARNESS PROTECTOR

main58173-05010i201107-201111

58211HPAN, CENTER FLOOR

main58211-02907i201107-201111

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-02020i201107-201111

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-05010i201107-201111

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-05010i201107-201111

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02030i201107-201111

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02010i201107-201111

58253DBRACKET, PARKING BRAKE CABLE

main58253-02020i201107-201111

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02010i201107-201111

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02010i201107-201111

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-05100i201107-201111

58309GRETAINER SUB-ASSY, BACK DOOR LOCK STRIKER

main58309-05080i201107-201111

58311PAN, REAR FLOOR

main58311-05060i201107-201111

58313PANEL, REAR FLOOR SIDE, RH

main58313-05030i201107-201111

58314PANEL, REAR FLOOR SIDE, LH

main58314-05050i201107-201111

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02080i201107-201111

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-02050×2i201107-201111

58351ABRACKET, SPARE WHEEL CARRIER

main58351-02020i201107-201111

58384GGUSSET, LOWER BACK, UPPER RH

main58384-05060i201107-201111

58385GGUSSET, LOWER BACK, UPPER LH

main58385-05040i201107-201111

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02010×2i201107-201111

58396ABRACKET, WIRE HARNESS CLAMP

main82715-05440i201107-201111

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61063-05010i201107-201111

90105W0049

main90105-W0049

90105W0058

main90105-W0058

90115W0008

main90115-W0008

90119W0181

main90119-W0181

9029703004

main90297-03004

9029703007

main90297-03007

9422380800

main94223-80800

54 parts on this diagram · 2 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota AVENSIS

This section contains 64 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota AVENSIS. Key components include: REAR BUMPER & BUMPER STAY, COVER, DASH PANEL HOLE, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH.
