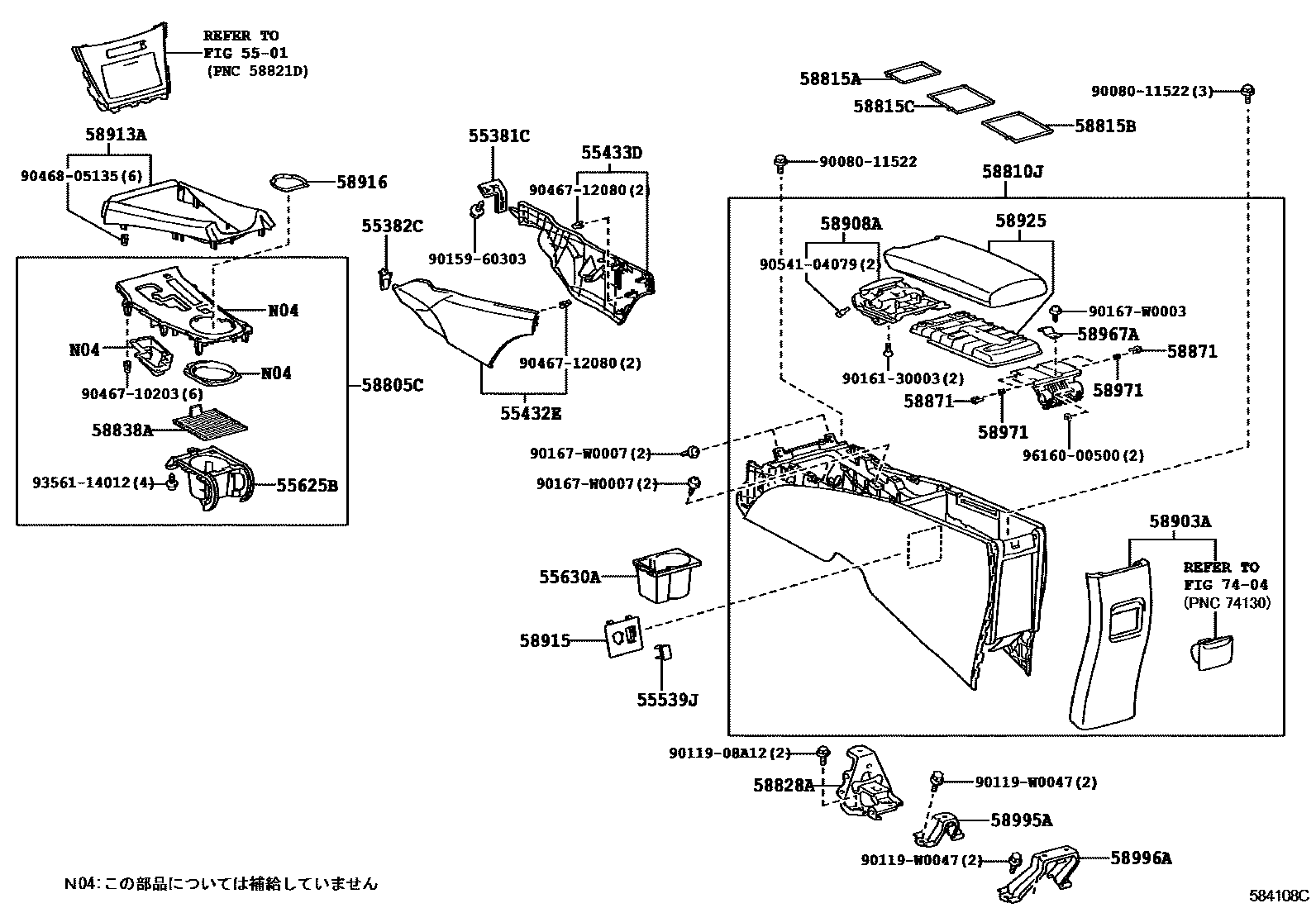

Toyota AVENSIS — CONSOLE BOX & BRACKET

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55381CBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-02070i201107-201111

main55389-02090i201507

55382CBRACKET, FINISH PANEL MOUNTING, NO.2

main55382-02050i201107-201111

main55388-02060i201507

55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-05060-C0i201107-201111

BLACK,TRIM2#

main55432-05060-E0i201202-201505

GREGE,TRIM4#

main55432-05080-C0i201507

EU BLACK,TRIM1#,2#,4#

55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-05020-C0i201107-201111

BLACK,TRIM2#

main55433-05020-E0i201202-201505

GREGE,TRIM4#

main55433-05040-C0i201507

EU BLACK,TRIM1#,2#,4#

55539JCOVER, SPARE SWITCH HOLE

main55539-05100i201107-201111

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-05020i201107-201111

main55625-05050i201507

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-05040-C0i201107-201111

BLACK,TRIM2#

main55630-05040-C2i201507

EU BLACK,TRIM1#,2#,4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-05110i201107-201111

main58805-05261i201202-201505

main58805-05270i201202-201505

main58805-05380i201507

main58805-05390i201507

58810JBOX ASSY, CONSOLE

main58810-05030-C0i201107-201111

BLACK,TRIM2#

main58810-05040-22i201202-201410

BLACK/MD.SILVER,TRIM2#

main58810-05041-22i201411-201505

BLACK/MD.SILVER,TRIM2#

main58810-05050-21i201202-201505

BLACK,TRIM4#

main58810-05070-21i201507

EU BLACK/COPPER,TRIM4#

main58810-05070-C9i201507

EU BLACK/LT GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-05040i201107-201111

58815BCARPET, CONSOLE BOX

main58815-05050i201107-201111

58815CCARPET, CONSOLE BOX

main58815-05060i201107-201111

58828ABRACKET, CONSOLE BOX, LOWER

main89189-05010i201107-201111

58838ADOOR, CONSOLE CUP HOLDER BOX

main58838-05010i201107-201111

main58838-05020i201507

58871CUSHION, CONSOLE BOX

main58871-30070×4i201202-201505

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-05010-C0i201107-201111

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-05020-C0i201107-201111

BLACK,TRIM2#

main58908-05030-B1i201202-201505

W. NICKEL,TRIM4#

main58908-05030-B3i201202-201505

MD.SILVER,TRIM2#

main58908-05040-C0i201507

EU BLACK,TRIM1#,2#,4#

58913APANEL, BOX, NO.3

main58913-05012-C0i201107-201111

BLACK,TRIM2#

main58913-05012-E0i201202-201505

GREGE,TRIM4#

main58913-05030-C0i201507

EU BLACK,TRIM1#,2#,4#; EU BLACK,TRIM1#,4#

58915PANEL, BOX BOTTOM

main58915-05020-C0i201202-201505

BLACK,TRIM2#; BLACK,TRIM4#

main58915-05020-C2i201507

EU BLACK,TRIM1#,2#,4#

58916MAT, BOX BOTTOM

main58916-05060i201107-201111

58925LID, REAR CONSOLE ARMREST

main58925-05010-C0i201107-201111

BLACK,TRIM2#

main58925-05020-E2i201202-201505

BLACK,TRIM4#

main58925-05040-B1i201507

LT GRAY,TRIM1#

main58925-05040-E3i201507

COPPER,TRIM4#

58967ASPRING, CONSOLE DOOR STOPPER

main58949-05010i201107-201111

58971LOCK, CONSOLE COMPARTMENT DOOR

main58992-30050×4i201107-201111

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-05040i201107-201111

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-05040i201107-201111

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008011522

main90080-11522

9011908A12

main90119-08A12

90119W0047

main90119-W0047

9015960303

main90159-60303

9016130003

main90161-30003

90167W0003

main90167-W0003

90167W0007

main90167-W0007

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9054104079

main90541-04079

9356114012

main93561-14012

9616000500

main96160-00500

40 parts on this diagram · 3 diagrams in section

CONSOLE BOX & BRACKET for Toyota AVENSIS

This section contains 49 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota AVENSIS. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, BRACKET, FINISH PANEL MOUNTING, NO.1, BRACKET, FINISH PANEL MOUNTING, NO.2, PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1, PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2.
