Toyota AVENSIS — CONSOLE BOX & BRACKET

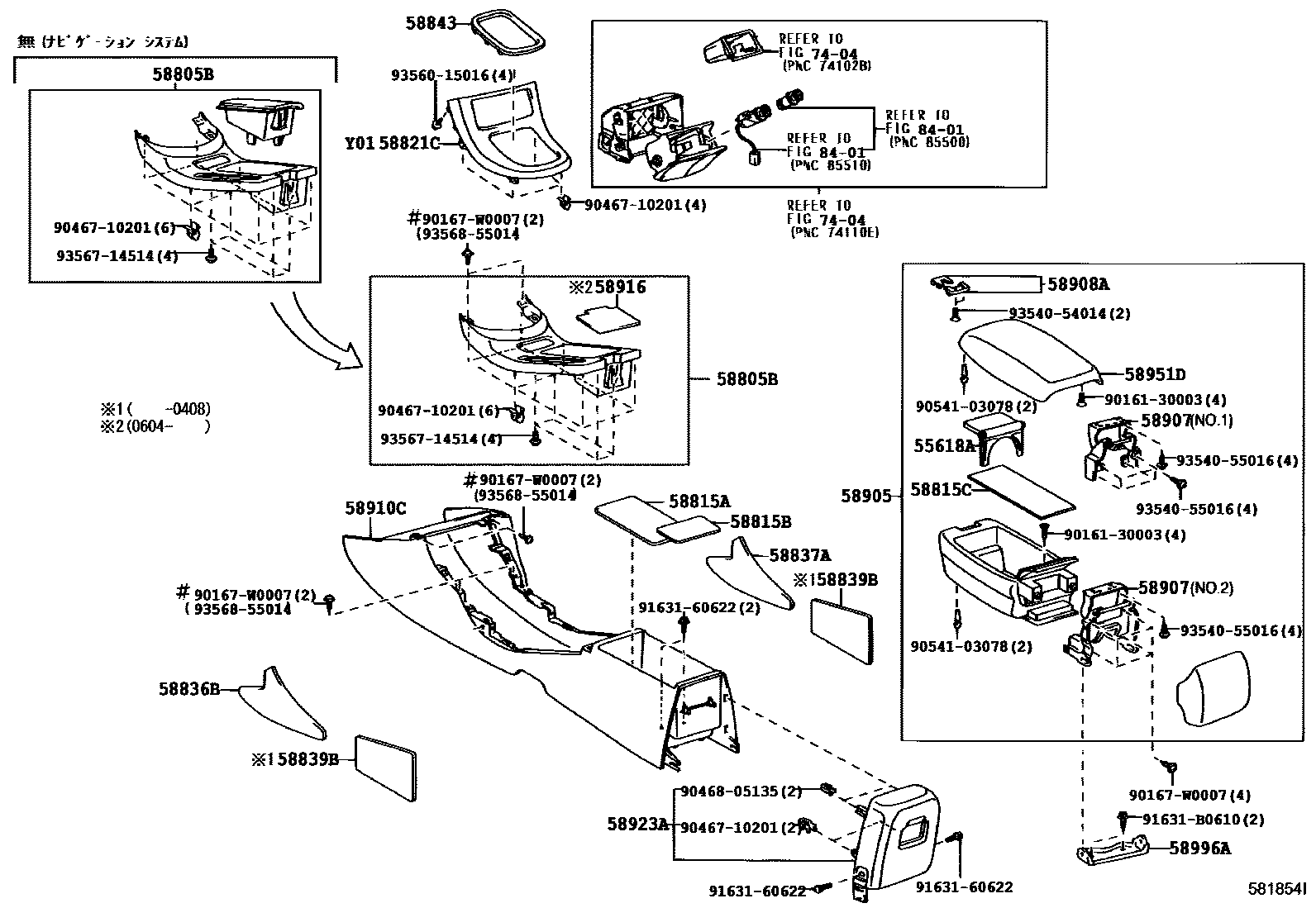

Parts diagram

55618AHOLDER, CONSOLE BOX CUP

main55630-05030i200606

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-05031-A0i200307-200603

main58805-05031-B0i200307-200603

main58805-05032-A0i200604-200606

main58805-05032-B0i200604-200606

main58805-05032-E0i200606-200608

main58805-05033-B0i200609

main58805-05033-E0i200609

main58805-05040-A0i200307-200606

main58805-05040-B0i200307-200606

main58805-05060-B0i200606

main58805-05060-E0i200606

58815ACARPET, CONSOLE BOX

main58815-05010i200606

58815BCARPET, CONSOLE BOX

main58815-05020i200307-200606

58815CCARPET, CONSOLE BOX

main58815-05030i200307-200606

58821CPANEL, CONSOLE, UPPER

main58821-05010i200307-200407

main58821-05060i200606

main58821-05020i200307-200407

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-05010i200307-200606

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-05010i200307-200606

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58849-05010×2i200307-200408

58843BEZEL, SHIFTING HOLE

main58843-20210i200307-200606

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-05030-B3i200307-200606

DK.GRAY,TRIM1#

main58905-05050-A2i200506-200606

IVORY,TRIM0#

main58905-05050-B5i200606

DK.GRAY,TRIM1#

main58905-05050-E0i200606

GREGE,TRIM4#

main58905-05070-B0i200606

DARK GREY,TRIM1#

main58905-05050-A1supersedes 58905-05040-A2i200307-200410

main58905-05050-B3supersedes 58905-05040-B3i200307-200410

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-05010i200606

main58907-05020i200307-200606

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-05010i200307-200606

58910CBOX ASSY, CONSOLE, REAR

main58911-05070-A0i200307-200606

IVORY,TRIM0#

main58911-05070-B0i200307-200606

DK.GRAY,TRIM1#

main58911-05070-E0i200606

GREGE,TRIM4#

58916MAT, BOX BOTTOM

main58916-05030-B0i200606

main58916-05030-E0i200606

58923APANEL, CONSOLE REAR END

main58923-05020-A0i200307-200606

IVORY,TRIM0#

main58923-05020-B0i200307-200606

DK.GRAY,TRIM1#

main58923-05020-E0i200606

GREGE,TRIM4#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-05030-B2i200307-200606

DK.GRAY,TRIM1#

main58951-05050-A1i200506-200606

IVORY,TRIM0#

main58951-05050-B3i200506-200606

DK.GRAY,TRIM1#

main58951-05050-E0i200606

GREGE,TRIM4#

main58951-05070-B0i200606

DARK GREY,TRIM1#

main58951-05050-A0supersedes 58951-05040-A0i200307-200410

main58951-05050-B0supersedes 58951-05040-B0i200307-200410

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-05030i200307-200606

7404ASH RECEPTACLE

→ Go to FIG 74-04

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016130003

main90161-30003

90167W0007

main90167-W0007

9046710201

main90467-10201

9046805135

main90468-05135

9054103078

main90541-03078

9163160622

main91631-60622

91631B0610

main91631-B0610

9354054014

main93540-54014

9354055016

main93540-55016

9356015016

main93560-15016

9356714514

main93567-14514

9356855014

main93568-55014

32 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota AVENSIS

This section contains 32 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota AVENSIS. Key components include: HOLDER, CONSOLE BOX CUP, PANEL SUB-ASSY, CONSOLE, LOWER, CARPET, CONSOLE BOX.
