Toyota AVENSIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-05050iAZT250..RHD200301-200807

sub85110-1A050

main85110-05060iAZT250..LHD200301-200807

sub85110-1A040

main85110-1A040iAZT250..LHD200808

main85110-1A050iAZT250..RHD200808

85150BLINK ASSY, WIPER

main85150-05050iAZT250..RHD200301-200604

main85150-05060iAZT250..LHD200301-200604

85211BARM, FRONT WIPER, RH

main85211-05060iAZT250..RHD200301-200604

main85211-05070iAZT250..LHD200301-200604

85212ABLADE, FR WIPER, RH

main85212-05070iAZT250..RHD200301-200604

main85212-05080iAZT250..LHD200301-200610

sub85212-05081

main85212-05081iAZT250..LHD200611

85214ARUBBER, WIPER, RH

main85214-02210iAZT250..LHD200402-200610

sub85214-02211

main85214-02211iAZT250..LHD200611

main85214-05080iAZT250..RHD200301-200604

main85214-05090iAZT250..LHD200301-200401

sub85214-02210

85214BRUBBER, WIPER, LH

main85214-02210iAZT250..RHD200402-200610

sub85214-02211

main85214-02211iAZT250..RHD200611

main85214-05080iAZT250..LHD200301-200604

main85214-05090iAZT250..RHD200301-200401

sub85214-02210

85221BARM, FRONT WIPER, LH

main85221-05060iAZT250..RHD200301-200604

main85221-05070iAZT250..LHD200301-200604

85222ABLADE, FR WIPER, LH

main85222-05110iAZT250..RHD200301-200610

sub85222-05111

main85222-05111iAZT250..RHD200611

main85222-05120iAZT250..LHD200301-200604

85292BCAP, FRONT WIPER ARM HEAD

main85292-05020iAZT250200301-200604

89941SENSOR, RAIN

main89941-05020iAZT250200604

89943COVER, RAIN SENSOR

main89943-05010iAZT250200604

89944TAPE, RAIN SENSOR

main89944-05010iAZT250200604-200811

8994305030COVER, RAIN SENSOR

main89943-05030

9011906864

main90119-06864

9017908113

main90179-08113

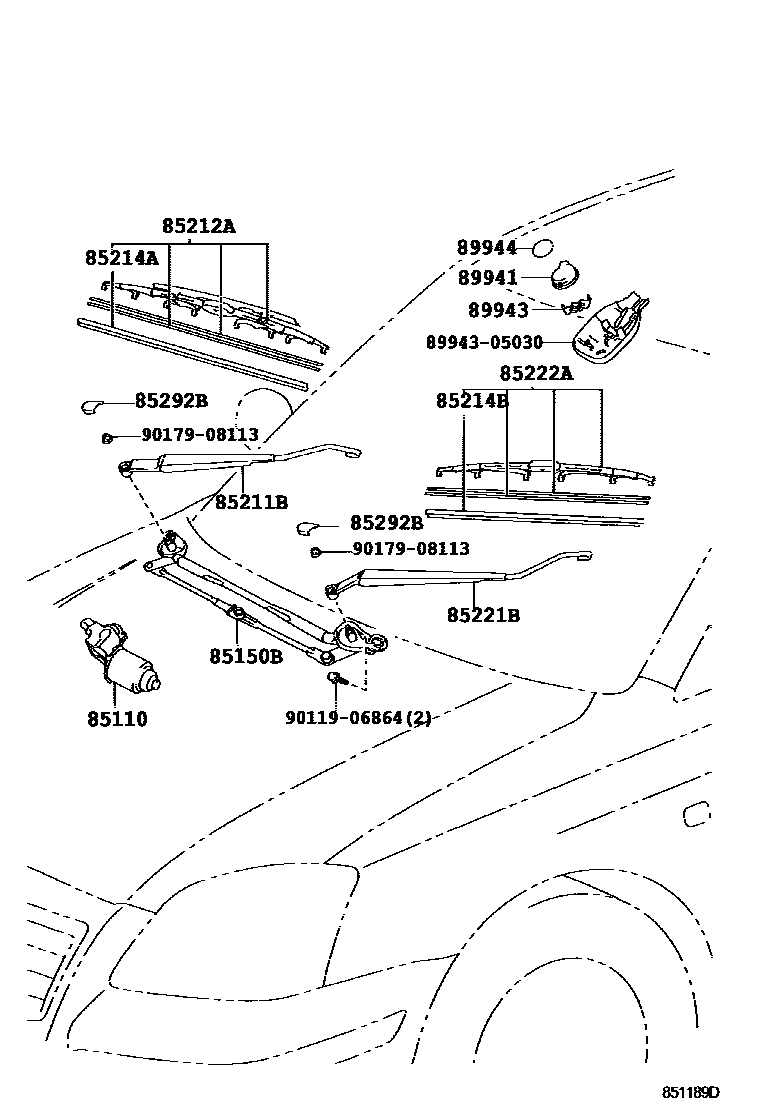

15 parts on this diagram · 1 diagram in section
