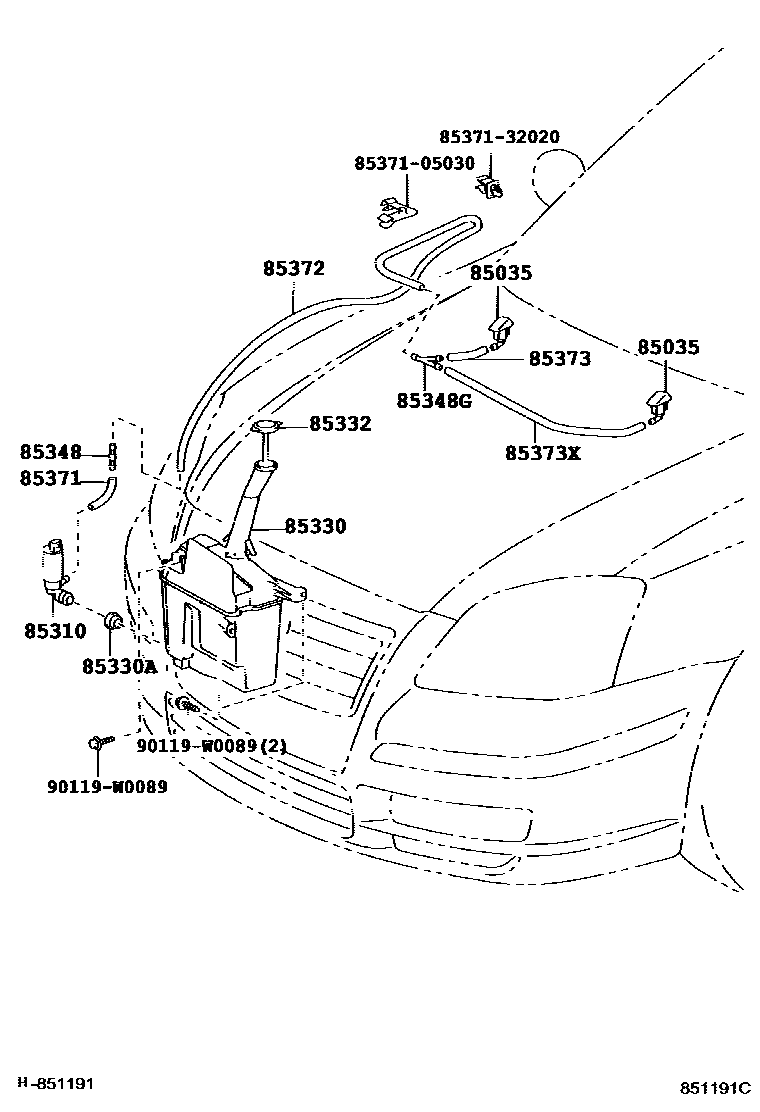

Toyota AVENSIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-05040iAZT250..RHD200301-200504

sub85381-05041

main85381-05041iAZT250..RHD200505-200604

main85381-05050iAZT250..LHD200301-200504

sub85381-05051

main85381-05051iAZT250..LHD200505-200604

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030iAZT250200301-200506

sub85330-05031

main85330-05031iAZT250200506-200604

85330JAR ASSY, WINDSHIELD WASHER

main85315-05110iAZT250200301-200604

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iAZT250200301-200604

85332CAP, WINDSHIELD WASHER JAR

main85316-02090iAZT250200301-200604

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iAZT250200301-200604

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030iAZT250200301-200604

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011iAZT250200301-200604

*H,L=50

sub90069-16008

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46012iAZT250200301-200604

*H,L=1735

sub90069-16011

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009iAZT250200301-200811

*H,L=100

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main90069-16009iAZT250200301-200811

*H,L=640

8537105030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-05030

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

90119W0089

main90119-W0089

14 parts on this diagram · 1 diagram in section
