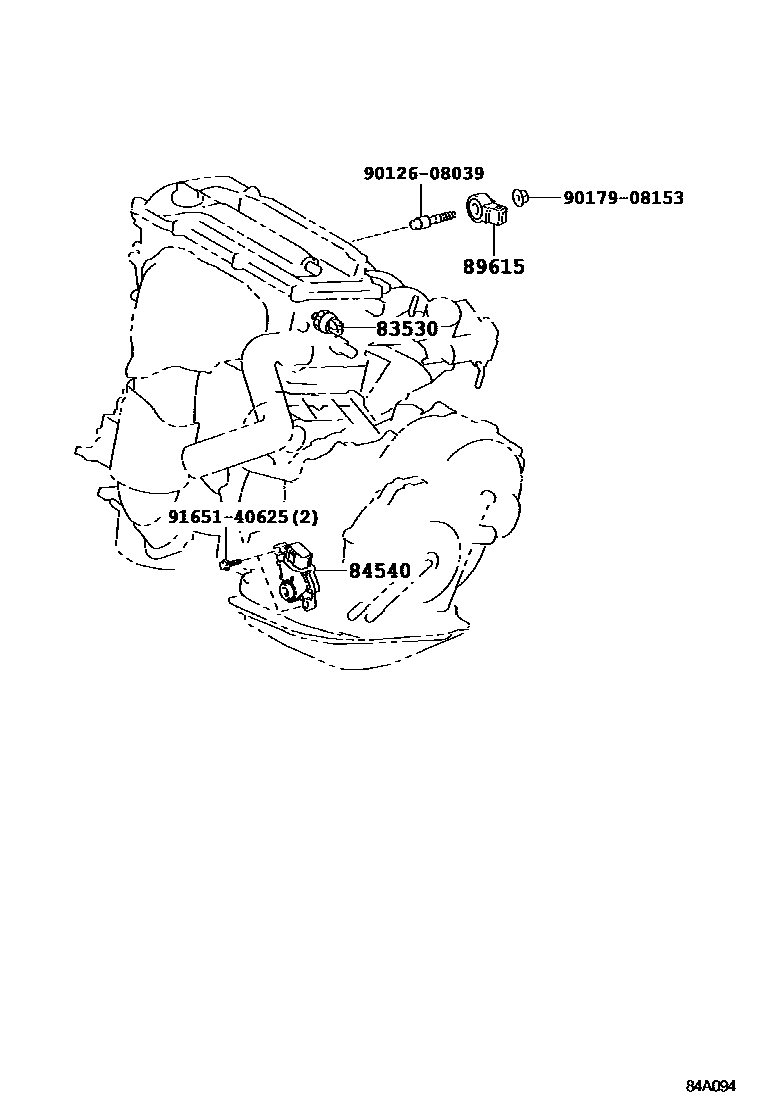

Toyota AVENSIS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1STEERING 0009 1SEAT 0010 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAZT270200811-201104

84540SWITCH ASSY, NEUTRAL START

main84540-48010iAZT270200811-201104

89615SENSOR, KNOCK CONTROL

main89615-20090iAZT270200811-201104

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

6 parts on this diagram · 10 diagrams in section
