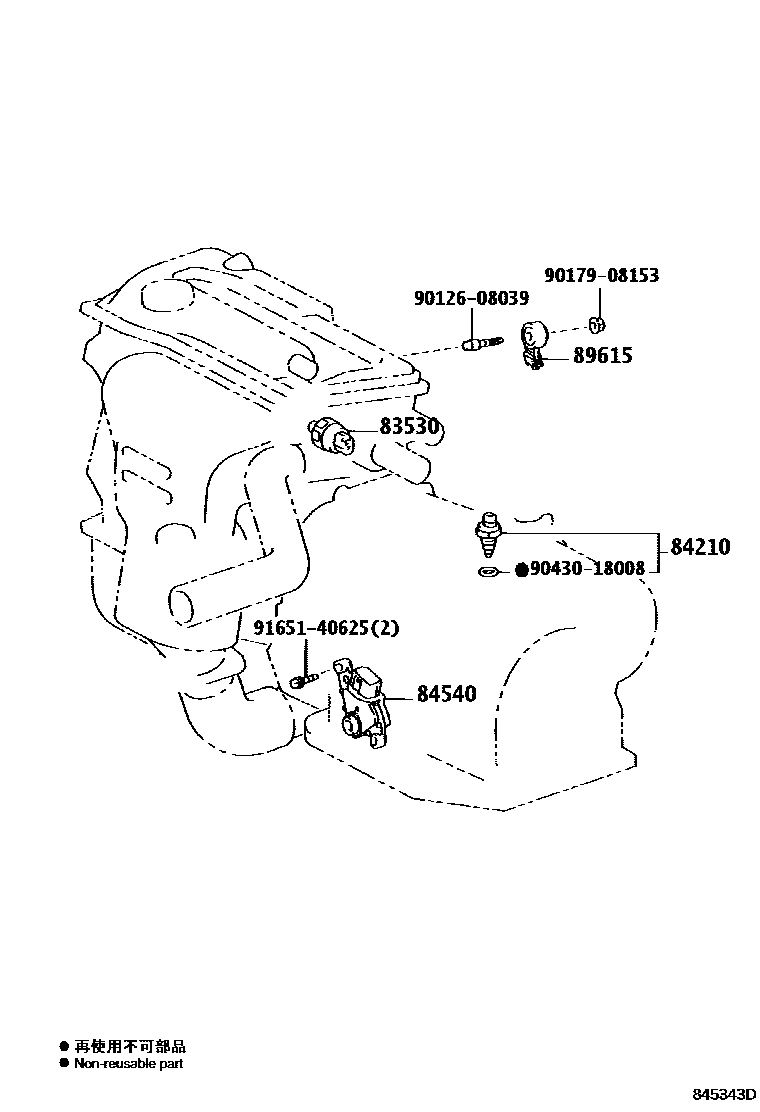

Toyota AVENSIS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SWITCH0009 1SEAT 0010 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAZT250200301-200604

DENSO

main83530-60020iAZT250200301-200604

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAZT250..5F200604

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-32110iAZT250..4FC200301-200604

main84540-48010iAZT250..4FC200604

89615SENSOR, KNOCK CONTROL

main89615-02020iAZT250200301-200604

(L)

main89615-20090iAZT250200301-200604

(J)

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

8 parts on this diagram · 10 diagrams in section
