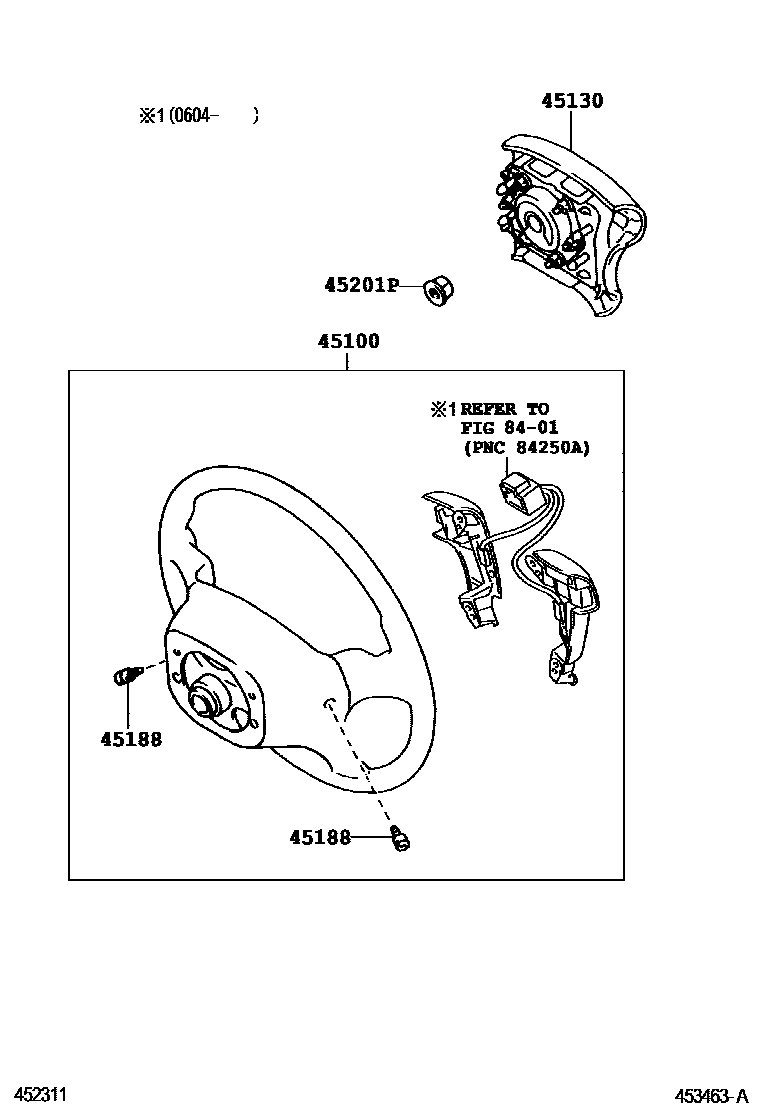

Toyota AVENSIS — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-05220-B0iAZT250200301-200604

4-SPOKE,URETHANE,DK.GRAY,TRIM0#,1#,W/O(AUDIO SW)

main45100-05410-B0iAZT250200604

4-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-05112-B0iAZT250200301-200604

DK.GRAY,TRIM0#,1#

main45130-05112-B0iAZT250200604

DK.GRAY,TRIM1#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90080-14018iAZT250200301-200604

L=15.5

45201PNUT, STEERING WHEEL SET

main90178-W0030iAZT250200307-200604

sub90179-12071

main90179-12071iAZT250200301-200307

8401

5 parts on this diagram · 1 diagram in section
