Toyota AVENSIS — STARTER

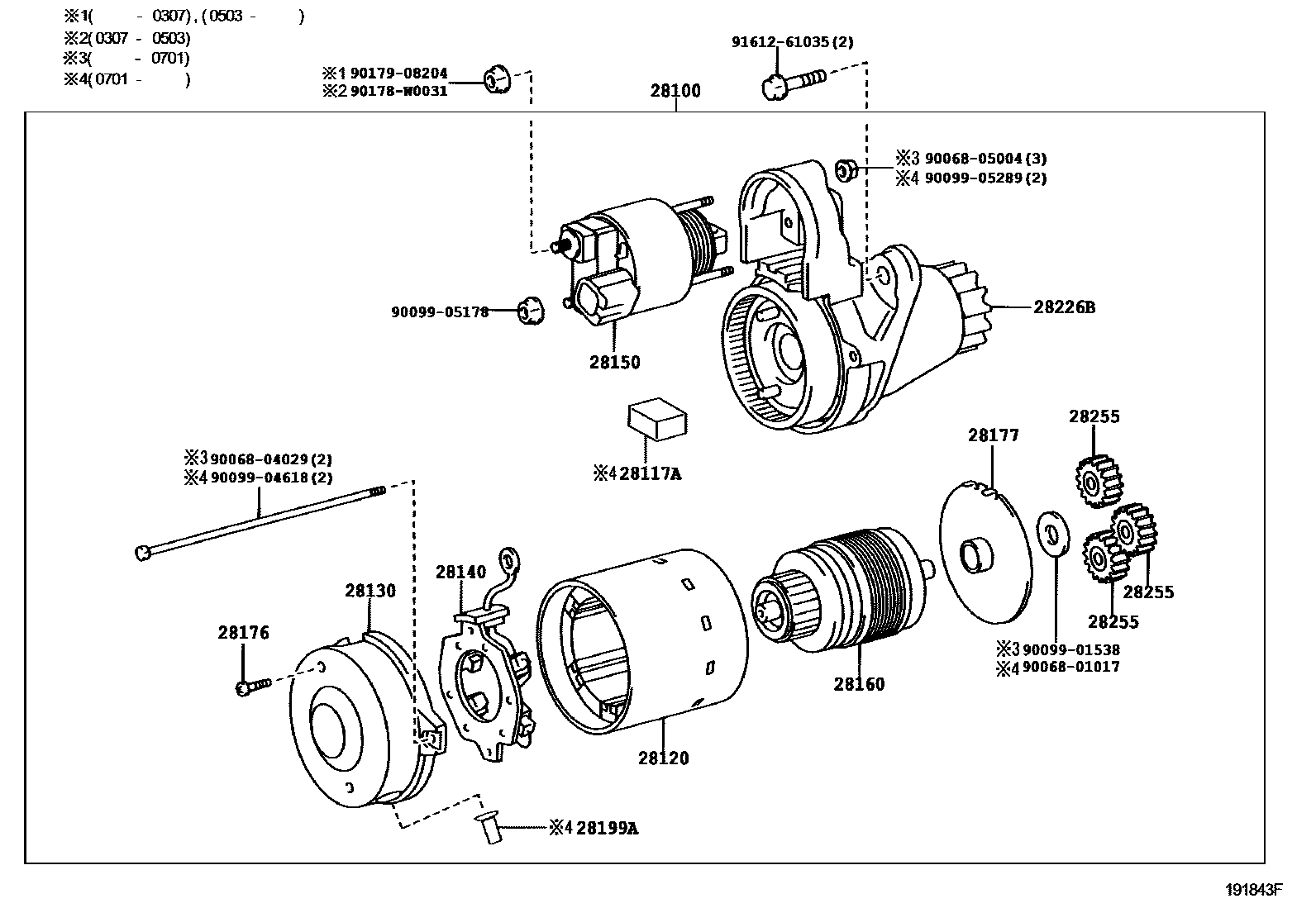

28100STARTER ASSY

main28100-0H050i1AZFE..AZT250200301-200603

12V 1.3KW

sub28100-0H051

main28100-0H051i1AZFE..AZT250200604-200612

12V 1.3KW

sub28100-0H100

main28100-0H100i1AZFE..AZT250200701

12V 1.3KW

28117ASEAL, RUBBER

main28117-37050i1AZFE..AZT250200701

28120YOKE ASSY, STARTER

main28120-0D090i1AZFE..AZT250200301-200701

sub28100-0DH03

sub28100-0HH02

main28120-0H100i1AZFE..AZT250200701-200811

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-37050i1AZFE..AZT250200701-200811

28140HOLDER ASSY, STARTER BRUSH

main28140-0H100i1AZFE..AZT250200701-200811

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i1AZFE..AZT250200701

main28226-0D090i1AZFE..AZT250200604-200701

sub28100-0DH05

sub28100-0HH08

sub28100-0HH09

28160ARMATURE ASSY, STARTER

main28160-0D090i1AZFE..AZT250200301-200701

main28160-0D180i1AZFE..AZT250200701

28176SCREW, STARTER

main90068-00015i1AZFE..AZT250200301-200701

main90099-00323i1AZFE..AZT250200701

28177PLATE(FOR STARTER ARMATURE)

main28177-37050i1AZFE..AZT250200701-200811

28199APROTECTOR, DUST STARTER

main28199-37050i1AZFE..AZT250200701

28226BSTARTER KIT, REPAIR SERVICE

main28226-0D090i1AZFE..AZT250200301-200604

NO.1

sub28100-0DH05

sub28100-0HH08

sub28100-0HH09

main28226-0H050i1AZFE..AZT250200301-200604

NO.2

main28226-0H051i1AZFE..AZT250200604-200701

main28226-0H100i1AZFE..AZT250200701

28255GEAR, PLANET

main28255-37050i1AZFE..AZT250200701-200811

9006801017

main90068-01017

9006804029

main90068-04029

9006805004

main90068-05004

9009901538

main90099-01538

9009904618

main90099-04618

9009905178

main90099-05178

9009905289

main90099-05289

90178W0031

main90178-W0031

9017908204

main90179-08204

9161261035

main91612-61035

22 parts on this diagram · 1 diagram in section
