Toyota AVENSIS — STANDARD TOOL

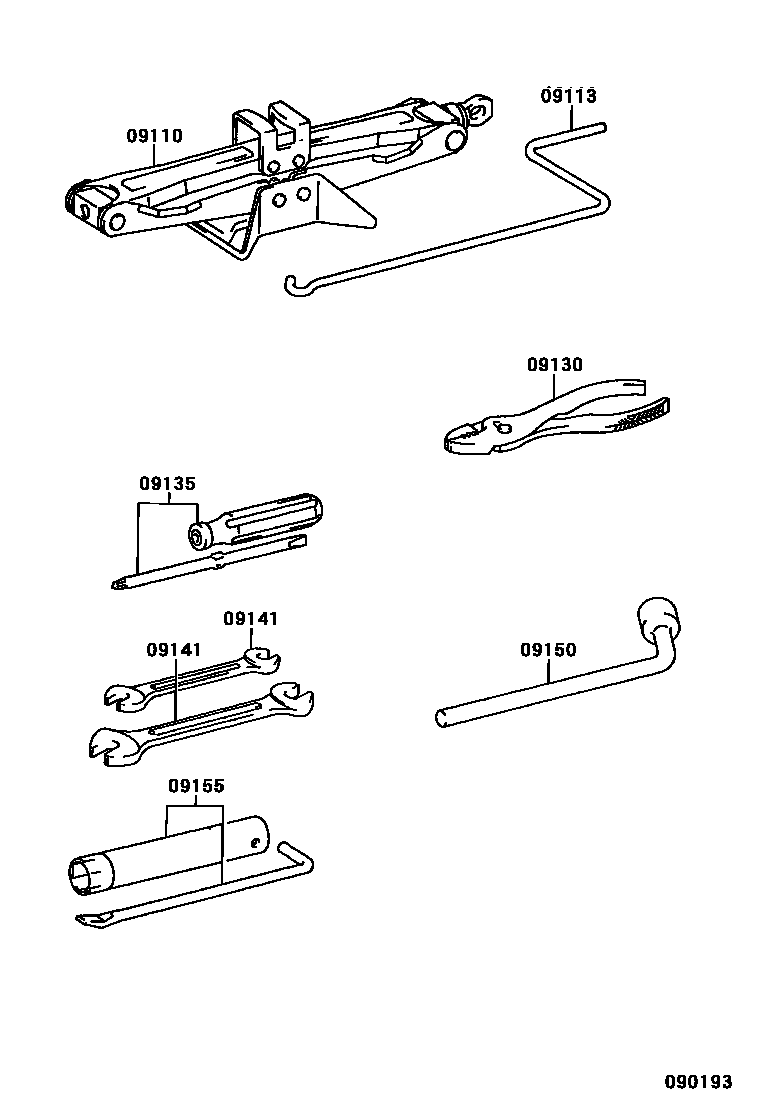

Parts diagram

09110JACK ASSY

main09111-05010i200301-200307

main09111-05030i200307-200604

main09111-05031i200604

09113HANDLE, JACK

main09113-05010i200301-200604

09130PLIERS

main90080-99009i200301-200604

09135DRIVER, SCREW

main90080-99008i200301-200604

09141SPANNER

main90080-99010i200301-200604

8 X 10

main90080-99011i200301-200604

12 X 14

09150WRENCH, HUB NUT BOX

main09150-05011i200301-200604

09155WRENCH, SPARK PLUG

main09155-02020i200301-200604

7 parts on this diagram · 1 diagram in section
