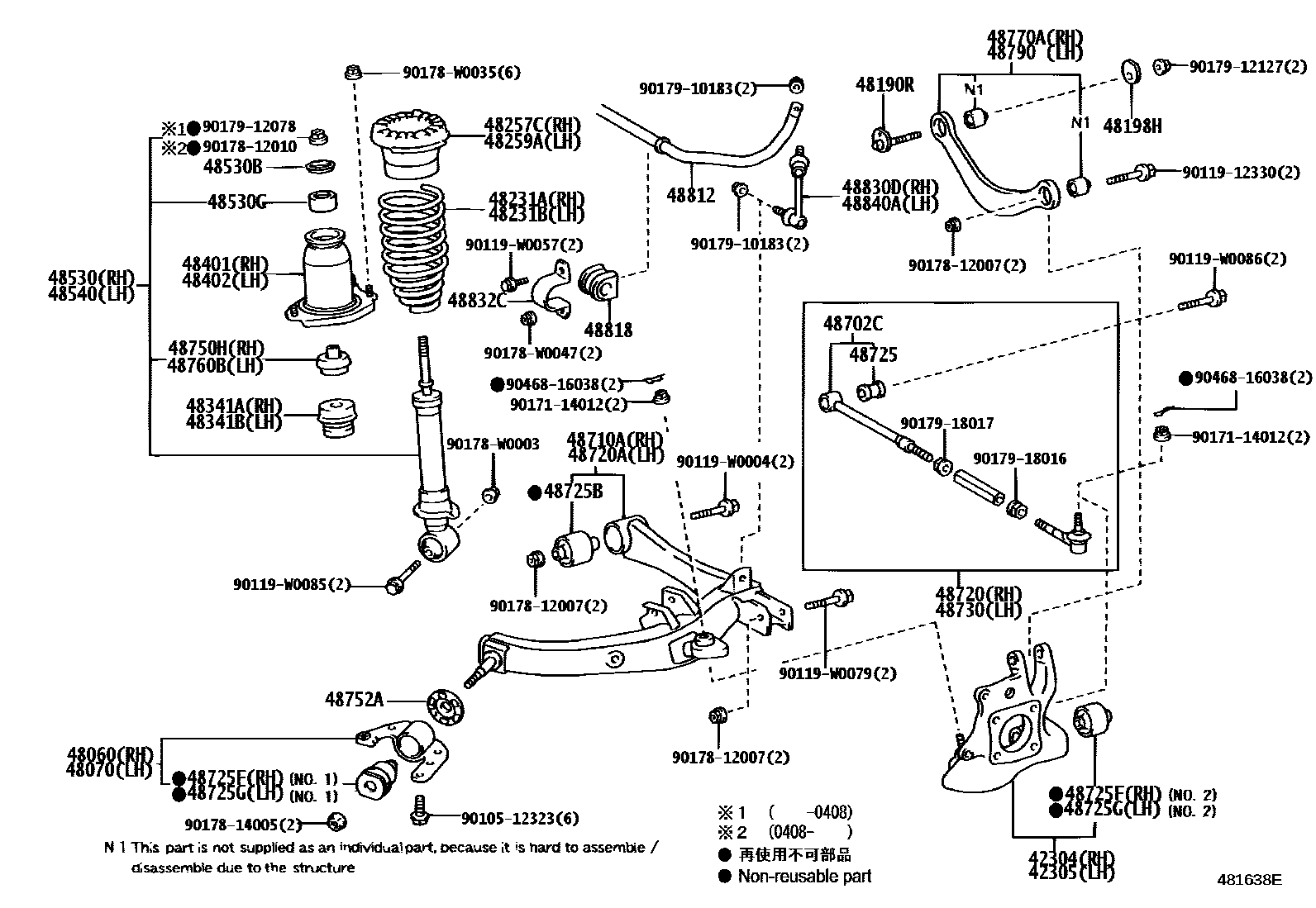

Toyota AVENSIS — REAR SPRING & SHOCK ABSORBER
48190RCAM ASSY, CAMBER ADJUST
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-05230
MARK 48530-05240
MARK 48530-05231
MARK 48530-05232
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-05230
MARK 48530-05240
MARK 48530-05231
MARK 48530-05232
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
RH
RH
LH
48725BUSH, LOWER CONTROL ARM
48725BBUSH, REAR SUSPENSION ARM, NO.1
48725FBUSH, REAR AXLE CARRIER, RH
NO.1
NO.1
NO.2
NO.2
48725GBUSH, REAR AXLE CARRIER, LH
NO.1
NO.1
NO.2
NO.2
48730ARM ASSY, LOWER CONTROL, LH
sub48730-21110
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48760BSUPPORT ASSY REAR SUSPENSION, LH
48830DLINK ASSY, REAR STABILIZER, RH
48832CBRACKET, REAR STABILIZER BAR, NO.3
48840ALINK ASSY, REAR STABILIZER, LH
9010512323
main90105-12323
9011912330
main90119-12330
90119W0004
main90119-W0004
90119W0057
main90119-W0057
90119W0079
main90119-W0079
90119W0085
main90119-W0085
90119W0086
main90119-W0086
9017114012
main90171-14012
9017812007
main90178-12007
9017812010
main90178-12010
9017814005
main90178-14005
90178W0003
main90178-W0003
90178W0035
main90178-W0035
90178W0047
main90178-W0047
9017910183
main90179-10183
9017912078
main90179-12078
9017912127
main90179-12127
9017918016
main90179-18016
9017918017
main90179-18017
9046816038
main90468-16038
57 parts on this diagram · 1 diagram in section
