Toyota AVENSIS — RADIATOR GRILLE

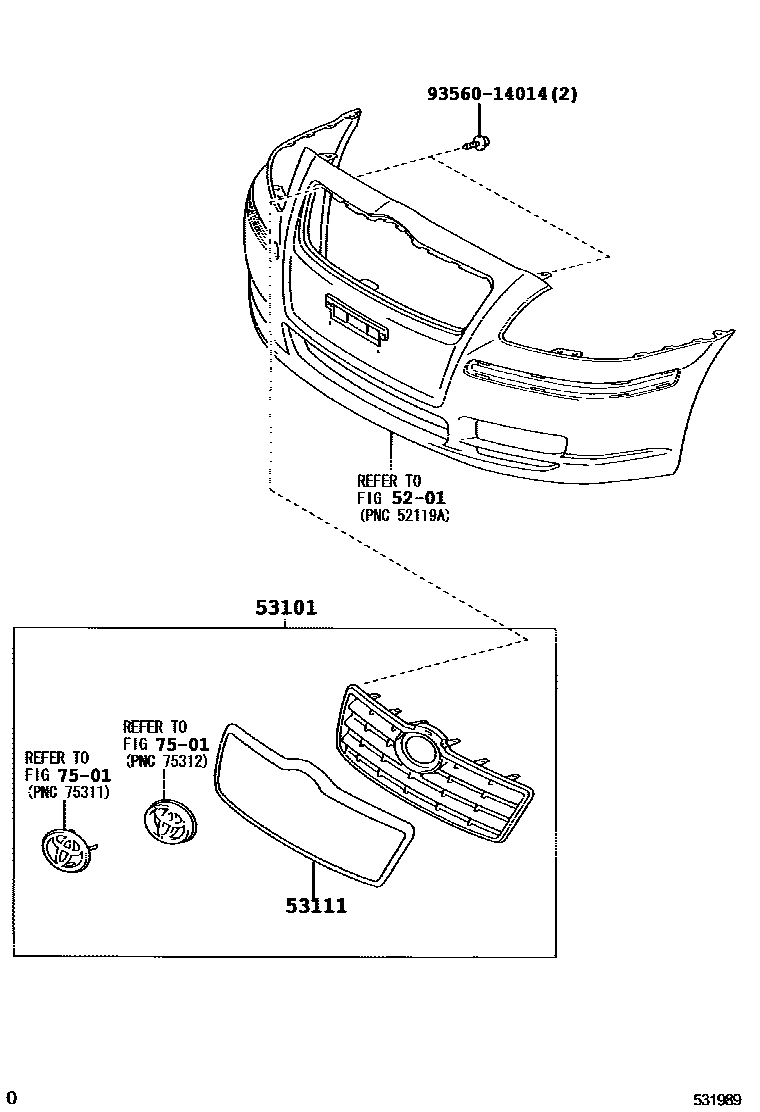

Parts diagram

5201

53101GRILLE SUB-ASSY, RADIATOR

main53100-05060-A0i200301-200604

SUPER WHITE 2,040

main53100-05060-B0i200301-200604

SILVER ME.,1C0

main53100-05060-B1i200301-200604

GRAY M.M.,1E5

main53100-05060-B2i200503-200604

DK.GRAY M.M.,1F6

main53100-05060-C0i200301-200604

BLACK MC.,209

main53100-05060-D0i200301-200604

SU.RED 3,3J6

main53100-05060-D1i200301-200604

RED MC.,3M8

main53100-05060-E0i200301-200604

BROWN M.M.,4Q9

main53100-05060-G0i200301-200604

DK.GREEN M.M.,6S3

main53100-05060-G1i200301-200604

LT.OLIVE M.M.,6T1

main53100-05060-J0i200301-200604

DK.BLUE M.M.,8P4

main53100-05080-A0i200604-200811

SUPER WHITE 2,040

main53100-05080-B0i200604-200811

SILVER ME.,1C0

main53100-05080-B1i200604-200811

GRAY ME.,1G3

main53100-05080-B2i200703-200811

MEDIUM SILVER ME.,1F8

main53100-05080-C0i200604-200811

BLACK MC.,209

main53100-05080-D0i200604-200811

SU.RED 3,3J6

main53100-05080-D1i200604-200811

MAROON MC.,3N0

main53100-05080-E0i200604-200705

BEIGE M.M.,4S0

main53100-05080-G0i200604-200811

LT.OLIVE M.M.,6T1

main53100-05080-G1i200604-200808

DK.GREEN MC.,6U9

main53100-05080-J0i200604-200811

DK.BLUE MC.,8S6

53111GRILLE, RADIATOR

main53111-05050i200301-200604

PLATED

main53111-05060i200604-200811

PLATED

7501

9356014014

main93560-14014

5 parts on this diagram · 2 diagrams in section
