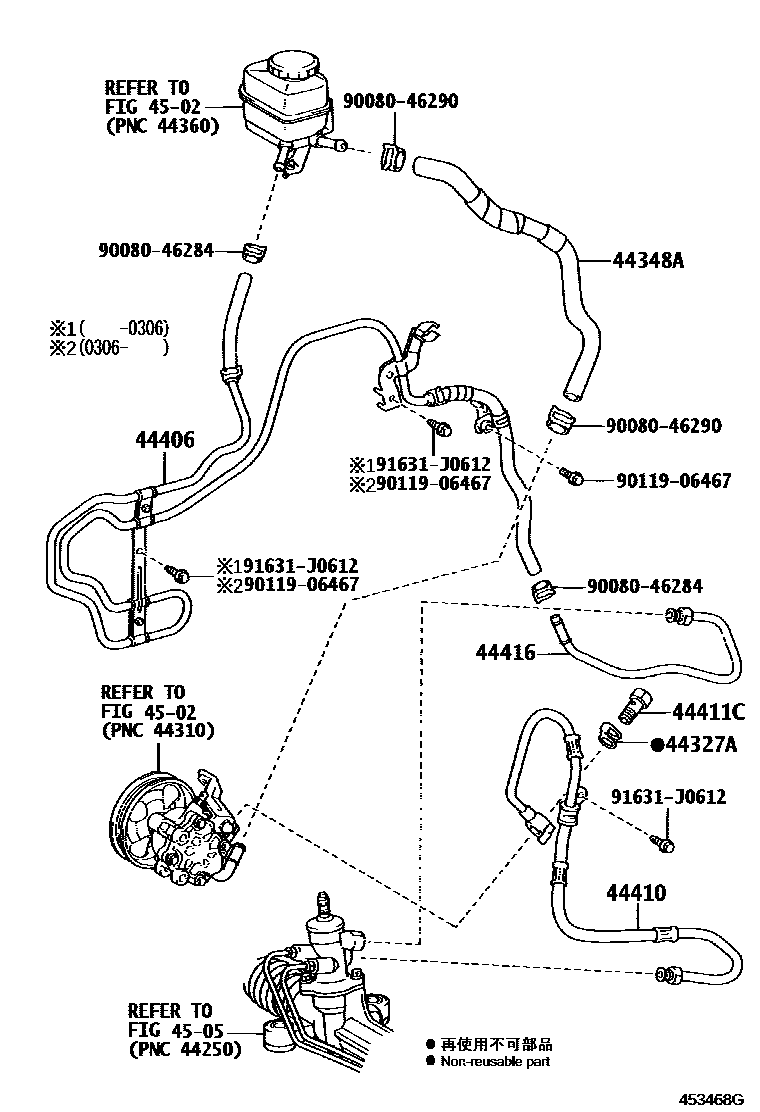

Toyota AVENSIS — POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAZT250200301-200604

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-05080iAZT250200301-200306

sub44348-05100

main44348-05100iAZT250200306-200604

44406TUBE SUB-ASSY, RETURN

main44406-05200iAZT250200301-200604

44410TUBE ASSY, PRESSURE FEED

main44410-05240iAZT250..LHD200301-200604

main44410-05250iAZT250..RHD200301-200604

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iAZT250200301-200604

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-05020iAZT250..RHD200301-200604

4502

4505

9008046284

main90080-46284

9008046290

main90080-46290

9011906467

main90119-06467

91631J0612

main91631-J0612

12 parts on this diagram · 2 diagrams in section
