Toyota AVENSIS — PARTIAL ENGINE ASSEMBLY

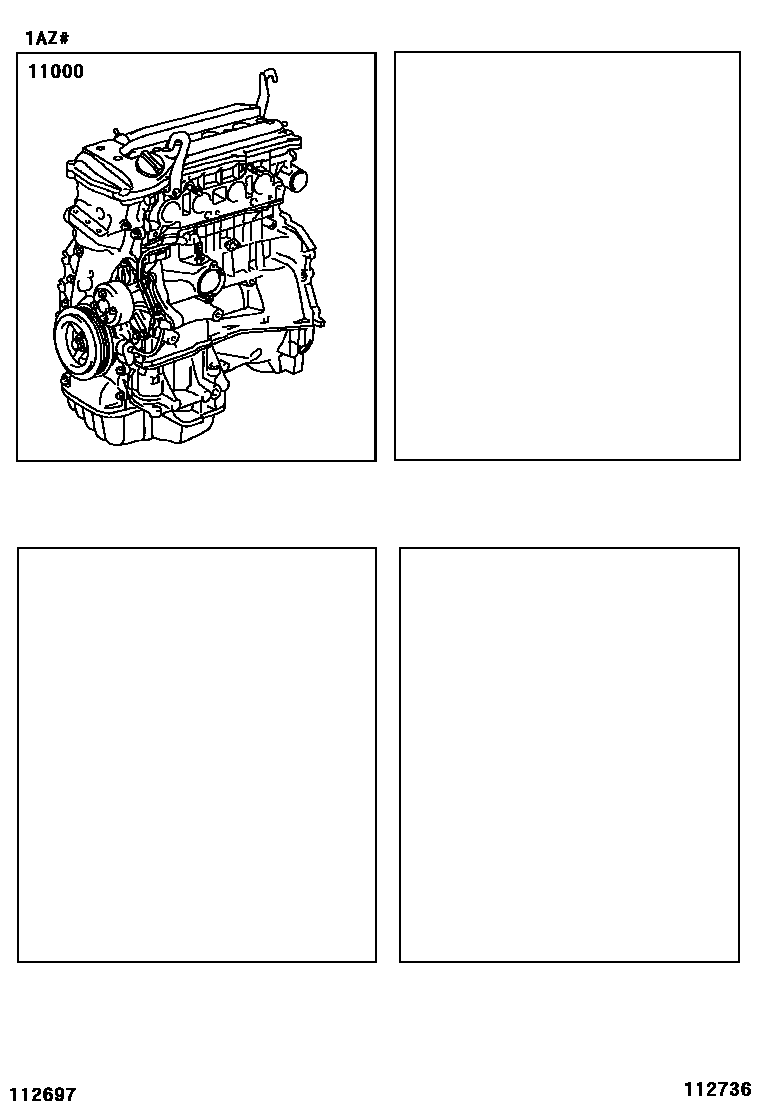

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-28290i200301-200608
main19000-28661i200608-200811

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota AVENSIS

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota AVENSIS. Key components include: ENGINE ASSY, PARTIAL.
