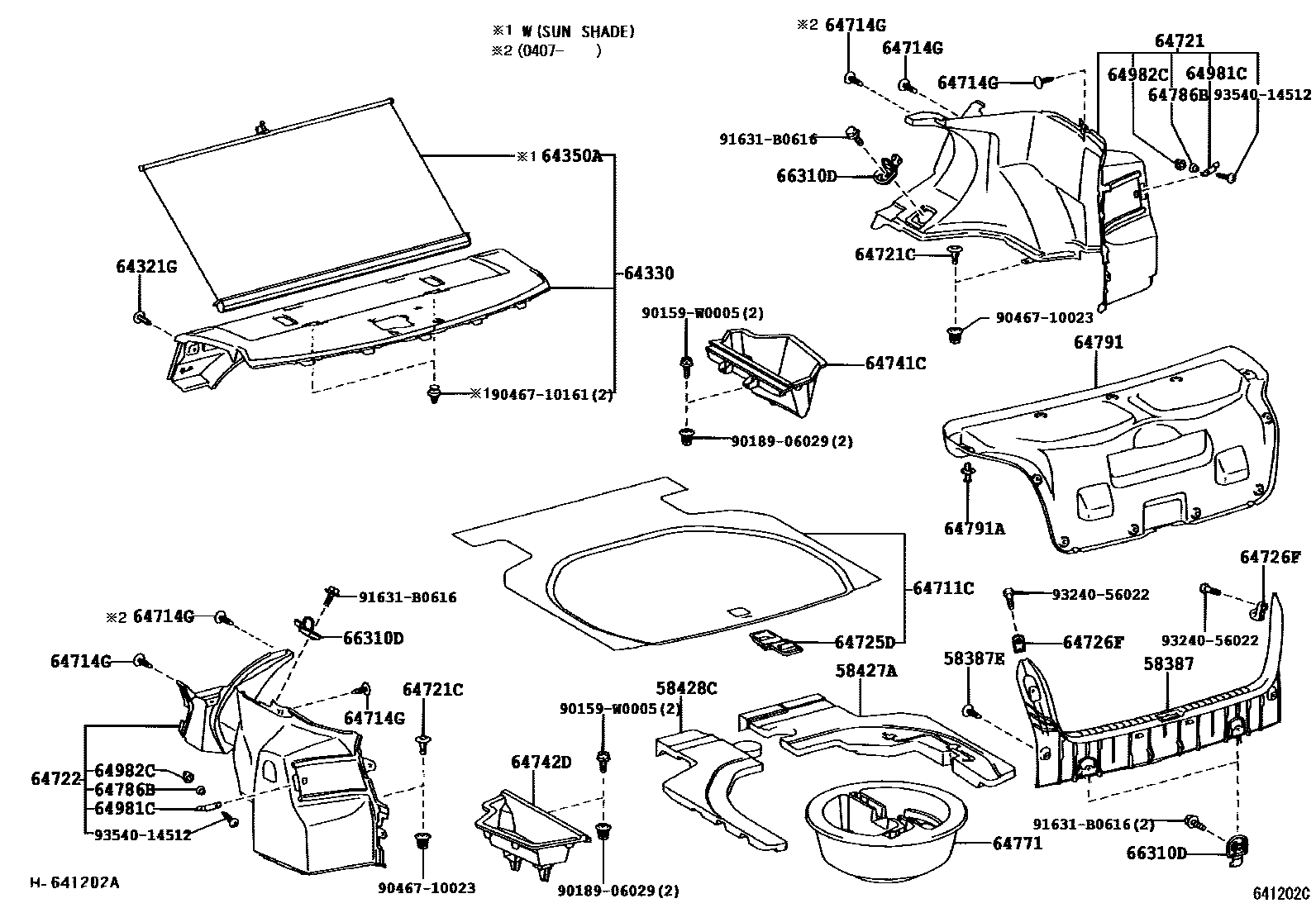

Toyota AVENSIS — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,4#
BLACK,TRIM0#,1#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58427ASPACER, REAR FLOOR BOARD
58428CSPACER, REAR FLOOR BOARD, NO.6
64321GCLIP(FOR PACKAGE TRIM SIDE)
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#,IVORY
DK.GRAY,TRIM1#,IVORY
64350ASHADE ASSY, REAR WINDOW
SUN SHADE-WITHOUT
64711CCARPET, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
BLACK,TRIM1#,4#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#
BLACK,TRIM1#,4#
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM0#,1#
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#
BLACK,TRIM1#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#,4#
64741CBOX, DECK SIDE TRIM, RH
64742DBOX, DECK SIDE TRIM, LH
64771COVER, SPARE WHEEL
64786BPLATE, JACK COVER
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#
BLACK,TRIM1#,4#
64791ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM0#,1#
BLACK,TRIM1#,4#
64981CSTOPPER, WASHER TANK COVER
64982CKNOB, WASHER TANK COVER
66310DHOOK ASSY, ROPE
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#,4#
90159W0005
main90159-W0005
9018906029
main90189-06029
9046710023
main90467-10023
9046710161
main90467-10161
91631B0616
main91631-B0616
9324056022
main93240-56022
9354014512
main93540-14512
30 parts on this diagram · 1 diagram in section
