Toyota AVENSIS — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28120i1AZFE..AZT250200301-200604

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0H040i1AZFE..AZT250200301-200604

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0H030i1AZFE..AZT250..5F200301-200507

sub12321-0H031

main12321-0H031i1AZFE..AZT250..5F200508-200604

main12321-28090i1AZFE..AZT250..4FC200301-200604

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0H020i1AZFE..AZT250..5F200301-200604

main12325-28200i1AZFE..AZT250..4FC200301-200604

12351DAMPER, ENGINE MOUNTING

main12351-0D020i1AZFE..AZT250200301-200604

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0D030i1AZFE..AZT250..5F200301-200604

main12351-27050i1AZFE..AZT250..4FC200301-200604

12351BDAMPER, ENGINE MOUNTING

main12351-0D020i1AZFE..AZT250..5F200301-200604

main12351-27050i1AZFE..AZT250..4FC200301-200604

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D110i1AZFE..AZT250..5F200301-200604

main12361-0D120i1AZFE..AZT250..4FC200301-200604

sub12361-22090

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0H030i1AZFE..AZT250200301-200604

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H050i1AZFE..AZT250200301-200604

9010510495

main90105-10495

9010510508

main90105-10508

9010512153

main90105-12153

90105W0063

main90105-W0063

90105W0075

main90105-W0075

90105W0076

main90105-W0076

9011610217

main90116-10217

9011910737

main90119-10737

90119W0090

main90119-W0090

90119W0091

main90119-W0091

9017908068

main90179-08068

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

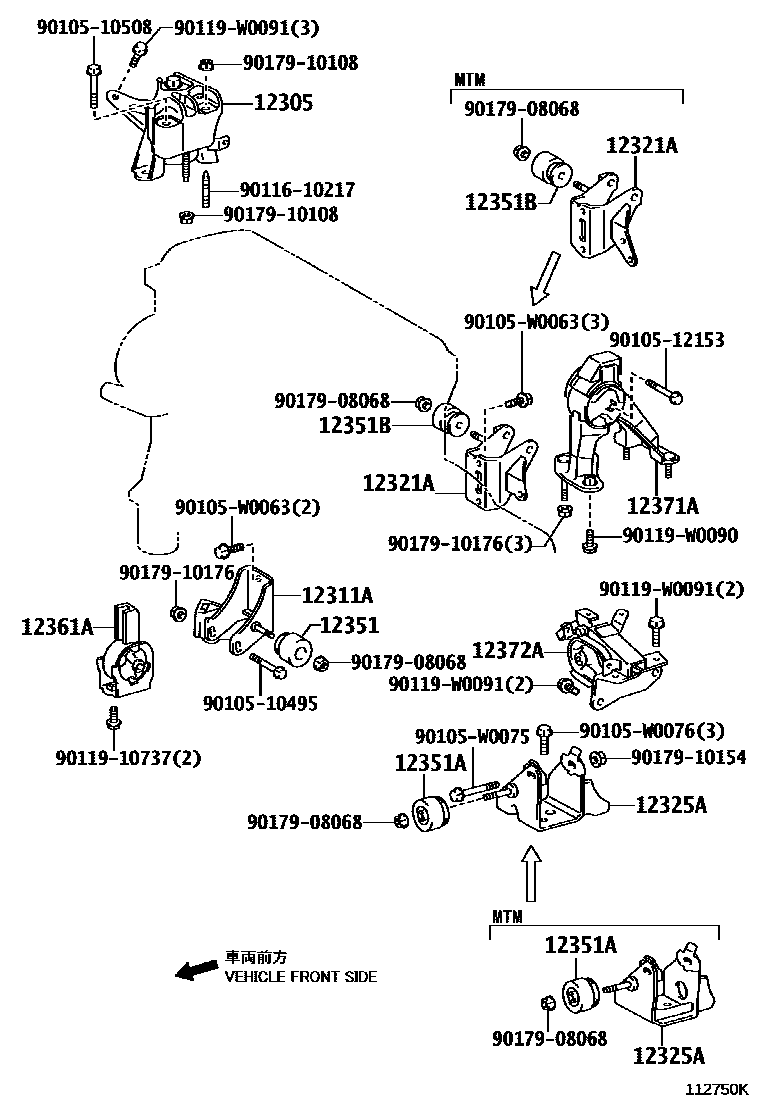

24 parts on this diagram · 1 diagram in section
