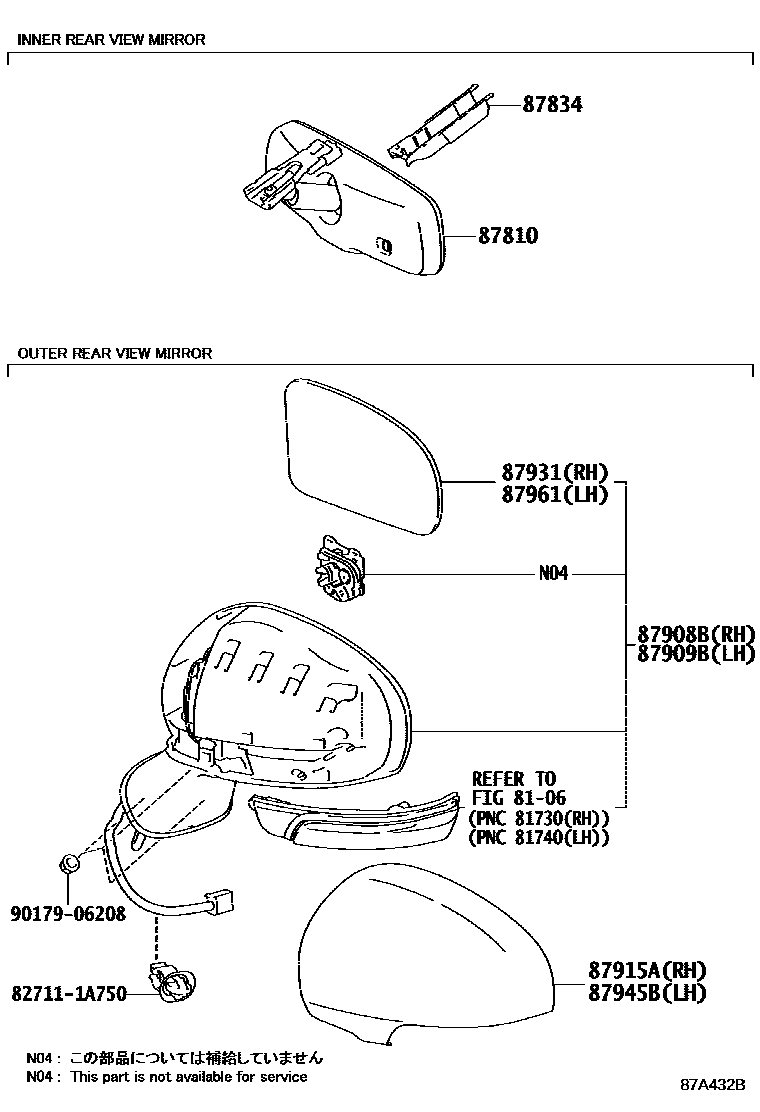

Toyota AVENSIS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY
87908BMIRROR SUB-ASSY, RH
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
GRAY ME.,1G6
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
DK.BLUE ME.,8U5
DK.PURPLE,9AK
SUPER WHITE 2,040 ,3R3
GRAY ME.,1G3 ,8S6
SILVER ME.,1F7
GRAY ME.,1G6
BLACK MC.,209
RED M.M.,3R3
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
DK.BLUE ME.,8U5
DK.PURPLE,9AK
87909BMIRROR SUB-ASSY, LH
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
GRAY ME.,1G6
DK. STEEL MC.,1H2
BLACK MC.,209
RED M.M.,3R3
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
DK.BLUE ME.,8U5
DK.PURPLE,9AK
SUPER WHITE 2,040 ,3R3
GRAY ME.,1G3 ,8S6
SILVER ME.,1F7
GRAY ME.,1G6
BLACK MC.,209
RED M.M.,3R3
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
DK.BLUE ME.,8U5
DK.PURPLE,9AK
87915ACOVER, OUTER MIRROR, RH
87931OUTER MIRROR, RH
87945BCOVER, OUTER MIRROR, LH
87961MIRROR OUTER, LH
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9017906208
main90179-06208
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota AVENSIS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota AVENSIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
