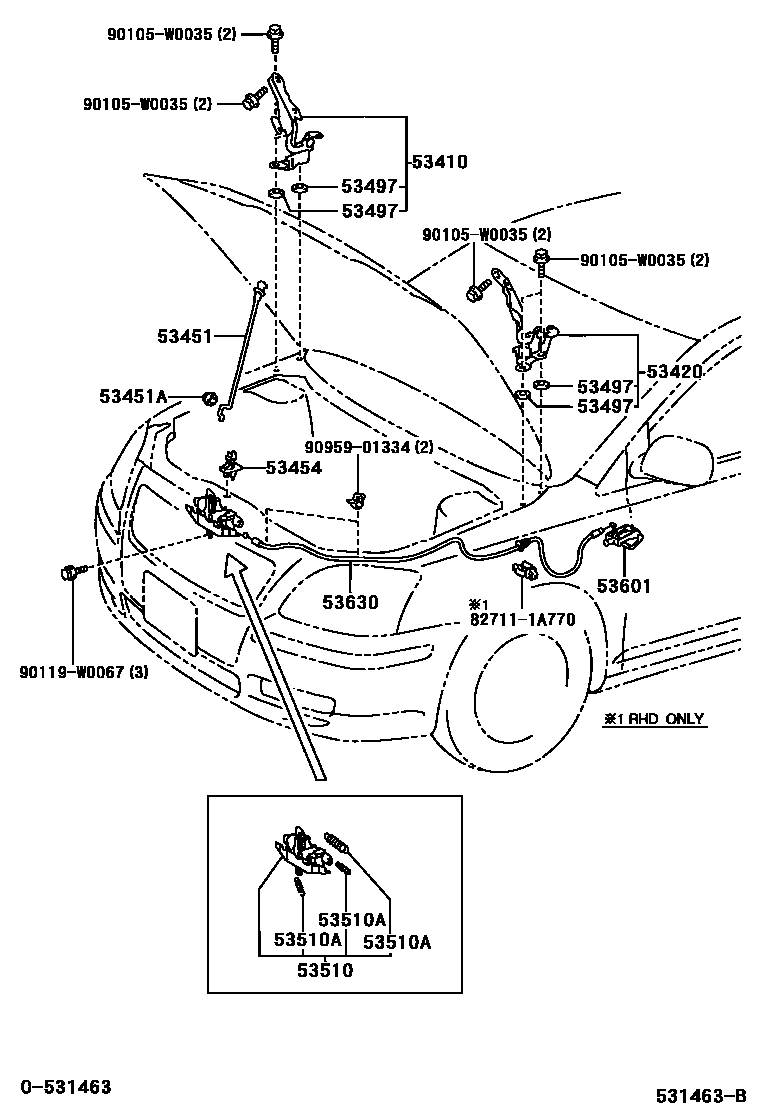

Toyota AVENSIS — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-05060iAZT250200301-200604

53420HINGE ASSY, HOOD, LH

main53420-05060iAZT250200301-200604

53451ROD, HOOD SUPPORT

main53440-05020iAZT250200301-200604

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15035iAZT250200301-200604

53454CLIP, HOOD SUPPORT ROD

main53454-20020iAZT250200301-200604

53497PAD, HOOD HINGE, NO.1

main53497-05010iAZT250200301-200604

T=1.0

53510LOCK ASSY, HOOD

main53510-05050iAZT250..LHD200301-200604

main53510-05070iAZT250..RHD200301-200604

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50265iAZT250200301-200604

WD=1.2,CW=8.5

sub90506-12063

main90080-50266iAZT250200301-200604

WD=0.9,CW=20.75

main90080-50365iAZT250200301-200604

WD=1.8,CW=16

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-A0iAZT250200301-200604

IVORY,TRIM0#

sub53601-05030

main53601-05030-B0iAZT250200301-200604

DK.GRAY,TRIM1#

sub53601-05030

main53601-05030-E0iAZT250200604

GREGE,TRIM4#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-05040iAZT250..LHD200301-200611

sub53630-20640

main53630-05050iAZT250..RHD200301-200611

sub53630-20650

main53630-20640iAZT250..LHD200612

main53630-20650iAZT250..RHD200612

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

90105W0035

main90105-W0035

90119W0067

main90119-W0067

9095901334

main90959-01334

14 parts on this diagram · 1 diagram in section
