Toyota AVENSIS — HEATING & AIR CONDITIONING - WATER PIPING

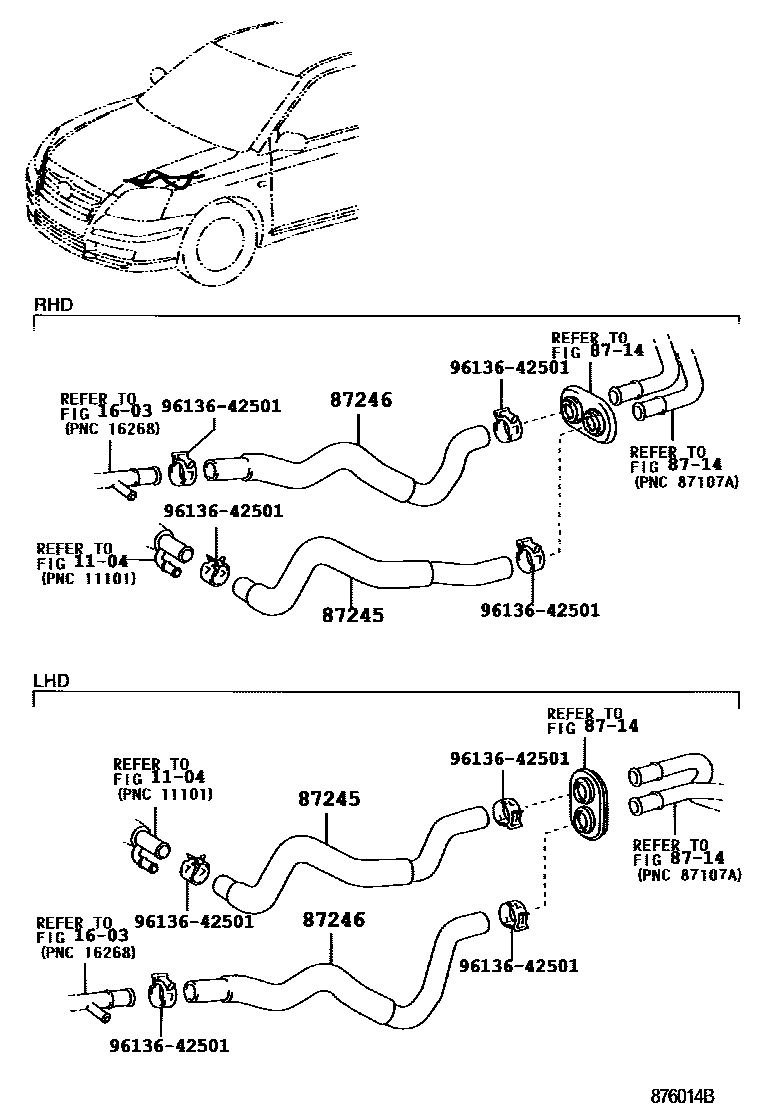

Parts diagram

1104

1603

8714

87245HOSE, HEATER WATER, INLET

main87245-05410i200301-200604

main87245-05430i200301-200604

87246HOSE, HEATER WATER, OUTLET

main87245-05420i200301-200604

main87245-05440i200301-200604

9613642501

main96136-42501

6 parts on this diagram · 1 diagram in section
