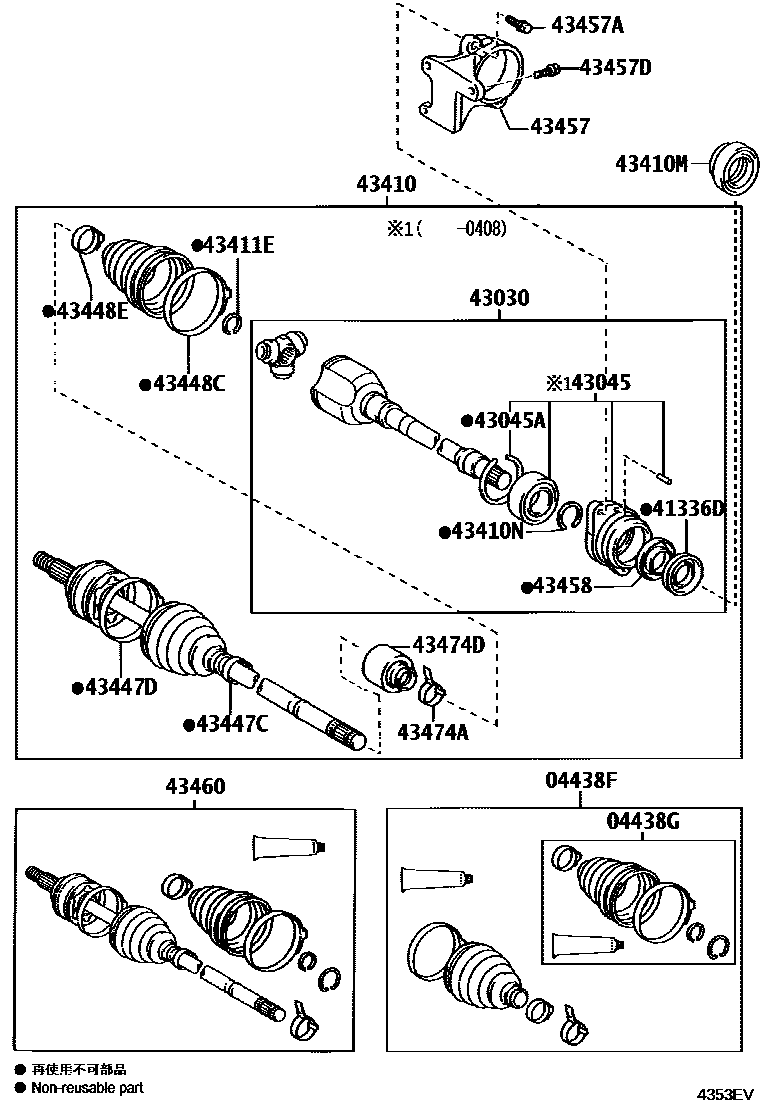

Toyota AVENSIS — FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43045CASE SUB ASSY, DRIVE SHAFT BEARING
sub43045-64020
43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43410SHAFT ASSY, FRONT DRIVE, RH
sub43410-05351
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458COVER, FRONT DRIVE SHAFT DUST
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
43474DDAMPER, FRONT DRIVE SHAFT, RH
21 parts on this diagram · 2 diagrams in section
