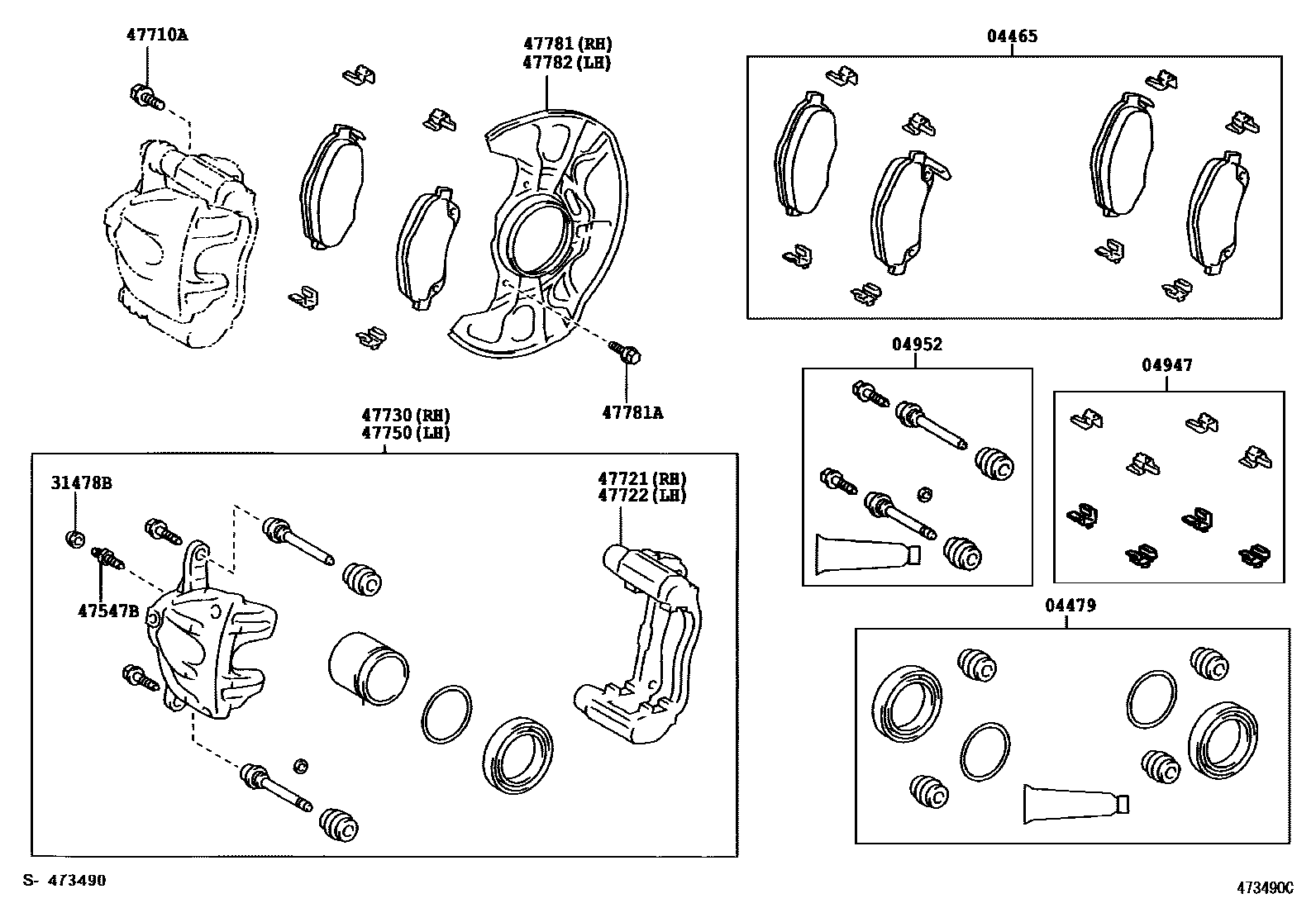

Toyota AVENSIS — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-05140iAZT250200301-200311

MARK PAGID 660

sub04465-05131

main04465-05210iAZT250200311-200809

MARK PAGID 660

sub04465-05270

main04465-05270iAZT250200809

MARK PAGID 660

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-05010iAZT250200310-200311

sub04478-05050

main04478-05090iAZT250200311-200604

main04479-05050iAZT250200301-200310

sub04478-05050

04947FITTING KIT, DISC BRAKE, FRONT

main04947-05040iAZT250200301-200811

sub04947-05050

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-09020iAZT250200301-200604

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-05030iAZT250200301-200604

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05020iAZT250200301-200604

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAZT250200301-200604

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-05050iAZT250200301-200604

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-05020iAZT250200301-200604

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-05050iAZT250200301-200604

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-05050iAZT250200301-200604

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-05030iAZT250200301-200604

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iAZT250200301-200604

(L)

main90119-06227iAZT250200301-200604

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-05030iAZT250200301-200604

14 parts on this diagram · 1 diagram in section
