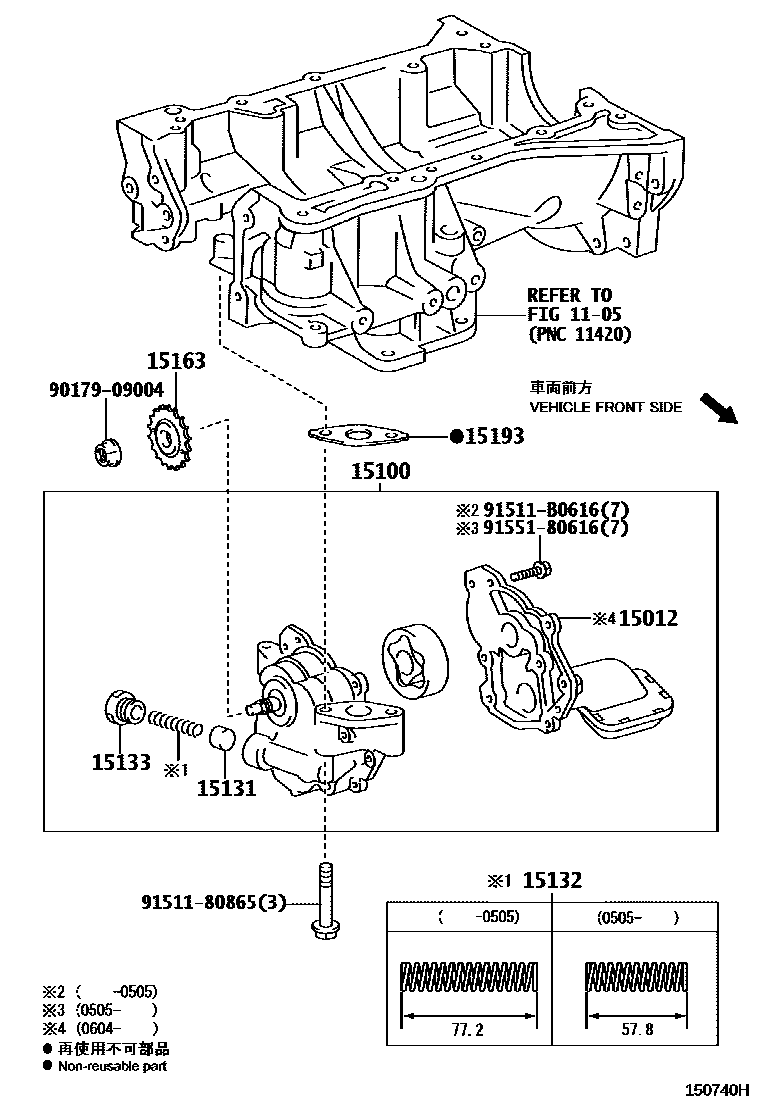

Toyota AVENSIS — ENGINE OIL PUMP

1105

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i1AZFE..AZT250200604

15100PUMP ASSY, OIL

main15100-28030i1AZFE..AZT250200301-200604

15131VALVE, OIL PUMP RELIEF

main15131-46040i1AZFE..AZT250200301-200604

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i1AZFE..AZT250200301-200505

main15132-46020i1AZFE..AZT250200505-200604

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1AZFE..AZT250200301-200604

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFE..AZT250200301-200604

15193GASKET, OIL PUMP

main15193-28010i1AZFE..AZT250200301-200604

9017909004

main90179-09004

9151180865

main91511-80865

91511B0616

main91511-B0616

9155180616

main91551-80616

12 parts on this diagram · 1 diagram in section
