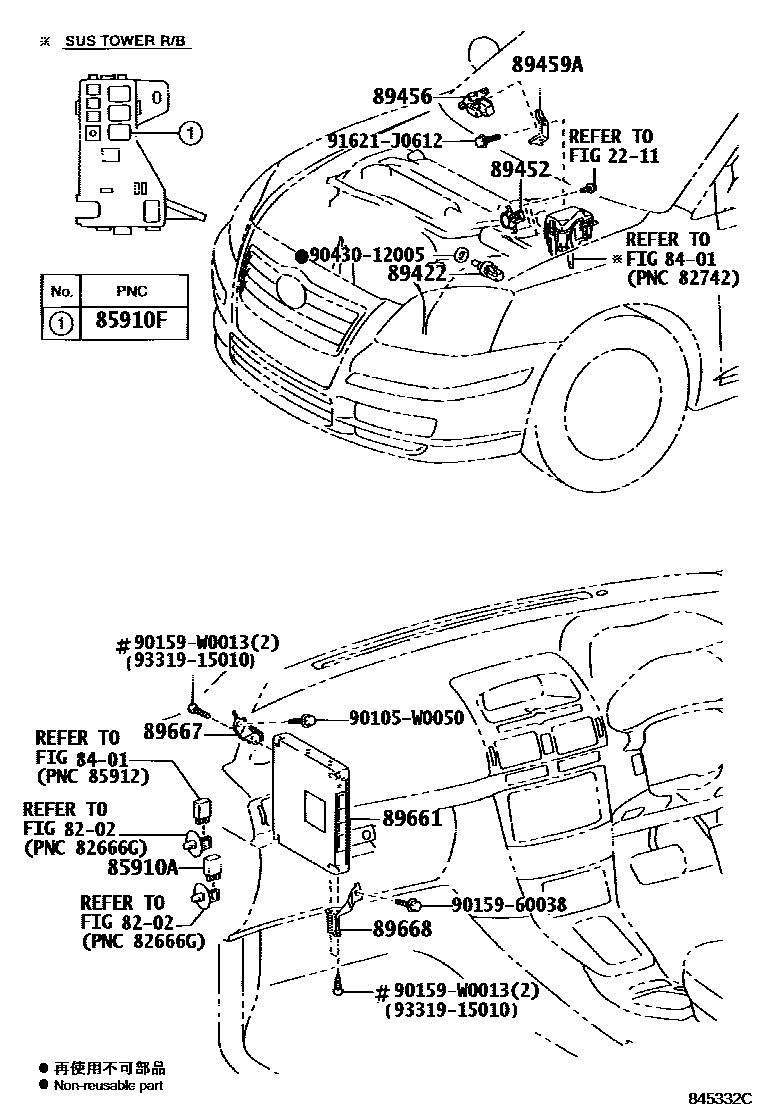

Toyota AVENSIS — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211

8202

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87019iAZT250200301-200604

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87019iAZT250200301-200604

sub90080-87021

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAZT250200301-200604

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iAZT250200301-200604

89456RESISTOR, VARIABLE

main89456-30010iAZT250200301-200604

89459ABRACKET, VARIABLE RESISTOR

main89459-20041iAZT250200301-200604

89661COMPUTER, ENGINE CONTROL

main89661-05720iAZT250..5F200301-200604

main89661-05730iAZT250..4FC200301-200604

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-05070iAZT250..RHD200301-200604

main89667-05080iAZT250..LHD200301-200604

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-05100iAZT250..RHD200301-200604

main89668-05110iAZT250..LHD200301-200604

90105W0050

main90105-W0050

9015960038

main90159-60038

90159W0013

main90159-W0013

9043012005

main90430-12005

91621J0612

main91621-J0612

9331915010

main93319-15010

18 parts on this diagram · 2 diagrams in section
