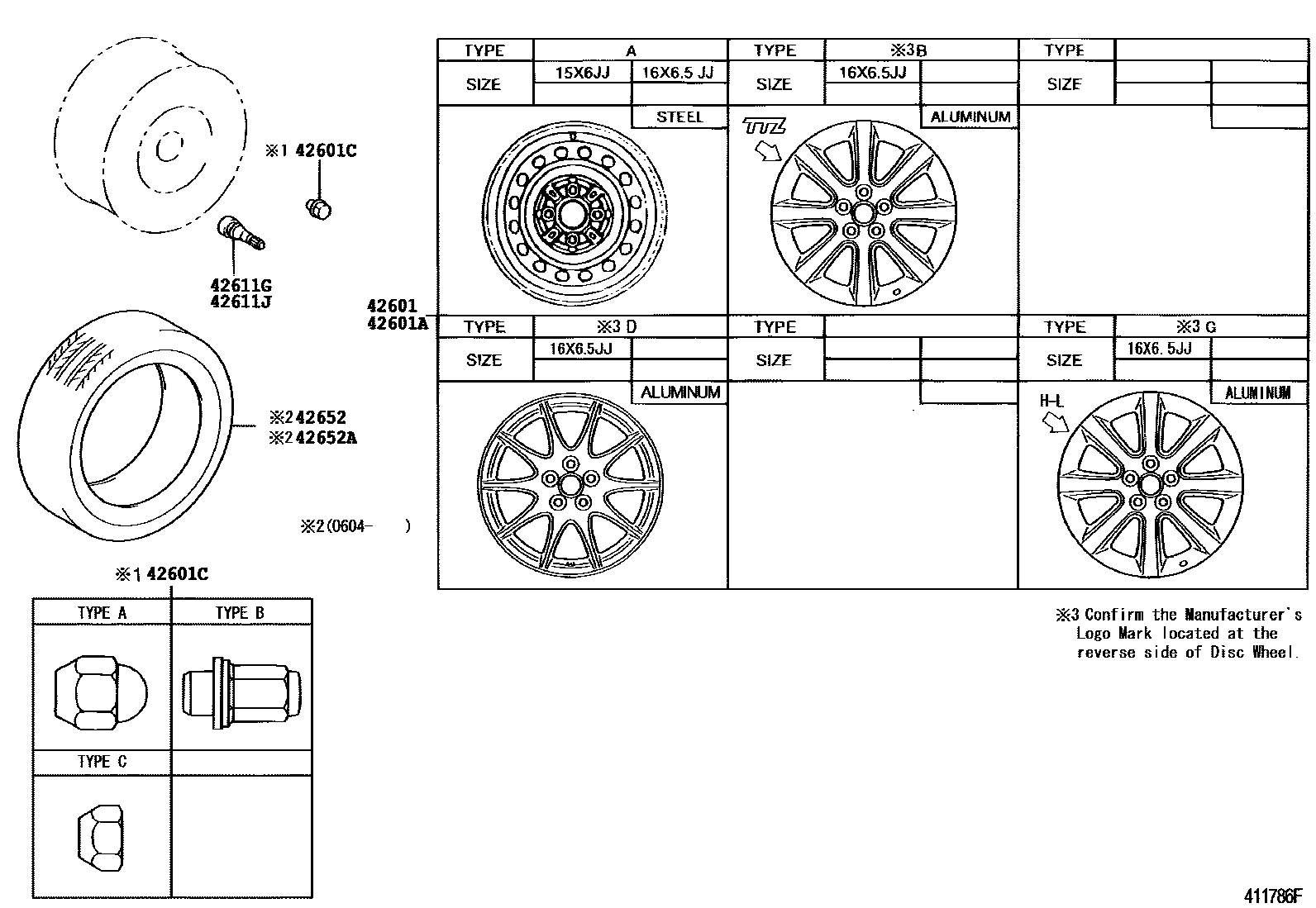

Toyota AVENSIS — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-05120iAZT250200301-200811

15X6JJ,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-05120iAZT250200301-200811

15X6JJ,#,TYPE A:REFER ILLUST.

main42611-05130iAZT250200301-200408

16X6.5JJ,#,205/55R16 LIGHT ALUMI,TYPE A:REFER ILLUST.

sub42611-05270

main42611-05130iAZT250200301-200408

16X6.5JJ,#,205/55R16 STEEL,TYPE A:REFER ILLUST.

sub42611-05270

main42611-05130iAZT250200301-200408

16X6.5JJ,#,205/55R16 ALUMI,TYPE A:REFER ILLUST.

sub42611-05270

main42611-05270iAZT250200604-200811

16X6.5JJ,#,TIRE & DISK WHEEL-205/55R16 ALUMI,TYPE A:REFER ILLUST.

main42611-05270iAZT250200604-200811

16X6.5JJ,#,TIRE & DISK WHEEL-205/55R16 LIGHT ALUMI,TYPE A:REFER ILLUST.

main42611-05270iAZT250200604-200811

16X6.5JJ,#,TIRE & DISK WHEEL-205/55R16 STEEL,TYPE A:REFER ILLUST.

main42611-05270iAZT250200408-200604

16X6.5JJ,#,205/55R16 ALUMI,TYPE A:REFER ILLUST.

main42611-05270iAZT250200408-200604

16X6.5JJ,#,205/55R16 LIGHT ALUMI,TYPE A:REFER ILLUST.

main42611-05270iAZT250200408-200604

16X6.5JJ,#,205/55R16 STEEL,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01021iAZT250200301-200604

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAZT250200301-200811

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAZT250200301-200811

42652TIRE

main42652-CA031iAZT250200604-200811

195/65R15,*D/L

42652ATIRE (FOR SPARE)

main42652-CA031iAZT250200604-200811

195/65R15,*D/L

7 parts on this diagram · 4 diagrams in section
