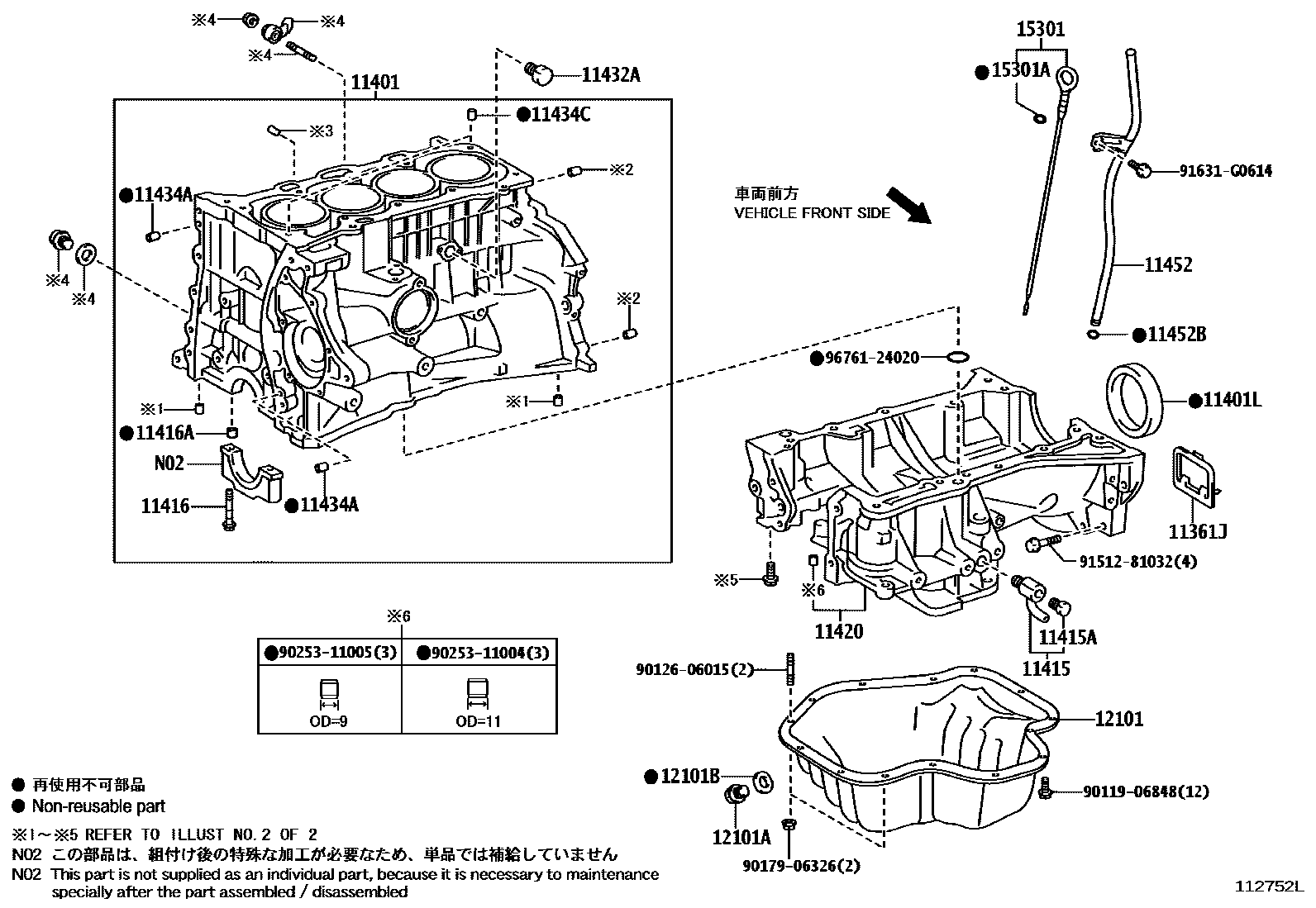

Toyota AVENSIS — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401LSEAL, ENGINE REAR OIL
sub90311-89007
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
sub90910-02206
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=14
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301ARING, O(FOR OIL LEVEL GAGE)
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025311004
main90253-11004
9025311005
main90253-11005
9151281032
main91512-81032
91631G0614
main91631-G0614
9676124020
main96761-24020
26 parts on this diagram · 2 diagrams in section
