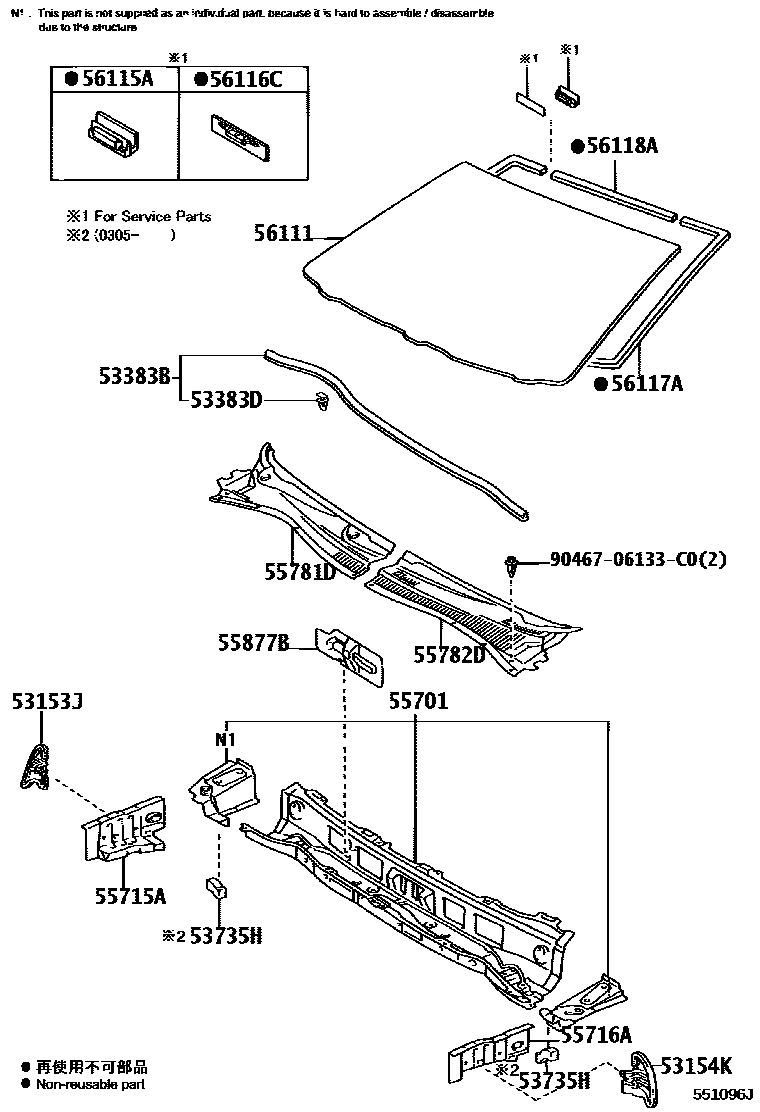

Toyota AVENSIS — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-20010iAZT250200412-200604

53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-20010iAZT250200412-200604

53383BSEAL, HOOD TO COWL TOP

main53383-05030iAZT250200301-200604

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108iAZT250200301-200811

53735HSEAL, FRONT FENDER APRON, UPPER

main53735-05010iAZT250200305-200604

55701PANEL SUB-ASSY, COWL

main55700-05100iAZT250..RHD200508-200604

main55700-05220iAZT250..RHD200301-200507

sub55700-05100

main55700-05230iAZT250..LHD200301-200507

main55700-05240iAZT250..LHD200508-200604

55715ABRACE, COWL TOP TO APRON, RH

main55715-05020iAZT250200301-200604

55716ABRACE, COWL TOP TO APRON, LH

main55716-05020iAZT250200301-200604

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-05060iAZT250..LHD200301-200305

sub55781-05061

sub53735-05010

main55781-05061iAZT250..LHD200305-200604

main55781-05080iAZT250..RHD200301-200305

sub55781-05081

sub53735-05010

main55781-05081iAZT250..RHD200305-200604

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-05040iAZT250..LHD200301-200305

sub55782-05041

sub53735-05010

main55782-05041iAZT250..LHD200305-200604

main55782-05060iAZT250..RHD200301-200305

sub55782-05061

sub53735-05010

main55782-05061iAZT250..RHD200305-200604

55877BCOVER, COWL VENT, RH

main55877-20060iAZT250..RHD200301-200604

56111GLASS, WINDSHIELD

main56101-05101iAZT250200504-200604

*LAM,T=4.96,GREEN

main56101-05150iAZT250200301-200504

*LAM,T=4.96,GREEN

sub56101-05101

main56101-05280iAZT250200604

*LAM,T=4.96,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAZT250200301-200604

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZT250200301-200604

56117ADAM, WINDOW GLASS ADHESIVE

main56117-20270iAZT250200301-200604

L=3422

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-20090iAZT250200301-200604

L=654

sub56117-52040

9046706133C0

main90467-06133C0

17 parts on this diagram · 2 diagrams in section
