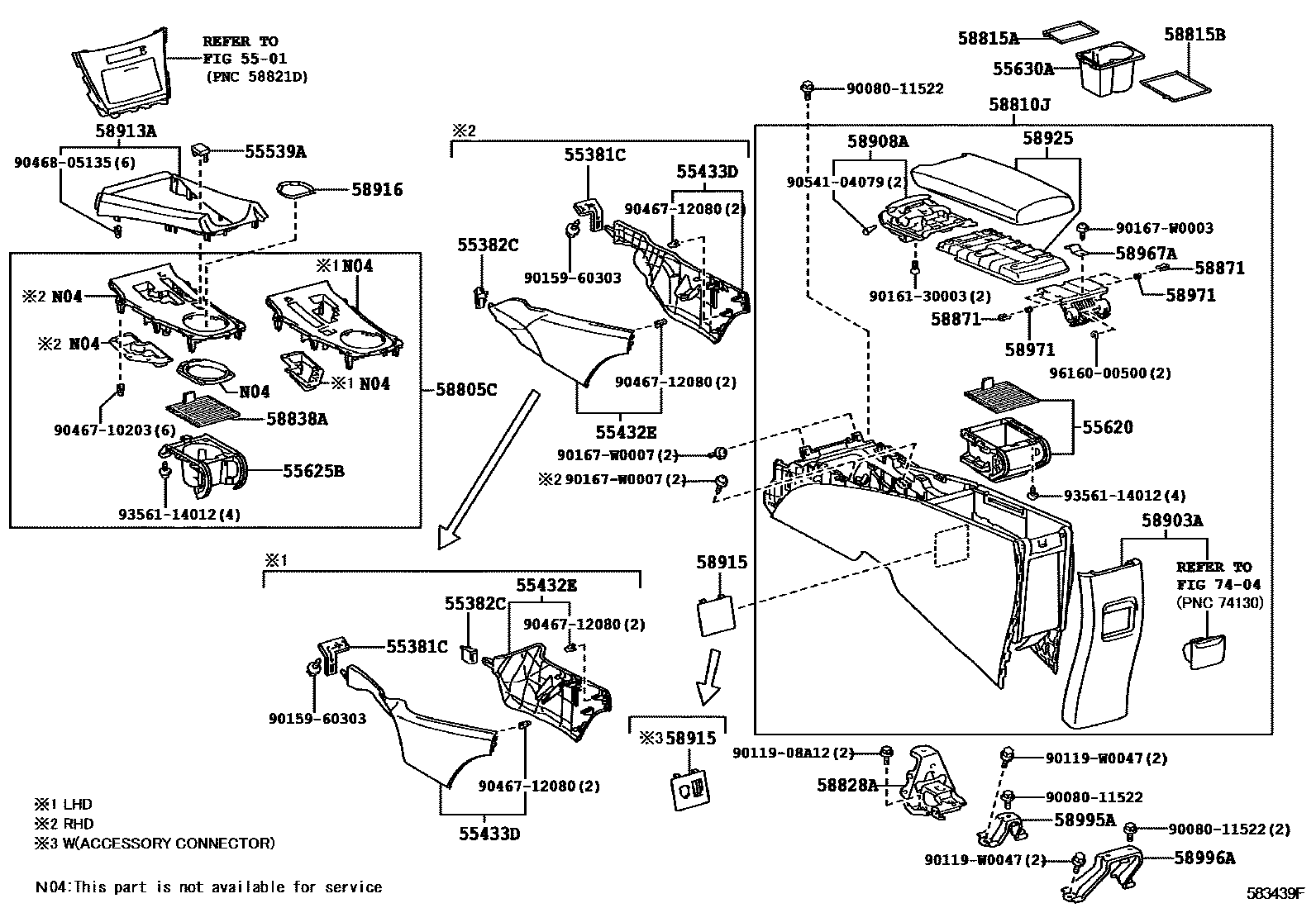

Toyota AVENSIS — CONSOLE BOX & BRACKET
5501
55381CBRACKET, FINISH PANEL MOUNTING, NO.1
55382CBRACKET, FINISH PANEL MOUNTING, NO.2
55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
55539ACOVER, SPARE SWITCH HOLE
55620HOLDER ASSY, INSTRUMENT PANEL CUP
BLACK,TRIM2#,4#
55625BTRAY, INSTRUMENT PANEL CUP HOLDER
55630AHOLDER, REAR CONSOLE BOX, CUP
BLACK,TRIM2#,4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#,4#
58815ACARPET, CONSOLE BOX
58815BCARPET, CONSOLE BOX
58828ABRACKET, CONSOLE BOX, LOWER
58838ADOOR, CONSOLE CUP HOLDER BOX
58871CUSHION, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#,4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#,4#
58913APANEL, BOX, NO.3
BLACK,TRIM2#,4#
58915PANEL, BOX BOTTOM
AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER),BLACK,TRIM2#,4#
58916MAT, BOX BOTTOM
58925LID, REAR CONSOLE ARMREST
BLACK,TRIM2#,4#
58967ASPRING, CONSOLE DOOR STOPPER
58971LOCK, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9008011522
main90080-11522
9011908A12
main90119-08A12
90119W0047
main90119-W0047
9015960303
main90159-60303
9016130003
main90161-30003
90167W0003
main90167-W0003
90167W0007
main90167-W0007
9046710203
main90467-10203
9046712080
main90467-12080
9046805135
main90468-05135
9054104079
main90541-04079
9356114012
main93561-14012
9616000500
main96160-00500
40 parts on this diagram · 1 diagram in section
