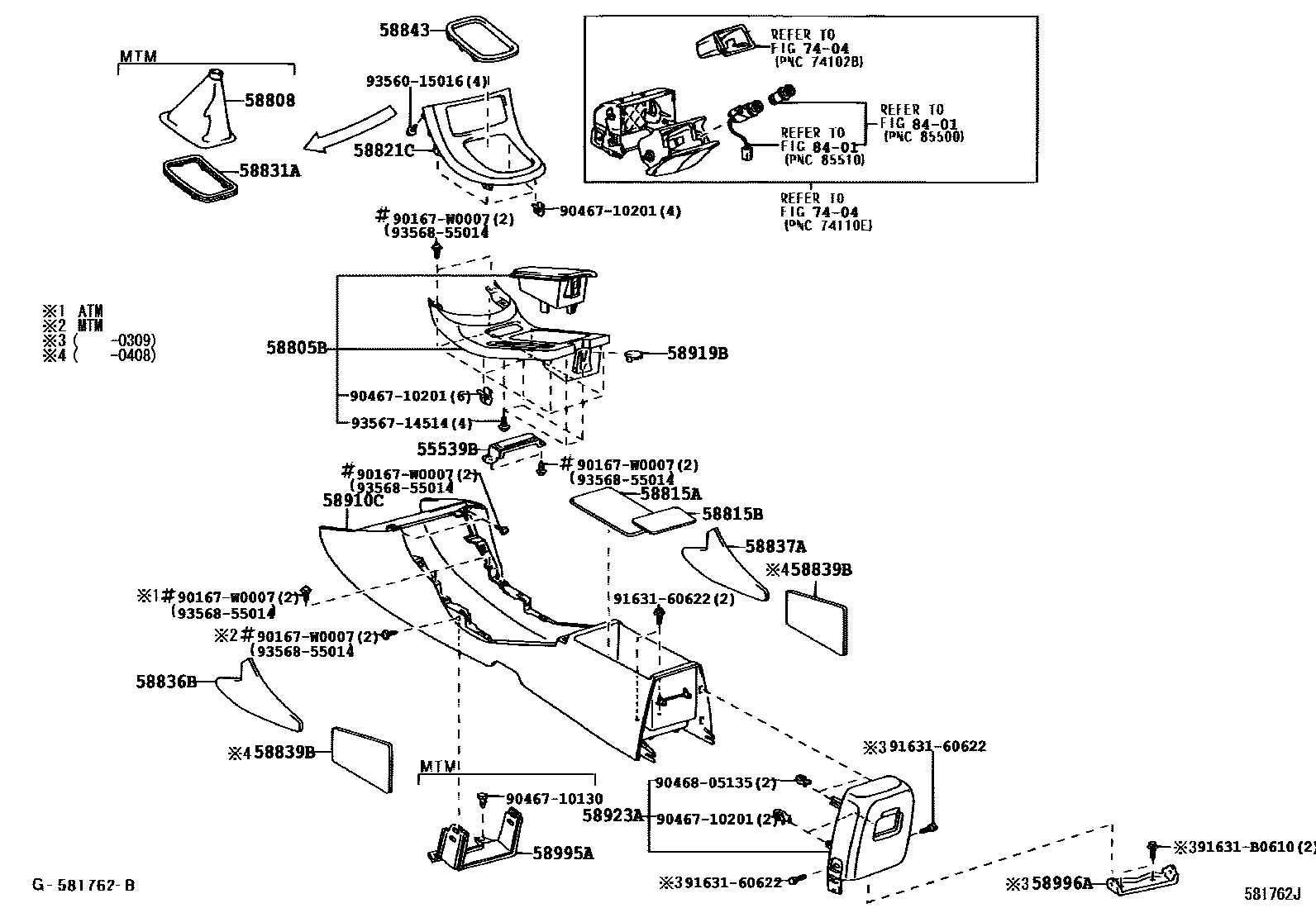

Toyota AVENSIS — CONSOLE BOX & BRACKET

0001 1 0002 1

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-05070-A0iAZT250..LHD200301-200604

IVORY,TRIM0#

main55539-05070-B0iAZT250..LHD200604

DK.GRAY,TRIM1#

main55539-05070-E0iAZT250..LHD200604

GREGE,TRIM4#

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-05010-A0iAZT250..LHD200301-200603

IVORY,TRIM0#

main58805-05010-B0iAZT250..LHD200604-200605

DK.GRAY,TRIM1#

main58805-05010-E0iAZT250..LHD200604-200605

GREGE,TRIM4#

main58805-05011-B0iAZT250..LHD200605-200608

DK.GRAY,TRIM1#

main58805-05011-E0iAZT250..LHD200605-200608

GREGE,TRIM4#

main58805-05012-B0iAZT250..LHD200609

DK.GRAY,TRIM1#

main58805-05012-E0iAZT250..LHD200609

GREGE,TRIM4#

main58805-05030-A0iAZT250..RHD200301-200303

IVORY,TRIM0#

main58805-05030-B0iAZT250..RHD200301-200303

DK.GRAY,TRIM1#

main58805-05031-A0iAZT250..RHD200303-200603

IVORY,TRIM0#

main58805-05031-B0iAZT250..RHD200303-200603

DK.GRAY,TRIM1#

main58805-05031-E0iAZT250..RHD200604-200605

GREGE,TRIM4#

main58805-05032-B0iAZT250..RHD200605-200608

DK.GRAY,TRIM1#

main58805-05032-E0iAZT250..RHD200605-200608

GREGE,TRIM4#

main58805-05033-B0iAZT250..RHD200609

DK.GRAY,TRIM1#

main58805-05033-E0iAZT250..RHD200609

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-05070iAZT250..5F200301-200604

58815ACARPET, CONSOLE BOX

main58815-05010iAZT250200301-200604

58815BCARPET, CONSOLE BOX

main58815-05020iAZT250200301-200604

58821CPANEL, CONSOLE, UPPER

main58821-05010iAZT250200301-200407

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-05010iAZT250..5F200604

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-05010iAZT250200301-200604

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-05010iAZT250200301-200604

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58849-05010×2iAZT250200301-200408

58843BEZEL, SHIFTING HOLE

main58843-05050iAZT250..4FC200301-200604

58910CBOX ASSY, CONSOLE, REAR

main58911-05070-A0iAZT250200301-200604

IVORY,TRIM0#

main58911-05070-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main58911-05070-E0iAZT250200604

GREGE,TRIM4#

58919BPLATE, CONSOLE BOX

main58919-05010-A0iAZT250200301-200604

IVORY,TRIM0#

main58919-05010-B0iAZT250200301-200604

DK.GRAY,TRIM1#

58923APANEL, CONSOLE REAR END

main58923-05010-A0iAZT250200301-200604

IVORY,TRIM0#

main58923-05010-B0iAZT250200301-200604

DK.GRAY,TRIM1#

main58923-05020-B0iAZT250200604

DK.GRAY,TRIM1#

main58923-05020-E0iAZT250200604

GREGE,TRIM4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-05030iAZT250..5F200301-200604

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-05020iAZT250200301-200305

main58996-05030iAZT250200305-200309

7404

8401

90167W0007

main90167-W0007

9046710130

main90467-10130

9046710201

main90467-10201

9046805135

main90468-05135

9163160622

main91631-60622

91631B0610

main91631-B0610

9356015016

main93560-15016

9356714514

main93567-14514

9356855014

main93568-55014

27 parts on this diagram · 2 diagrams in section
