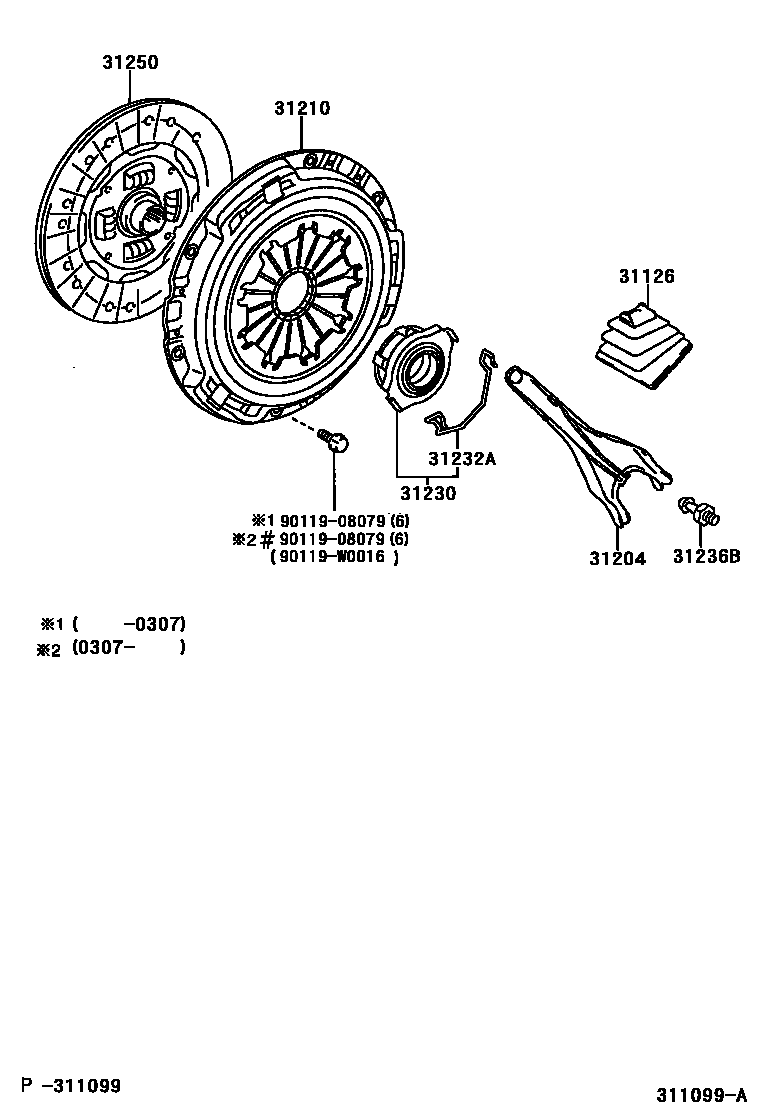

Toyota AVENSIS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010i200301-200604

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100i200301-200604

31210COVER ASSY, CLUTCH

main31210-05033i200301-200604

31230BEARING ASSY, CLUTCH RELEASE

main31230-05030i200301-200604

31232ACLIP, RELEASE BEARING HUB

main31232-05010i200301-200604

31236BSUPPORT, RELEASE FORK

main31236-20060i200301-200604

31250DISC ASSY, CLUTCH

main31250-05080i200301-200407

main31250-05081i200408-200604

9011908079

main90119-08079

90119W0016

main90119-W0016

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota AVENSIS

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota AVENSIS. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
