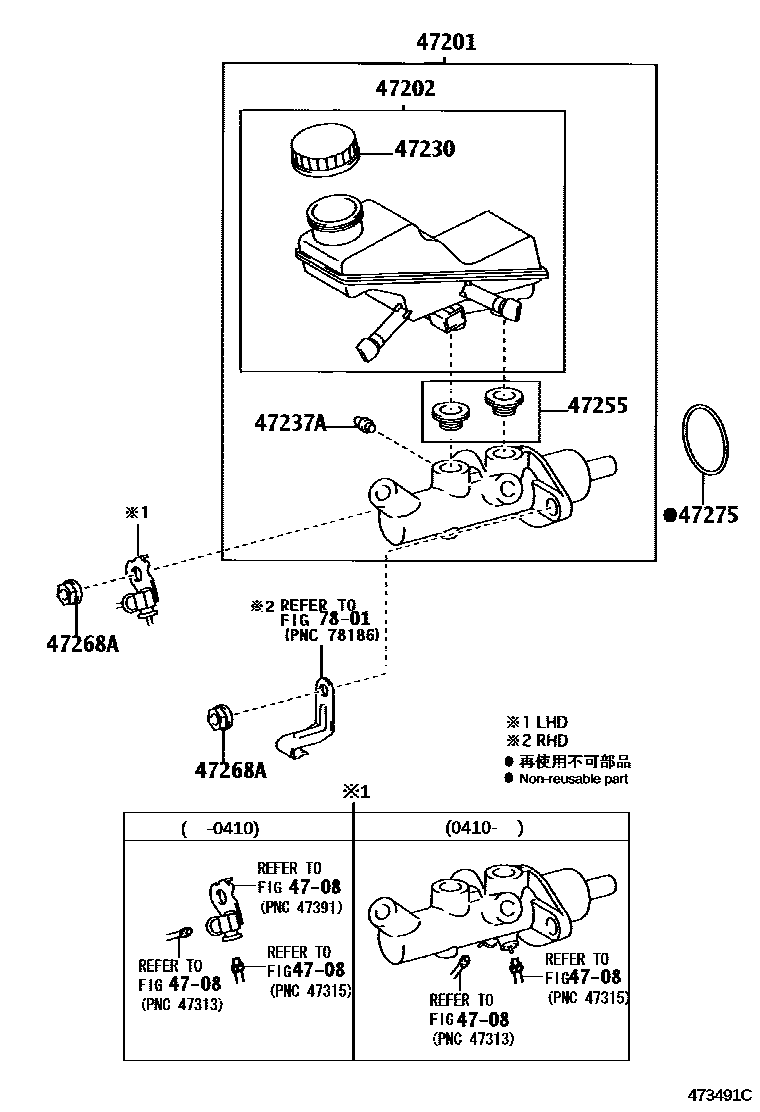

Toyota AVENSIS — BRAKE MASTER CYLINDER

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-05090iAZT250..LHD200301-200409

sub47201-05091

main47201-05091iAZT250..LHD200410-200711

sub47201-05092

main47201-05092iAZT250..LHD200712

main47201-05100iAZT250..RHD200301-200711

sub47201-05101

main47201-05101iAZT250..RHD200712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-05050iAZT250..LHD200301-200604

main47220-05060iAZT250..RHD200301-200604

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iAZT250200301-200604

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-0D010iAZT250200301-200604

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09010iAZT250200301-200604

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iAZT250200301-200604

47275GASKET, BRAKE MASTER CYLINDER

main47275-05020iAZT250200301-200604

7801

9 parts on this diagram · 1 diagram in section
