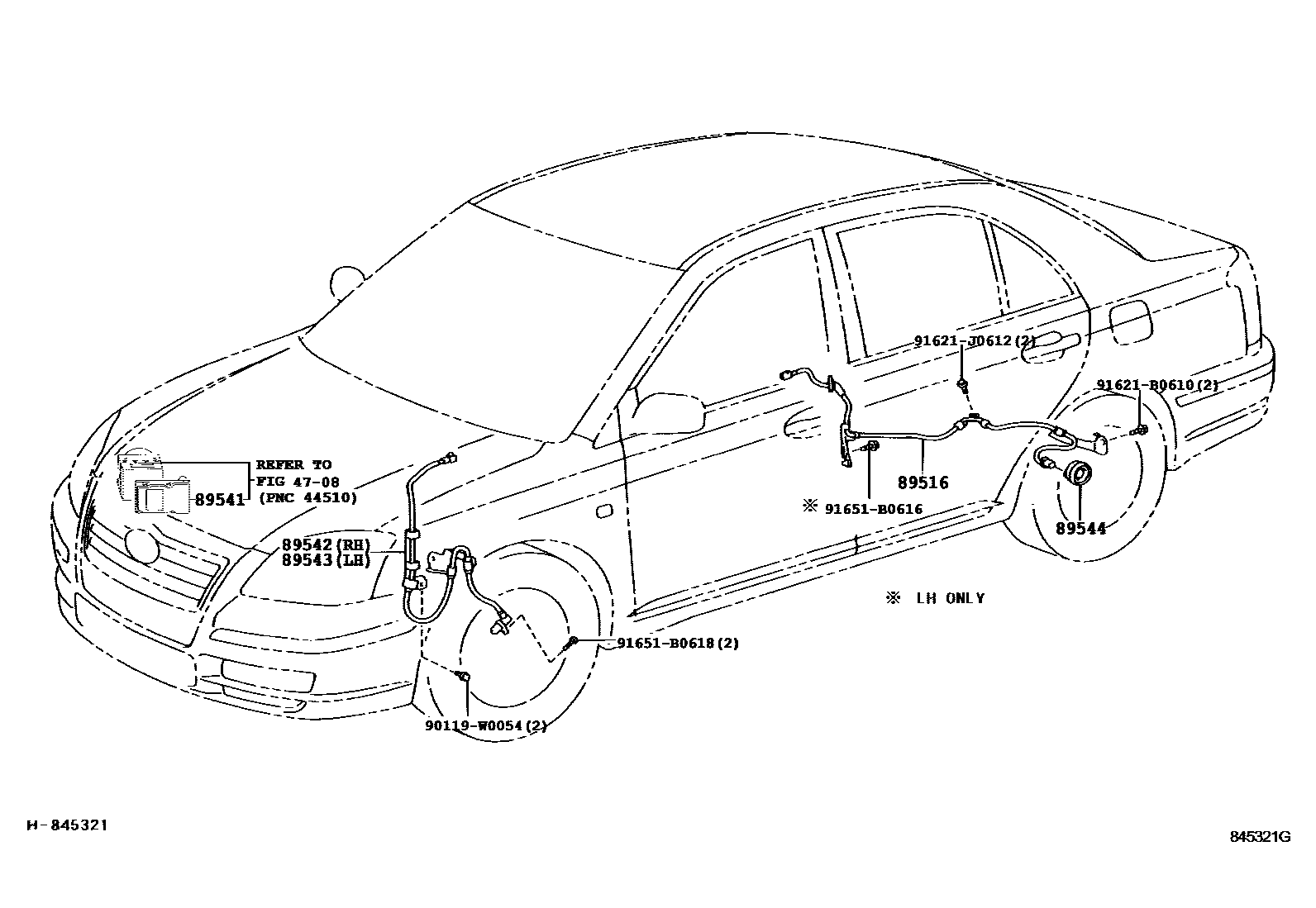

Toyota AVENSIS — ABS & VSC

4708

89516WIRE, SKID CONTROL SENSOR

main89516-05010iAZT250200301-200604

RH

main89516-05030iAZT250200301-200604

LH

89541COMPUTER, SKID CONTROL

main89541-05060iAZT250200301-200305

main89541-05062iAZT250200305-200604

89542SENSOR, SPEED, FRONT RH

main89542-02040iAZT250200301-200604

89543SENSOR, SPEED, FRONT LH

main89543-02040iAZT250200301-200604

89544SENSOR, SKID CONTROL

main89544-02010iAZT250200507-200604

(L)

main89544-02010iAZT250200301-200507

main89544-32040iAZT250200507-200604

(J)

90119W0054

main90119-W0054

91621B0610

main91621-B0610

91621J0612

main91621-J0612

91651B0616

main91651-B0616

91651B0618

main91651-B0618

11 parts on this diagram · 1 diagram in section
