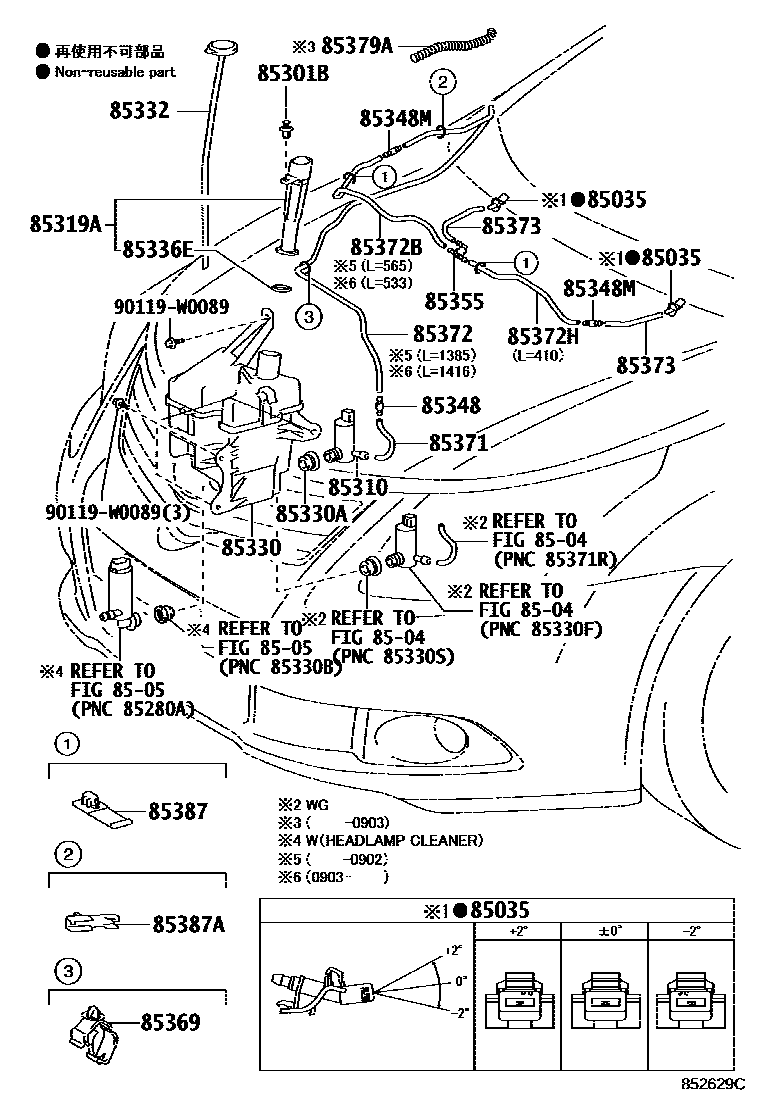

Toyota AVENSIS — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
main85381-12350×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200904-201111
ANGLE +1
ANGLE -1
ANGLE 0
ANGLE 0
ANGLE +1
ANGLE +2
ANGLE -2
main85381-30110×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200904-201111
ANGLE -2
ANGLE 0
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85301BCLIP, WASHER
BLACK
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
main85315-05120iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111
main85355-05060iZRT271..SED..CVT;ZRT272..SED..HTWVM;ADT270..RHD..SED..(E,F);ADT270..LHD..SED..(E,N);ZRT270,271..LHD..SED..6F..N;ADT271,ZRT270,271..SED..(6F,6FC)..(E,G,V); ZRT272..LHD..HTWC200811-201111
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE & AFS
HEAD LAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85374-02220iADT27#,ZRT27#; ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ZRT270..LHD..SED..N;ADT270,ZRT271..LHD..6F..N;ADT27#,ZRT270,272..(E,F,G,V)..(DCR,DCRL,HTWVM); ZRT272..HTWC200811-200908
L=140; L=140,HEAD LAMP CLEANER-WITH; L=140,HEADLAMP-DISCHARGE & AFS
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=165)
85379ASPRING, WINDSHIELD WASHER HOSE
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
90119W0089
main90119-W0089
24 parts on this diagram · 5 diagrams in section
WINDSHIELD WASHER for Toyota AVENSIS
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVENSIS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER.
