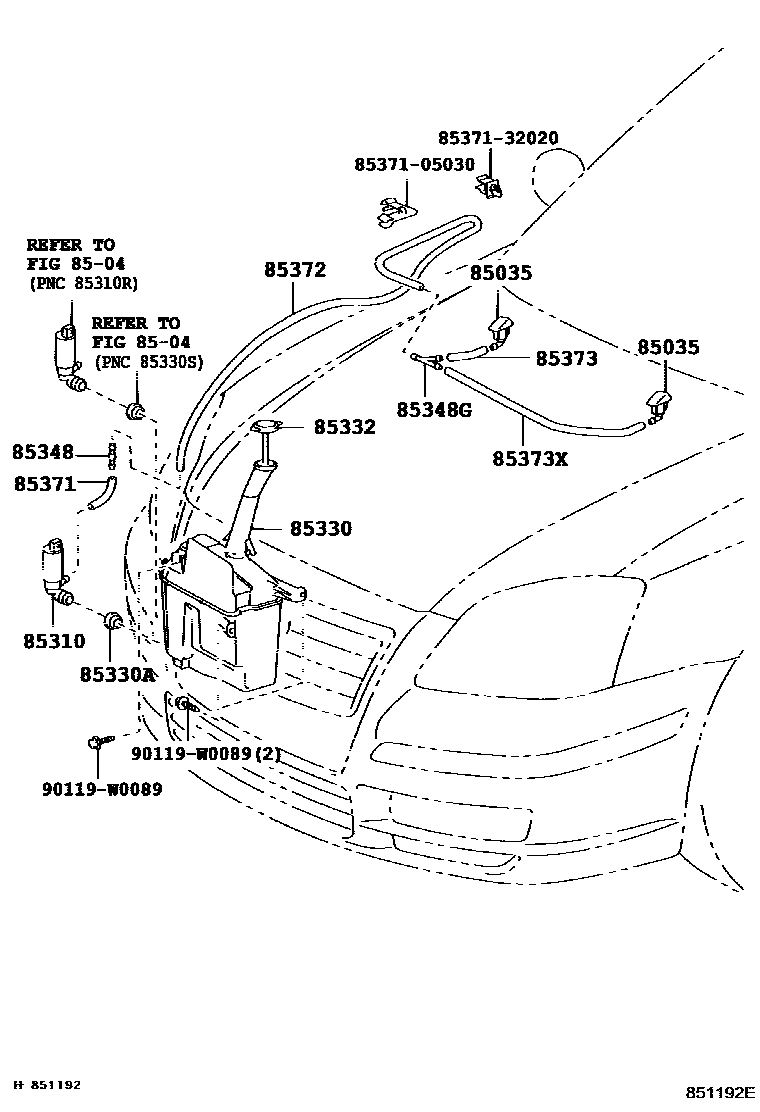

Toyota AVENSIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-05040iADT251..RHD;CDT250..RHD..TEC..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200505

sub85381-05041

main85381-05041iADT25#,AZT25#,ZZT25#..RHD200505-200604

main85381-05050iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC);AZT251,CDT250,ZZT250..LHD..(D4,DCR,HTWC)200301-200505

sub85381-05051

main85381-05051iADT251,AZT25#,CDT250,ZZT25#..LHD200505-200604

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030iADT251,AZT251,ZZT250..LB,WG;ZZT251..LHD..(LB,WG)..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ELEGT,TEC);ZZT251..RHD..(LB,WG)..(ENTRY,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..200301-200506

sub85330-05031

main85330-05031iADT251,AZT25#,CDT250,ZZT25#..SED200505-200604

85330JAR ASSY, WINDSHIELD WASHER

main85315-02090iADT251,AZT25#,CDT250,ZZT25#..LB,WG200301-200604

main85315-05110iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iADT25#,AZT25#,ZZT25#200301-200604

85332CAP, WINDSHIELD WASHER JAR

main85316-02090iADT251,AZT25#,CDT250,ZZT25#200301-200604

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030iADT25#,AZT25#,ZZT25#200301-200604

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011iADT251,AZT25#,CDT250,ZZT25#200301-200604

*H,L=50

sub90069-16008

main90069-46011iADT251,AZT25#,CDT250,ZZT25#200301-200604

*H,L=50,HEAD LAMP-DISCHARGE

sub90069-16008

main90069-46011iADT251,AZT25#,CDT250,ZZT25#200301-200604

*H,L=50,WITH(HEAD LAMP CLEANER)

sub90069-16008

main90069-46011iADT25#,AZT25#,ZZT25#200604

*H,L=50,HEADLAMP-DISCHARGE

sub90069-16008

main90069-46011iADT25#,AZT25#,ZZT25#200604

*H,L=50,HEADLAMP CLEANER-WITH

sub90069-16008

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46012iADT251,AZT25#,CDT250,ZZT25#200301-200604

*H,L=1735

sub90069-16011

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009iADT251,AZT25#,CDT250,ZZT25#200301-200811

*H,L=100

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main90069-16009iADT251,AZT25#,CDT250,ZZT25#200301-200811

*H,L=640

8537105030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-05030

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

90119W0089

main90119-W0089

15 parts on this diagram · 1 diagram in section
