Toyota AVENSIS — V-BELT

0001 1 0002 1

1107

1601

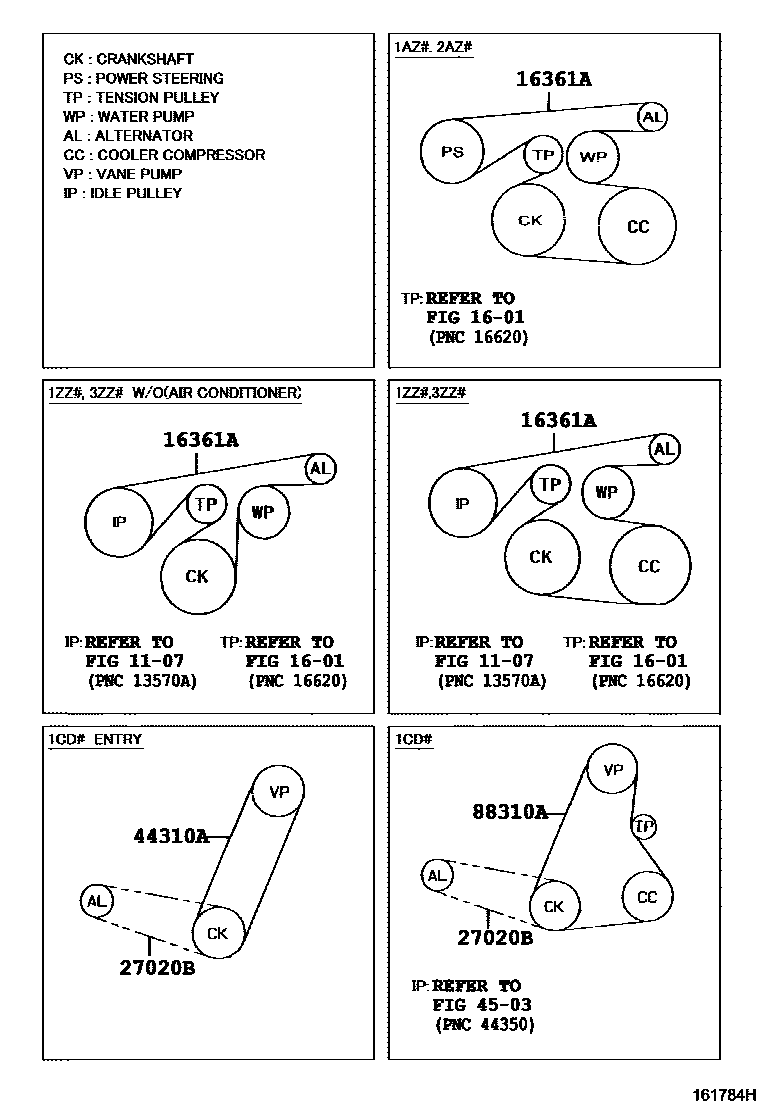

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i1AZ#,2AZFSE..AZT25#200305-200402

(L)

sub90916-T2014

main90916-02502i1AZ#..AZT250200301-200305

sub90916-02598

main90916-02502i1AZ#,2AZFSE..AZT25#200305-200402

(J)

sub90916-02598

main90916-02559i1ZZFE,3ZZFE..ZZT25#200301-200309

sub90916-W2004

main90916-02598i1AZ#,2AZFSE..AZT25#200403-200604

main90916-W2004i1ZZFE,3ZZFE..ZZT25#200309-200604

sub99366-H1730

main90916-W2010i2AD#..ADT251200504-200604

27020BBELT, V(FOR ALTERNATOR)

main90916-02517i1CDFTV..CDT250200303-200604

44310ABELT, V(FOR VANE PUMP)

4503

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02550iCDT250200303-200604

7 parts on this diagram · 2 diagrams in section
