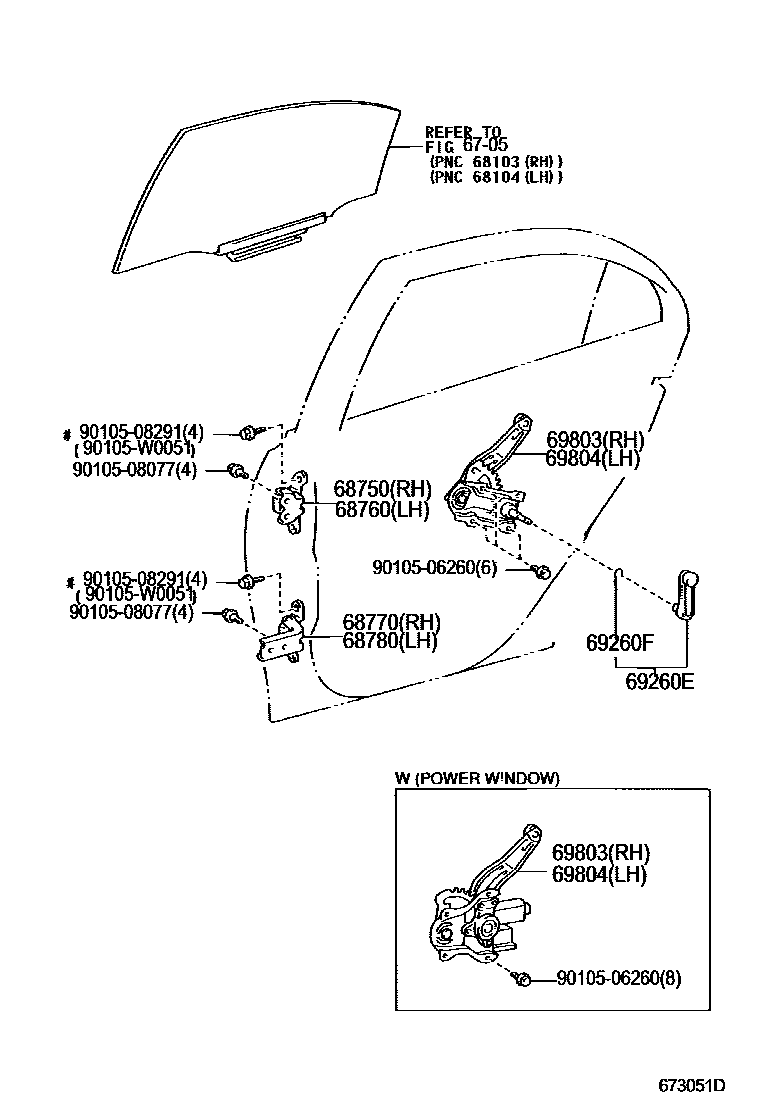

Toyota AVENSIS — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68750-20121

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68760-20121

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68770-52031

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub68780-52031

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-B2iADT251,CDT250,ZZT25#..ENTRY200301-200604

DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

main69260-02020-B2iADT251,CDT250,ZZT25#..ENTRY200301-200604

POWER WINDOW-FR2, RR2,DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

main69260-02020-B2iADT25#,ZZT25#..ENTRY200604

POWER WINDOW-FR2,RR2 ONE TOUCH UP/DOWN,DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iADT251,CDT250,ZZT25#..ENTRY200301-200604

POWER WINDOW-FR2, RR2

main90080-52100iADT25#,ZZT25#..ENTRY200604

POWER WINDOW-FR2,RR2 ONE TOUCH UP/DOWN

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-05090iADT251,CDT250,ZZT25#..ENTRY200301-200604

main69830-05100iADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC200301-200604

POWER WINDOW-FR2, RR2

main69830-05100iADT25#,AZT25#,ZZT25#..PAG,TEC200604

POWER WINDOW-FR2,RR2 ONE TOUCH UP/DOWN

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-05090iADT251,CDT250,ZZT25#..ENTRY200301-200604

main69840-05100iADT251,CDT250,ZZT25#..ENTRY200301-200604

POWER WINDOW-FR2, RR2

main69840-05100iADT25#,ZZT25#..ENTRY200604

POWER WINDOW-FR2,RR2 ONE TOUCH UP/DOWN

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105W0051

main90105-W0051

13 parts on this diagram · 1 diagram in section
