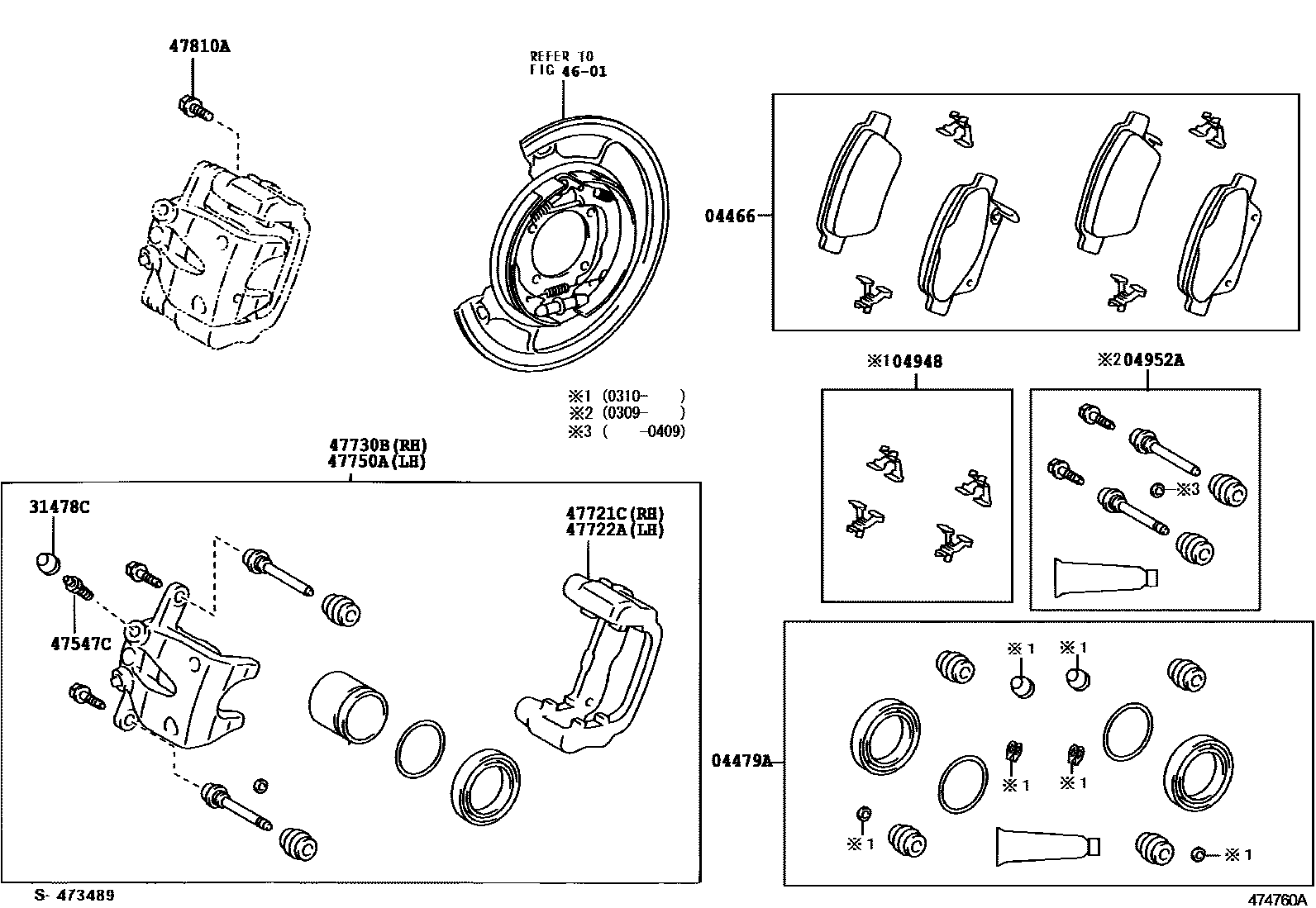

Toyota AVENSIS — REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-05010iCDT250..DCR;ADT251,AZT25#,ZZT25#200301-200604

MARK TEXTAR T4148

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-05060iAZT25#,CDT250,ZZT25#200301-200310

sub04479-05080

main04479-05080iADT251,AZT25#,CDT250,ZZT25#200310-200604

04948FITTING KIT, DISC BRAKE, REAR

main04948-05010iADT25#,AZT25#,ZZT25#200310-200604

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04956-05010iAZT25#,CDT250,ZZT25#200309-200604

main04956-05020iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200409-200512

sub04956-05010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-05070iADT251,AZT25#,CDT250,ZZT25#200301-200604

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-05040iADT251,AZT25#,CDT250,ZZT25#200301-200604

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-05070iAZT25#,CDT250,ZZT25#200301-200409

sub47730-05071

main47730-05071iADT251,AZT25#,CDT250,ZZT25#200409-200604

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-05070iAZT25#,CDT250,ZZT25#200301-200409

sub47750-05071

main47750-05071iADT251,AZT25#,CDT250,ZZT25#200409-200604

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10404iADT251,AZT25#,CDT250,ZZT25#200301-200604

12 parts on this diagram · 1 diagram in section
