Toyota AVENSIS — PARTIAL ENGINE ASSEMBLY

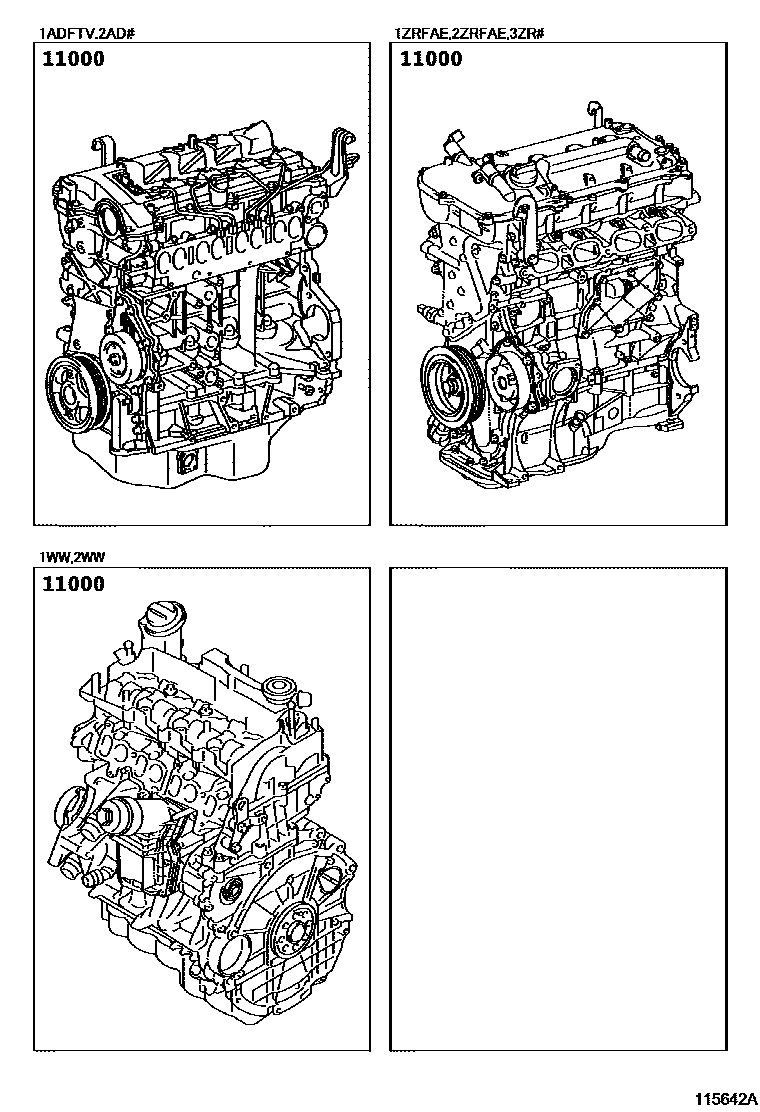

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0R120i200811-201110
(L)
sub16278-0R010
sub25760-26200
sub25770-26172
main19000-0R121i201110-201111
main19000-0R130i200811-201110
(L)
main19000-0R131i201110-201111
main19000-0R140i200811-201110
(L)
sub16278-0R010
sub25760-26200
sub25770-26172
main19000-0R141i201110-201111
main19000-0R200i201111-201505
main19000-0T070i200811-201111
main19000-0T072i201505
main19000-0T090i200811-201111
main19000-0T471i201505
main19000-26420i200811-201110
(J)
sub19000-26421
sub25760-26200
sub25770-26172
main19000-26440i200811-201110
(J)
sub19000-26442
sub25760-26200
sub25770-26172
main19000-26450i200811-201110
(J)
sub19000-26452
sub25760-26200
sub25770-26172
main19000-37291i201105-201111
sub19000-37293
main19000-37362i201109-201111
sub19000-37364
main19000-37380i200811-201108
main19000-37751i201505-201508
main19000-37761i201508
main19000-WA020i201505-201804
main19000-WA030i201505-201804
main19000-0R110i200811-201110
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),(L)
sub19000-0R170
main19000-0R111i201110-201111
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)
main19000-0T481i201505
HIGH SULFUR FUEL COUNTRY SPEC
main19000-0T491i201505
HIGH SULFUR FUEL COUNTRY SPEC
main19000-26430i200811-201110
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),(J)
sub19000-26431
sub25760-26200
sub25770-26172

1 parts on this diagram · 1 diagram in section
