Toyota AVENSIS — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

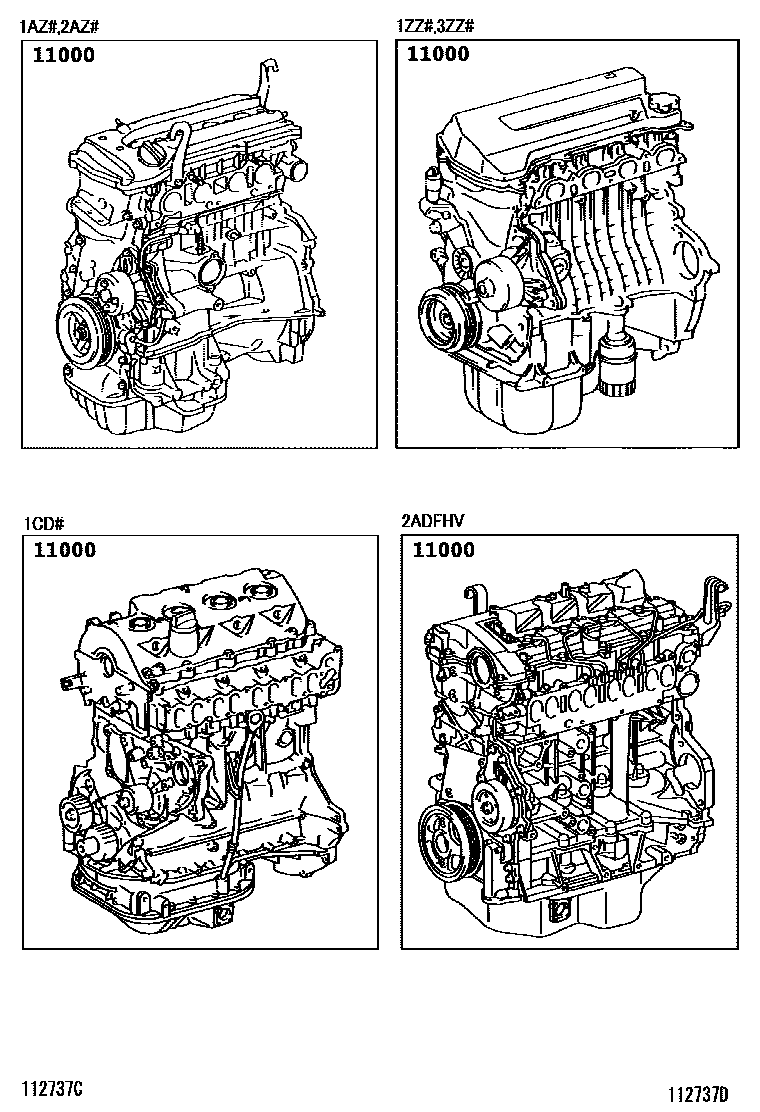

11000ENGINE ASSY, PARTIAL

main19000-0D191i1ZZFE..ZZT251200301-200604

sub19000-22B60

sub16258-28030

sub16268-22101

sub16268-22161

main19000-0D200i3ZZFE..ZZT250200604-200811

sub19000-22221

sub16258-28030

sub16268-22101

sub16268-22161

main19000-0G010i1CDFTV..CDT250..DCR200303-200604

sub19000-27280

main19000-0R010i2ADFTV..ADT251200504-200604

(L)

sub16261-0R081

sub16279-0R040

sub16283-26011

sub26100-0R011

sub96136-41501

main19000-0R011i2ADFTV..ADT251200802-200811

main19000-0R020i2ADFHV..ADT251200504-200604

(L)

sub16261-0R080

sub16279-0R040

sub16283-26010

sub16283-26011

sub26100-0R011

sub96136-41501

main19000-0R021i2ADFHV..ADT251200802-200806

main19000-0R023i2ADFHV..ADT251200806-200811

sub19000-26580

main19000-0R030i1ADFTV..ADT250200605-200802

sub16261-0R080

sub16279-0R040

sub16283-26011

sub26100-26020

sub96136-41501

main19000-0R031i1ADFTV..ADT250200802-200811

main19000-26330i2ADFHV..ADT251200504-200604

(J)

main19000-26340i2ADFTV..ADT251200504-200604

(J)

main19000-27220i1CDFTV..CDT250..DCRL200309-200411

main19000-28250i1AZFSE..AZT250..SED;1AZFSE..AZT250..(LB,WG)..TEC;1AZFSE..AZT250..LHD..(LB,WG)..ELEGT200301-200604

main19000-28280i1AZFE..AZT250200604-200608

main19000-28340i2AZFSE..AZT251200309-200604

main19000-28640i1AZFSE..AZT250..RHD..(LB,WG)..ELEGT200311-200411

main19000-28641i1AZFSE..AZT250200608-200811

main19000-28651i1AZFE..AZT250200608-200811

main19000-28671i2AZFSE..AZT251200608-200811

main19000-0R040i1ADFTV..ADT250..LHD200609-200802

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub16261-0R080

sub16279-0R040

sub16283-26011

sub26100-26020

sub96136-41501

main19000-0R041i1ADFTV..ADT250..LHD200802-200811

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

1 parts on this diagram · 2 diagrams in section
