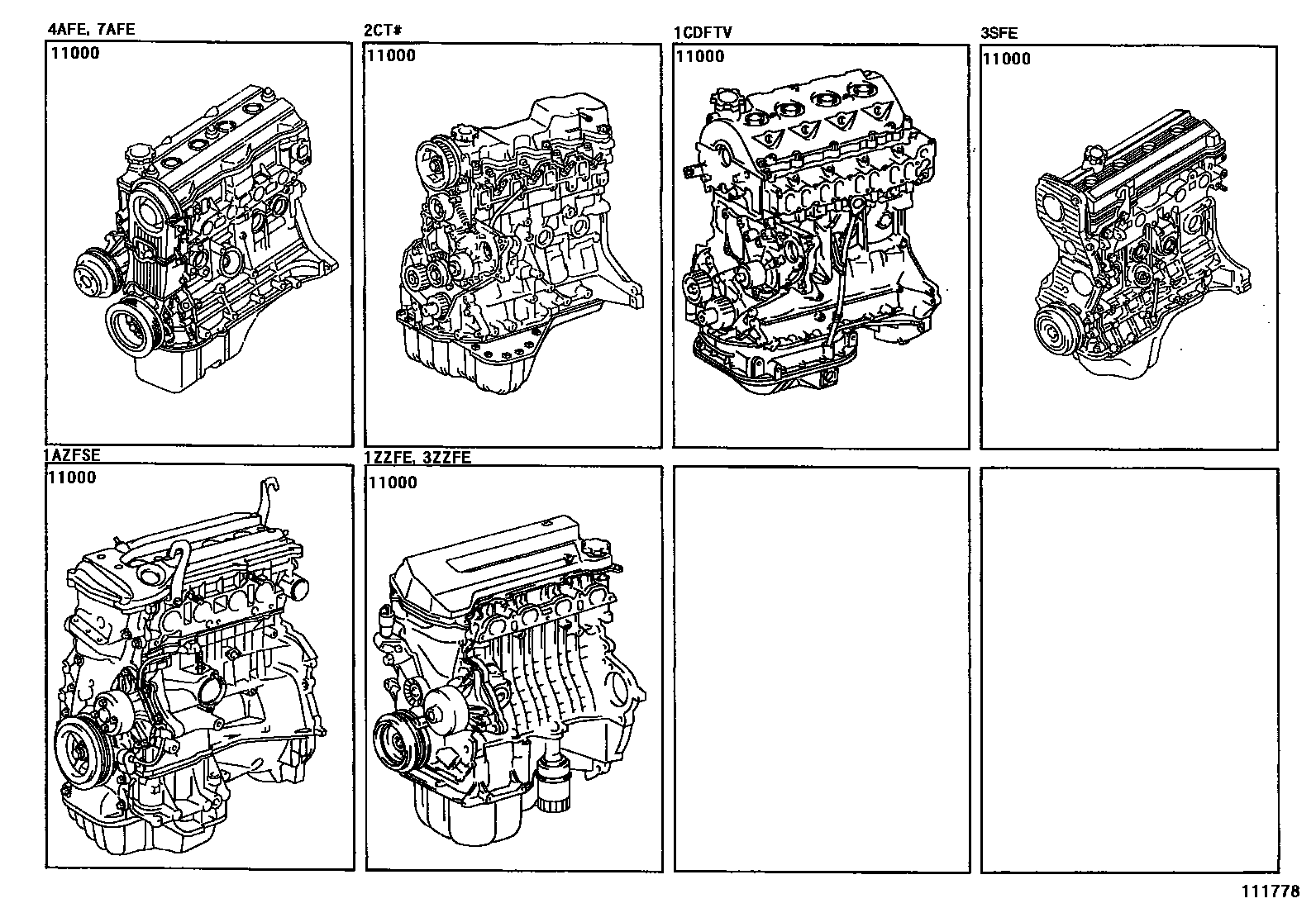

Toyota AVENSIS — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-02130i4AFE..AT220..TERRA199710-199805

LEAN BURN

main19000-02140i4AFE..AT220..LHD199710-200007

main19000-02160i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

main19000-02170i7AFE..AT221199710-200007

main19000-0D070i3ZZFE..ZZT220200007

sub19000-22221

sub12315-22020

sub16258-28030

sub16268-22101

main19000-0D080i1ZZFE..ZZT221200007

sub19000-0D081

main19000-27140i1CDFTV..CDT220199908-200002

main19000-27141i1CDFTV..CDT220200002-200005

sub90430-12221

main19000-27142i1CDFTV..CDT220200005-200007

main19000-27170i1CDFTV..CDT220200007

main19000-28190i1AZFSE..AZT220200007-200107

sub19000-28191

main19000-28250i1AZFSE..AZT220200107

sub19000-28641

main19000-6A120i2CTE..CT220199710-199808

sub90105-16064

sub90560-16025

main19000-6A121i2CTE..CT220199808-200007

main19000-6A130i2CT..CT220199710-199808

sub90105-16064

sub90560-16025

main19000-6A131i2CT..CT220199808-200007

main19000-7A400i3SFE..ST220199710

main19000-7A410i3SFE..ST220..LHD199710-200007

PLATINUM PLUG

1 parts on this diagram · 1 diagram in section
