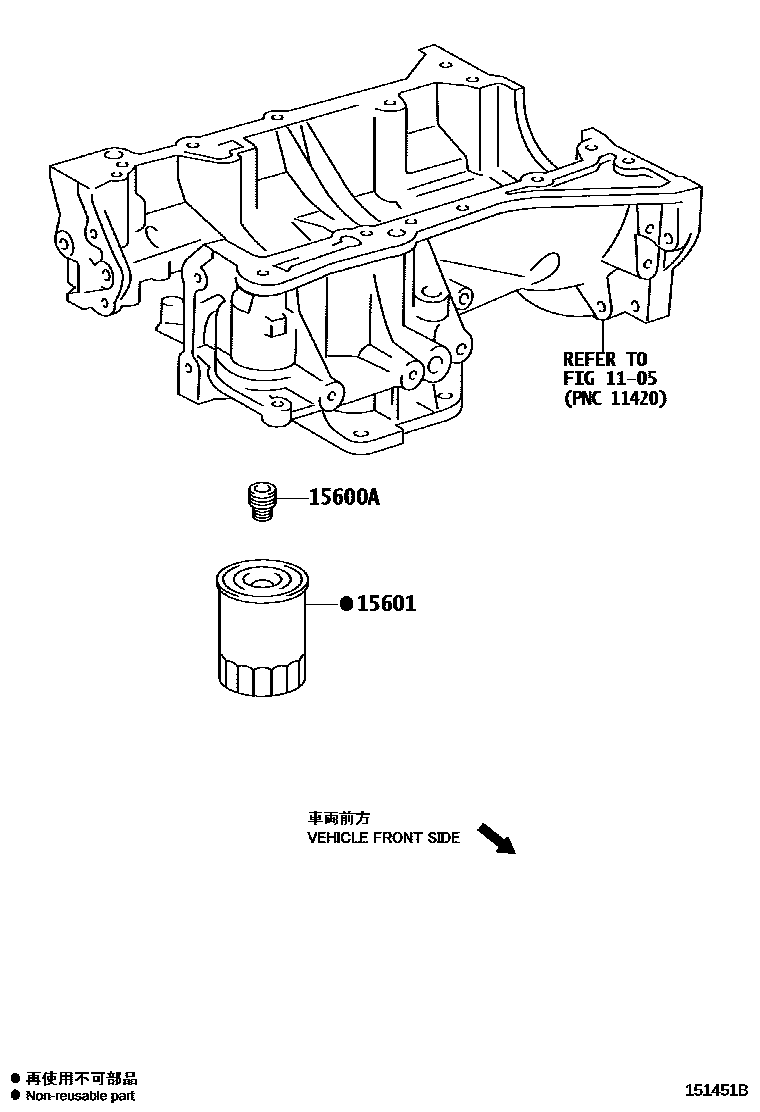

Toyota AVENSIS — OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

1105

15600AUNION(FOR OIL FILTER)

main15695-28010i2AZFSE..AZT251200309-200604

main90904-04002i1ZZFE,3ZZFE..ZZT25#200301-200604

main90904-04006i1AZ#..AZT250200301-200604

15601FILTER SUB-ASSY, OIL

main90915-10001i1ZZFE,3ZZFE..ZZT25#200301-200803

MARK 90915-10001

sub90915-10003

main90915-10003i1ZZFE,3ZZFE..ZZT25#200301-200604

MARK 90915-10003

sub90915-10009

main90915-10004i1AZ#,2AZFSE..AZT25#200301-200604

main90915-30003i1CDFTV..CDT250200303-200604

main90915-CA003i1ZZFE,3ZZFE..ZZT25#200803

MARK 90915-CA003

3 parts on this diagram · 5 diagrams in section
