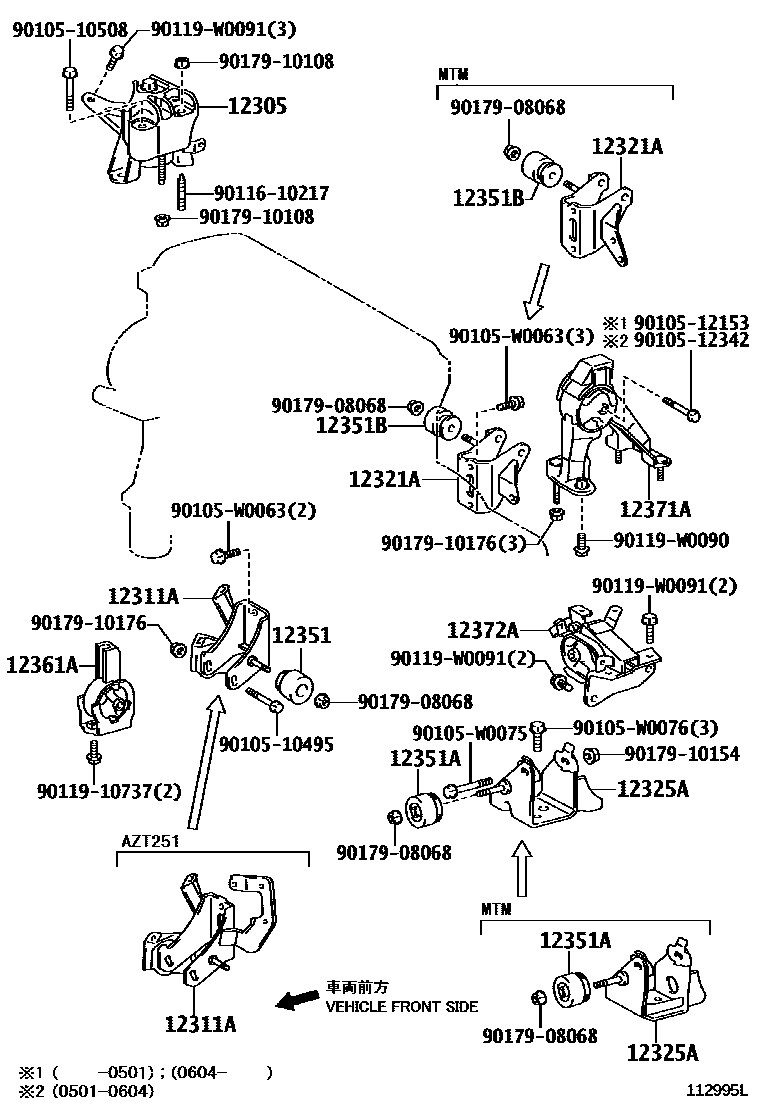

Toyota AVENSIS — MOUNTING

0001 1 0003 1 0004 1 0005 1 0006 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0D050i1ZZFE,3ZZFE..ZZT25#200301-200312

sub12305-0D051

main12305-0D051i1ZZFE,3ZZFE..ZZT25#200312-200604

sub12305-22270

main12305-28120i1AZ#..AZT250200301-200604

main12305-28210i2AZFSE..AZT251200309-200604

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0D090i1ZZFE,3ZZFE..ZZT25#200301-200604

main12311-0G010i1CDFTV..CDT250200303-200604

main12311-0H040i1AZ#..AZT250200301-200604

main12311-26070i2AD#..ADT251200504-200604

main12311-26100i1ADFTV..ADT250200605

main12311-28170i2AZFSE..AZT251200309-200604

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0D140i1ZZFE,3ZZFE..ZZT25#..5F200301-200506

sub12321-0D141

main12321-0D141i1ZZFE,3ZZFE..ZZT25#..5F200507-200604

main12321-0G020i1CDFTV..CDT250200303-200506

sub12321-0G021

main12321-0G021i1CDFTV..CDT250200507-200604

main12321-0H030i1AZ#..AZT250..5F200301-200507

sub12321-0H031

main12321-0H031i1AZ#..AZT250..5F200508-200604

main12321-0H040i2AZFSE..AZT251200309-200604

main12321-22160i1ZZFE..ZZT251..4FC200301-200604

main12321-26010i2AD#..ADT251200504-200604

main12321-28090i1AZ#..AZT250..4FC200301-200604

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0D010i1ZZFE,3ZZFE..ZZT25#..5F200301-200604

main12325-0G010i1CDFTV..CDT250200303-200604

main12325-0H020i1AZ#..AZT250..5F200301-200604

main12325-22190i1ZZFE..ZZT251..4FC200301-200604

main12325-26010i1ADFTV,2AD#..ADT25#200504-200604

main12325-28200i1AZ#,2AZFSE..AZT25#..ATM200301-200604

12351DAMPER, ENGINE MOUNTING

main12351-0D020i1AZ#,2AD#,2AZFSE..ADT251,AZT25#200301-200604

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0D030i1AZ#..AZT250..5F200301-200604

main12351-22090i1ZZFE..ZZT251..4FC200301-200604

main12351-23010i2AD#..ADT251200504-200604

main12351-27050i1AZ#,2AZFSE..AZT25#..ATM200301-200604

12351BDAMPER, ENGINE MOUNTING

main12351-0D020i1CDFTV..CDT250200301-200604

main12351-27050i1AZ#..AZT250..4FC200301-200604

main12351-28060i1ADFTV,2AD#..ADT25#200504-200604

main12351-74140i1ZZFE..ZZT251..4FC200301-200604

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D110i1AZ#..AZT250..5F200301-200604

main12361-0D120i1AZ#..AZT250..4FC200301-200604

sub12361-22090

main12361-0D130i1ZZFE..ZZT251..4FC200301-200604

main12361-0G010i1CDFTV..CDT250200303-200306

main12361-0G030i1CDFTV..CDT250200306-200604

main12361-0H080i2AZFSE..AZT251200309-200412

main12361-0H081i2AZFSE..AZT251200412-200604

main12361-0R010i2AD#..ADT251200504-200604

main12361-0R030i1ADFTV..ADT250200605

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D130i1ZZFE,3ZZFE..ZZT25#200301-200604

main12371-0G010i1CDFTV..CDT250200303-200604

main12371-0H030i2AZFSE..AZT251200301-200604

main12371-0H070i2AZFSE..AZT251200412-200604

main12371-0R010i2AD#..ADT251200504-200604

main12371-0R040i1ADFTV..ADT250200605

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D120i1ZZFE,3ZZFE..ZZT25#200301-200604

main12372-0G010i1CDFTV..CDT250200303-200604

main12372-0H050i1AZ#..AZT250200301-200604

main12372-0H070i2AZFSE..AZT251200309-200604

main12372-0R010i1ADFTV,2AD#..ADT25#200504-200604

9010510495

main90105-10495

9010510508

main90105-10508

9010512153

main90105-12153

9010512342

main90105-12342

90105W0063

main90105-W0063

90105W0075

main90105-W0075

90105W0076

main90105-W0076

9011610217

main90116-10217

9011910737

main90119-10737

90119W0090

main90119-W0090

90119W0091

main90119-W0091

9017908068

main90179-08068

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

25 parts on this diagram · 5 diagrams in section
