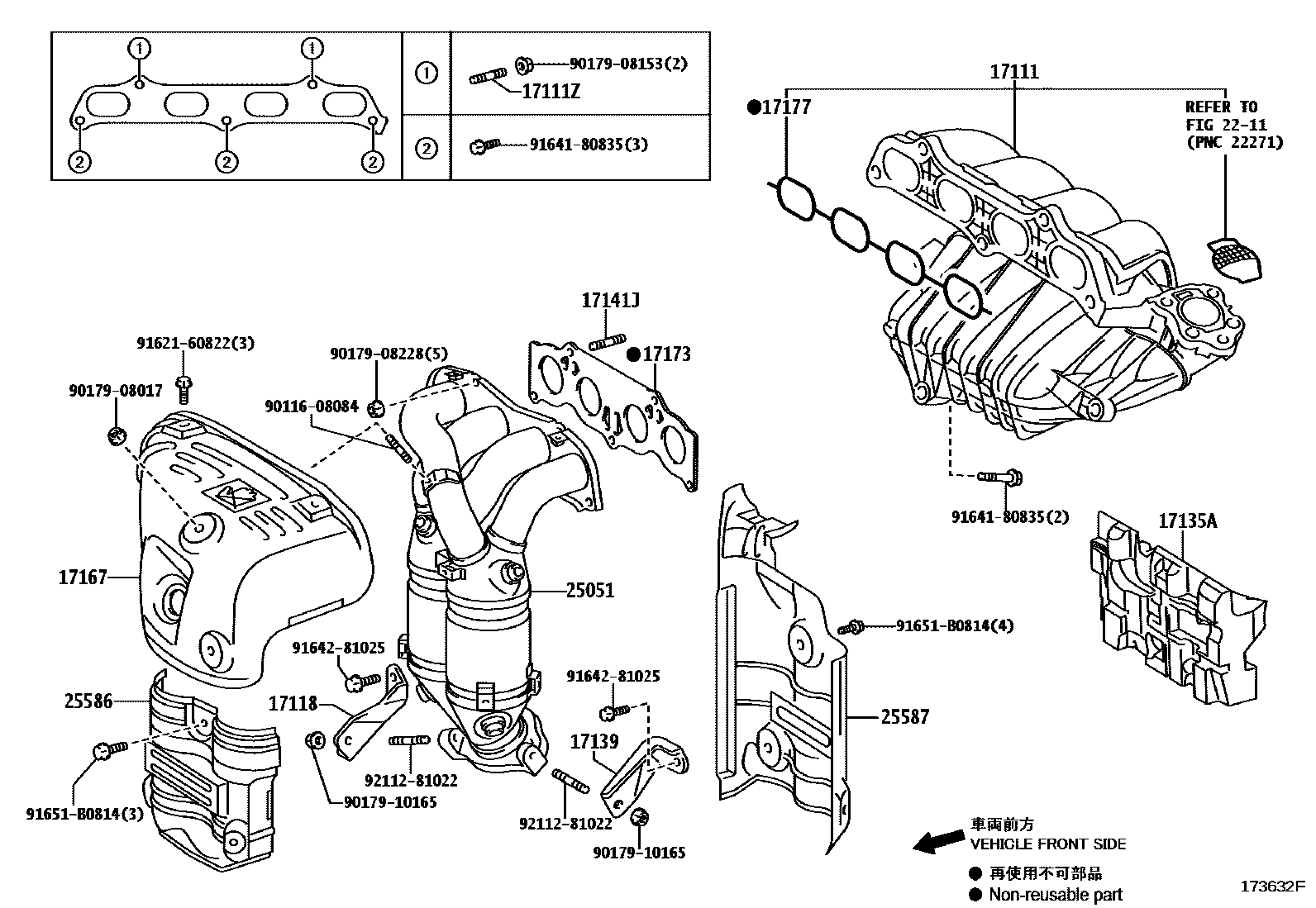

Toyota AVENSIS — MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W(DPF) 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

17111MANIFOLD, INTAKE

main17101-0R010i2AD#..ADT251200504-200807

sub17101-0R011

main17101-0R011i1ADFTV,2AD#..ADT25#200807-200811

main17101-28040i1AZFSE..AZT250200301-200307

sub17101-28041

main17101-28041i1AZFSE,2AZFSE..AZT25#200307-200811

main17111-27012i1CDFTV..CDT250200303-200604

main17120-0D031i3ZZFE..ZZT250200301-200402

(J),(L)

main17120-0D070i3ZZFE..ZZT250200402-200604

main17120-22030i1ZZFE..ZZT251200301-200402

main17120-22070i1ZZFE..ZZT251200402-200604

main17120-28010i1AZFE..AZT250200301-200811

sub17120-28050

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08167i1ADFTV,2AD#..ADT25#200504-200604

main90126-08021i1AZFSE,2AZFSE..AZT25#200301-200604

main90126-08026i1AZFE..AZT250200301-200604

17118STAY, MANIFOLD

main17118-0G010i1CDFTV..CDT250200303-200604

main17118-0R010i2ADFTV..ADT251200504-200604

main17118-22090i1ZZFE,3ZZFE..ZZT25#200301-200604

main17118-26030i2ADFHV..ADT251200504-200604

main17118-28020i1AZ#,2AZFSE..AZT25#200301-200604

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-22010i1ZZFE..ZZT251200301-200604

main17135-27010i1CDFTV..CDT250200303-200604

main17135-28010i1AZFE..AZT250200301-200505

sub17135-28011

main17135-28011i1AZFE..AZT250200506-200811

main17135-28020i1AZFSE,2AZFSE..AZT25#200301-200811

main17853-26010i2ADFHV..ADT251200504-200811

17139STAY, MANIFOLD, NO.2

main17139-0R010i1ADFTV,2ADFTV..ADT25#200504-200604

main17139-22030i1ZZFE..ZZT251200402-200604

main17139-22040i1ZZFE..ZZT251200301-200402

main17139-22050i3ZZFE..ZZT250200301-200604

main17139-26010i2ADFHV..ADT251200504-200604

main17139-27020i1CDFTV..CDT250200303-200604

main17139-28010i1AZ#,2AZFSE..AZT25#200301-200604

17141MANIFOLD, EXHAUST

main17104-0D100i1ZZFE,3ZZFE..ZZT25#200301-200402

*114=TOYOTA/ZZ005/Y

sub17104-0D101

sub17166-22010

sub17167-0D052

sub17168-0D041

main17104-0D101i1ZZFE,3ZZFE..ZZT25#200402-200604

*114=TOYOTA/ZZ005/Y

main17141-0R010i2AD#..ADT251200504-200604

(L)

main17141-0R010i1ADFTV,2AD#..ADT25#200604

main17141-26100i2AD#..ADT251200510-200604

(J)

main17141-27040i1CDFTV..CDT250..DCR200303-200604

main17141-27060i1CDFTV..CDT250..DCRL200309-200411

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i1AZ#,2AZFSE..AZT25#200301-200604

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0D050i1ZZFE,3ZZFE..ZZT25#200301-200402

main17167-0D052i1ZZFE,3ZZFE..ZZT25#200402-200604

main17167-28010i1AZ#,2AZFSE..AZT25#200301-200604

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0D010i1ZZFE,3ZZFE..ZZT25#200301-200306

(L)

sub17173-22010

main17173-0R010i1ADFTV,2AD#..ADT25#200504-200604

main17173-22010i1ZZFE,3ZZFE..ZZT25#200306-200604

main17173-22010i1ZZFE,3ZZFE..ZZT25#200301-200306

(J)

main17173-27010i1CDFTV..CDT250200303-200604

main17173-28010i1AZ#,2AZFSE..AZT25#200301-200604

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0D030i3ZZFE..ZZT250200303-200604

(L)

main17171-0R010i2AD#..ADT251200504-200604

main17171-22030i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

main17177-27010i1CDFTV..CDT250..DCRL200309-200411

main17177-28010i1AZFE..AZT250200301-200604

sub17177-28031

main17177-28020i1AZFSE,2AZFSE..AZT25#200301-200604

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0R010i1ADFTV,2ADFTV..ADT25#200504-200604

*114=TOYOTA/0R010/Y

main25051-0R020i2ADFHV..ADT251200504-200605

*114=TOYOTA/0R020/Y

sub25051-26041

sub25733-26011

main25051-0R020i2ADFHV..ADT251200605-200705

*114=TOYOTA/0R020/Y,(L)

sub25051-26041

sub25733-26011

main25051-26040i2ADFHV..ADT251200605-200705

*114=TOYOTA/26040/Y,(J)

sub25051-26041

sub25733-26011

main25051-26041i2ADFHV..ADT251200705

*114=TOYOTA/26041/Y

main25051-27060i1CDFTV..CDT250..DCR200303-200403

*115=TOYOTA/03-/N

sub25051-27061

main25051-27061i1CDFTV..CDT250..DCR200403-200604

*114=TOYOTA/2706/Y

main25051-28040i1AZFE..AZT250200301-200403

*115=TOYOTA/00-03/Y

sub25051-28041

main25051-28041i1AZFE..AZT250200403-200604

*114=TOYOTA/28041/Y

main25051-28150i1AZFSE,2AZFSE..AZT25#200301-200604

*114=TOYOTA/28150/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0R010i1ADFTV,2ADFTV..ADT25#200504-200608

sub25586-0R011

main25586-0R011i1ADFTV,2ADFTV..ADT25#200609-200807

sub25586-0R020

main25586-0R020i1ADFTV,2ADFTV..ADT25#200808

main25586-26010i2ADFHV..ADT251200504-200604

main25586-28010i1AZ#,2AZFSE..AZT25#200301-200604

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-26010i2ADFHV..ADT251200504-200804

sub25587-26020

main25587-26020i2ADFHV..ADT251200805

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

main25587-28010i1AZ#,2AZFSE..AZT25#200301-200604

9011608084

main90116-08084

9017908017

main90179-08017

9017908153

main90179-08153

9017908228

main90179-08228

9017910165

main90179-10165

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

91651B0814

main91651-B0814

9211281022

main92112-81022

24 parts on this diagram · 13 diagrams in section
