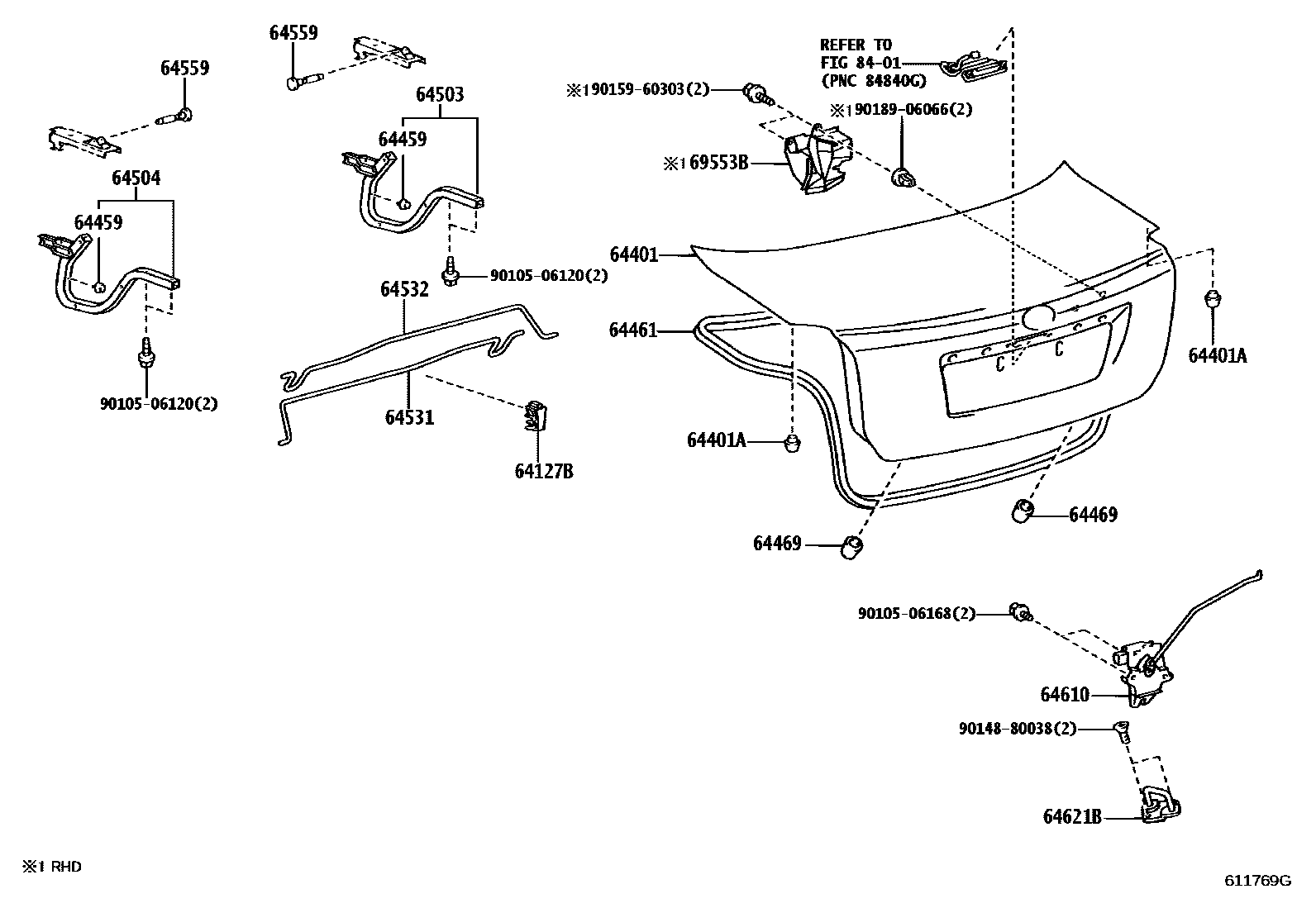

Toyota AVENSIS — LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-05050iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09069iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-10144iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-05030iAZT250,CDT250,ZZT25#..SED200301-200307

sub64461-05031

main64461-05031iADT251,AZT25#,CDT250,ZZT25#..SED200307-200604

64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2

main90541-09125iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-05020iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-05020iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-05040iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-05040iADT251,AZT25#,CDT250,ZZT25#..SED200304-200604

64559PIN, LUGGAGE DOOR HINGE

main64559-32020iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-05010iAZT25#,CDT250,ZZT25#..SED200301-200406

sub64600-05011

main64600-05011iADT251,AZT25#,CDT250,ZZT25#..SED200407-200604

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-20130iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

69553BPROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-05020iADT251,AZT25#,CDT250,ZZT25#..RHD..SED200301-200604

8401

9010506120

main90105-06120

9010506168

main90105-06168

9014880038

main90148-80038

9015960303

main90159-60303

9018906066

main90189-06066

20 parts on this diagram · 1 diagram in section
