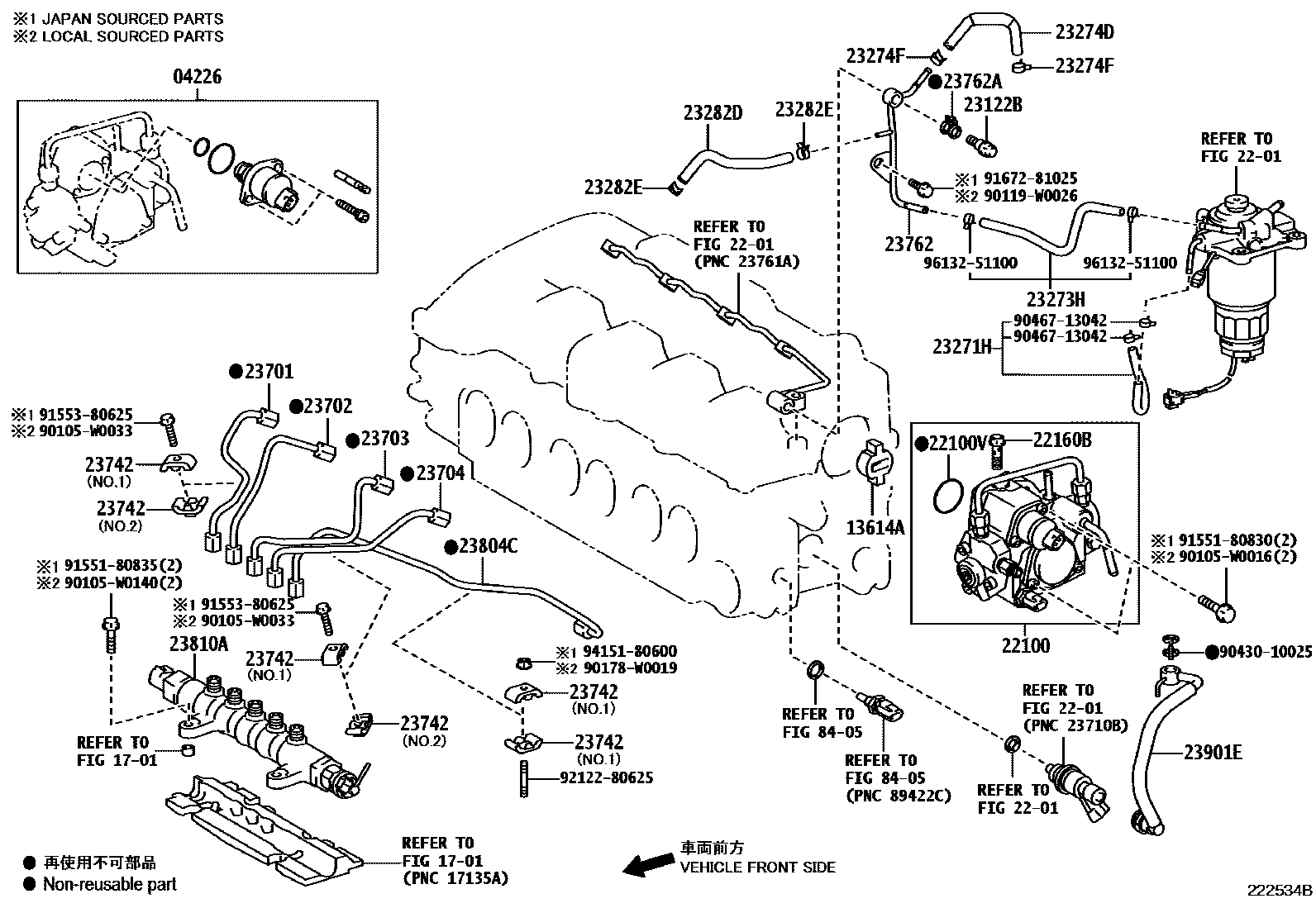

Toyota AVENSIS — INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1W(DPF) 0004 1 0005 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L030i1ADFTV,2AD#..ADT25#200504-200811

sub04226-26020

sub04226-26030

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-26010i2AD#..ADT251200504-200604

1701

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0G010i1CDFTV..CDT250..DCR200303-200604

sub22100-0G011

main22100-0R010i1ADFTV,2ADFTV..ADT25#200504-200710

sub22100-0R011

main22100-0R011i1ADFTV,2ADFTV..ADT25#200710

sub22100-0R070

main22100-0R020i2ADFHV..ADT251200504-200710

sub22100-0R021

main22100-0R021i2ADFHV..ADT251200710

CATALYTIC CONVERTER-W(DIESEL PARTICULATE FILTER)

sub22100-0R050

main22100-27020i1CDFTV..CDT250..DCRL200309-200411

22100VRING, O(FOR INJECTION PUMP)

main22193-0R020i2AD#..ADT251200504-200604

22160BSCREW

main22569-0R020i2ADFHV..ADT251200504-200604

23122BVALVE, CHECK

main23769-26010i2ADFHV..ADT251..ELEGT,TEC200504-200510

sub23769-26020

sub23761-0R030

main23769-26020i2ADFHV..ADT251200510-200604

main23769-30010i1CDFTV..CDT250..DCR200303-200604

23271HHOSE, FUEL, NO.1

main23271-26040i1ADFTV,2AD#..ADT25#200504-200604

main23271-27100i1CDFTV..CDT250200303-200604

main23271-27110i1CDFTV..CDT250..DCRL200309-200411

NO.2

23273HHOSE, FUEL, NO.2

main23273-26020i2AD#..ADT251200504-200604

main23273-27070i1CDFTV..CDT250200303-200604

23274DHOSE, FUEL, NO.3

main23274-26020i2AD#..ADT251200504-200604

23274FCLIP(FOR FUEL HOSE NO.3)

main96135-51100i2AD#..ADT251200504-200604

23282DHOSE, FUEL, NO.4

main23282-26030i1ADFTV,2ADFTV..ADT25#200504-200604

main23282-26040i2ADFHV..ADT251200504-200604

main23282-27020i1CDFTV..CDT250200303-200604

23282ECLIP(FOR FUEL HOSE NO.4)

main90467-11076i1ADFTV,2AD#..ADT25#200504-200604

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0R010i1ADFTV,2ADFTV..ADT25#200604-200811

sub23701-26030

main23701-0R010i2ADFTV..ADT251200504-200604

(L)

sub23701-26030

main23701-0R020i2ADFHV..ADT251200504-200604

(L)

sub23701-0R030

main23701-0R020i2ADFHV..ADT251200604-200810

sub23701-0R030

main23701-0R030i2ADFHV..ADT251200810-200811

main23701-26010i2ADFTV..ADT251200504-200604

(J)

sub23701-26030

main23701-26020i2ADFHV..ADT251200504-200604

(J)

sub23701-26040

main23701-27020i1CDFTV..CDT250200303-200604

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0R010i2ADFTV..ADT251200504-200604

(L)

sub23702-26030

main23702-0R010i1ADFTV,2ADFTV..ADT25#200604-200811

sub23702-26030

main23702-0R020i2ADFHV..ADT251200604-200810

sub23702-0R030

main23702-0R020i2ADFHV..ADT251200504-200604

(L)

sub23702-0R030

main23702-0R030i2ADFHV..ADT251200810-200811

main23702-26010i2ADFTV..ADT251200504-200604

(J)

sub23702-26030

main23702-26020i2ADFHV..ADT251200504-200604

(J)

sub23702-26040

main23702-27020i1CDFTV..CDT250200303-200604

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0R010i1ADFTV,2ADFTV..ADT25#200604-200811

sub23703-26030

main23703-0R010i2ADFTV..ADT251200504-200604

(L)

sub23703-26030

main23703-0R020i2ADFHV..ADT251200504-200604

(L)

sub23703-0R030

main23703-0R020i2ADFHV..ADT251200604-200810

sub23703-0R030

main23703-0R030i2ADFHV..ADT251200810-200811

main23703-26010i2ADFTV..ADT251200504-200604

(J)

sub23703-26030

main23703-26020i2ADFHV..ADT251200504-200604

(J)

sub23703-26040

main23703-27020i1CDFTV..CDT250200303-200604

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-0R010i1ADFTV,2ADFTV..ADT25#200604

sub23704-26040

main23704-0R010i2ADFTV..ADT251200504-200604

(L)

sub23704-26040

main23704-0R020i2ADFHV..ADT251200504-200604

(L)

sub23704-26050

main23704-0R020i2ADFHV..ADT251200604-200810

sub23704-26050

main23704-0R030i2ADFHV..ADT251200810

main23704-26020i2ADFTV..ADT251200504-200604

(J)

sub23704-26040

main23704-26030i2ADFHV..ADT251200504-200604

(J)

sub23704-26050

main23704-27020i1CDFTV..CDT250200303-200604

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i2AD#..ADT251200504-200604

NO.1

main23742-27010i1CDFTV..CDT250200303-200604

main23742-58020i1ADFTV,2AD#..ADT25#200504-200604

NO.2

23762PIPE, NOZZLE LEAKAGE, NO.2

main23762-0R011i1ADFTV,2ADFTV..ADT25#200504-200604

main23762-0R021i2ADFHV..ADT251200504-200604

main23762-27040i1CDFTV..CDT250..DCR200303-200312

main23762-27041i1CDFTV..CDT250..DCR200312-200604

main23762-27050i1CDFTV..CDT250..DCRL200309-200411

23762AGASKET, NOZZLE LEAKAGE PIPE NO.2

main90430-10025i2ADFTV..ADT251200504-200604

main90904-30012i1CDFTV..CDT250..DCR200303-200604

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0R010i2AD#..ADT251200504-200604

(L)

sub23804-0R020

main23804-0R010i1ADFTV,2AD#..ADT25#200604-200810

sub23804-0R020

main23804-0R020i1ADFTV,2AD#..ADT25#200810

main23804-26030i2AD#..ADT251200504-200604

(J)

sub23804-26040

main23804-27020i1CDFTV..CDT250200303-200604

23810ARAIL ASSY, COMMON

main23810-0R010i1ADFTV,2ADFTV..ADT25#200504-200604

sub23810-0R011

main23810-0R020i2ADFHV..ADT251200504-200604

main23810-27030i1CDFTV..CDT250..DCR200303-200604

main23810-27040i1CDFTV..CDT250..DCRL200309-200411

23901ETUBE SUB-ASSY, FUEL

main23901-26010i2ADFHV..ADT251200504-200604

8405

90105W0016

main90105-W0016

90105W0033

main90105-W0033

90105W0140

main90105-W0140

90119W0026

main90119-W0026

90178W0019

main90178-W0019

9043010025

main90430-10025

9046713042

main90467-13042

9155180830

main91551-80830

9155180835

main91551-80835

9155380625

main91553-80625

9167281025

main91672-81025

9212280625

main92122-80625

9415180600

main94151-80600

9613251100

main96132-51100

39 parts on this diagram · 5 diagrams in section
