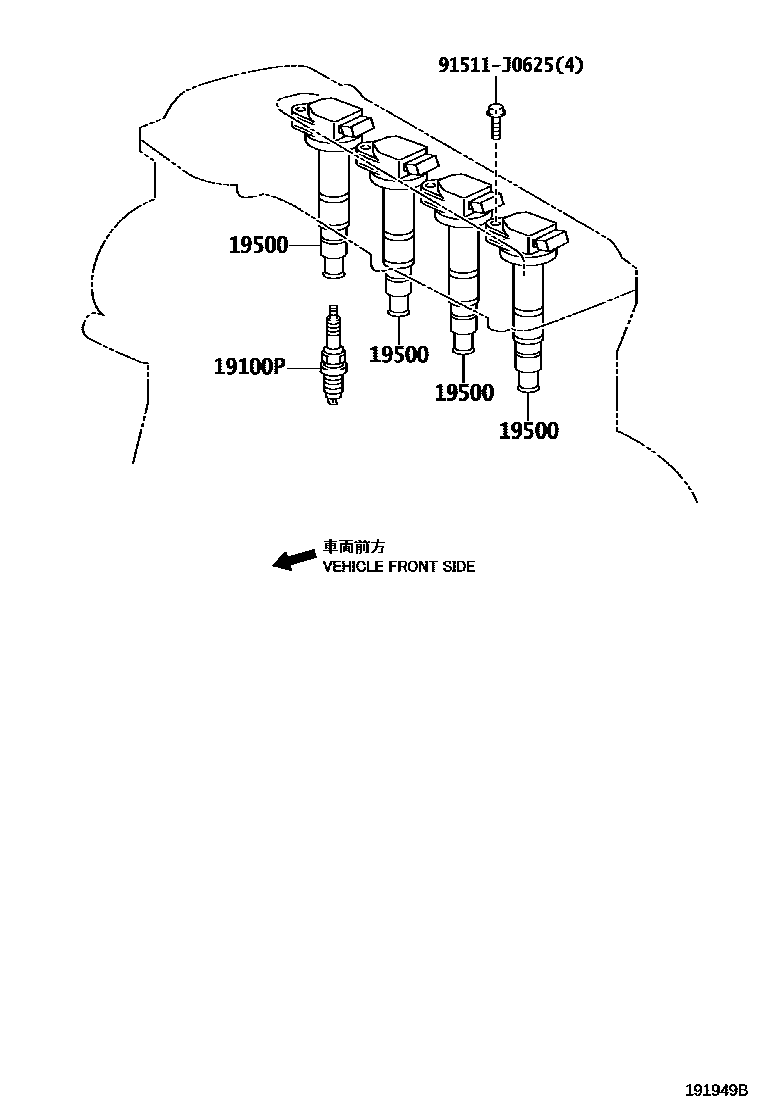

Toyota AVENSIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90080-91193i1ZZFE,3ZZFE..ZZT25#200301-200604

K16R-U11,(L)

main90919-01164i1ZZFE,3ZZFE..ZZT25#200301-200604

K16R-U11,(J)

main90919-01230i1AZFSE,2AZFSE..AZT25#200301-200604

SK20BR11

main90919-01237i1AZFE..AZT250200301-200604

SK20R11

sub90919-01210

19500COIL ASSY, IGNITION

main90080-19019i1ZZFE,3ZZFE..ZZT25#200301-200604

(L)

sub90919-W2001

main90919-02239i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

sub90919-02262

main90919-02243i1AZFE..AZT250200301-200308

MARK 90919-02243

sub90919-02244

main90919-02244i1AZFE..AZT250200301-200308

MARK 90919-02244

sub90919-02266

main90919-02244i1AZFE..AZT250200308-200604

sub90919-02266

main90919-02248i1AZFSE,2AZFSE..AZT25#200301-200604

sub90919-02260

91511J0625

main91511-J0625

3 parts on this diagram · 4 diagrams in section
