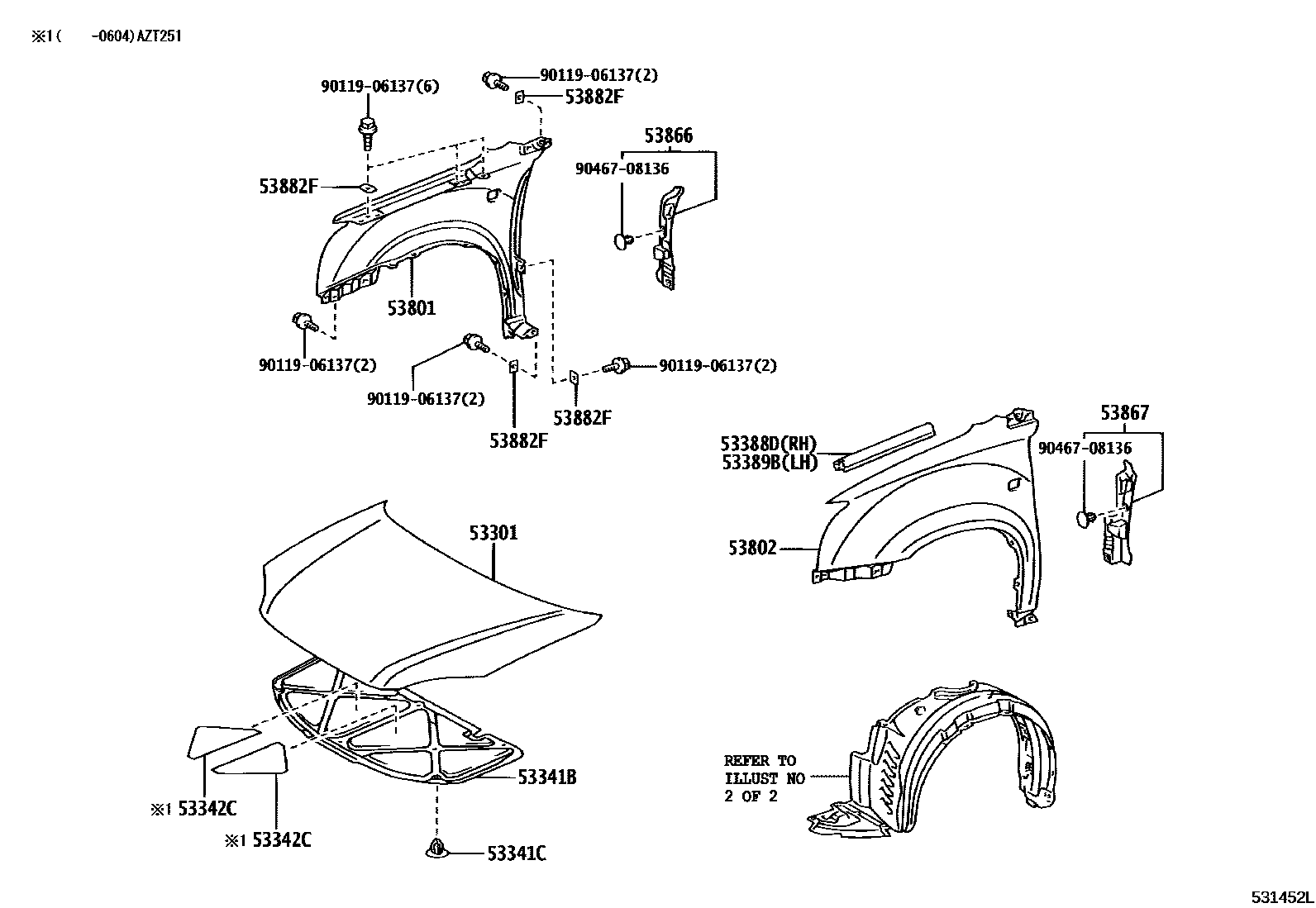

Toyota AVENSIS — HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-05030iADT251,AZT25#,CDT250,ZZT25#200301-200811

53341BINSULATOR, HOOD

main53341-05030iAZT25#,CDT250,ZZT25#200301-200502

sub53341-05031

main53341-05031iADT251,AZT25#,CDT250,ZZT25#200503-200604

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iADT251,AZT25#,CDT250,ZZT25#200301-200604

53342CINSULATOR, HOOD, NO.2

main53342-05010iAZT251200309-200604

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

53801FENDER SUB-ASSY, FRONT RH

main53811-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

main53811-05040iADT25#,AZT25#,ZZT25#200604

53802FENDER SUB-ASSY, FRONT LH

main53812-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

main53812-05040iADT25#,AZT25#,ZZT25#200604

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-05020iADT251,AZT25#,CDT250,ZZT25#200301-200605

sub53866-05021

main53866-05021iADT25#,AZT25#,ZZT25#200605

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-05020iADT251,AZT25#,CDT250,ZZT25#200301-200605

sub53867-05021

main53867-05021iADT25#,AZT25#,ZZT25#200605

53882FSEAL, FRONT FENDER

main53882-16030iADT251,AZT25#,CDT250,ZZT25#200301-200604

9011906137

main90119-06137

9046708136

main90467-08136

13 parts on this diagram · 2 diagrams in section
