Toyota AVENSIS — HEATING & AIR CONDITIONING - SET

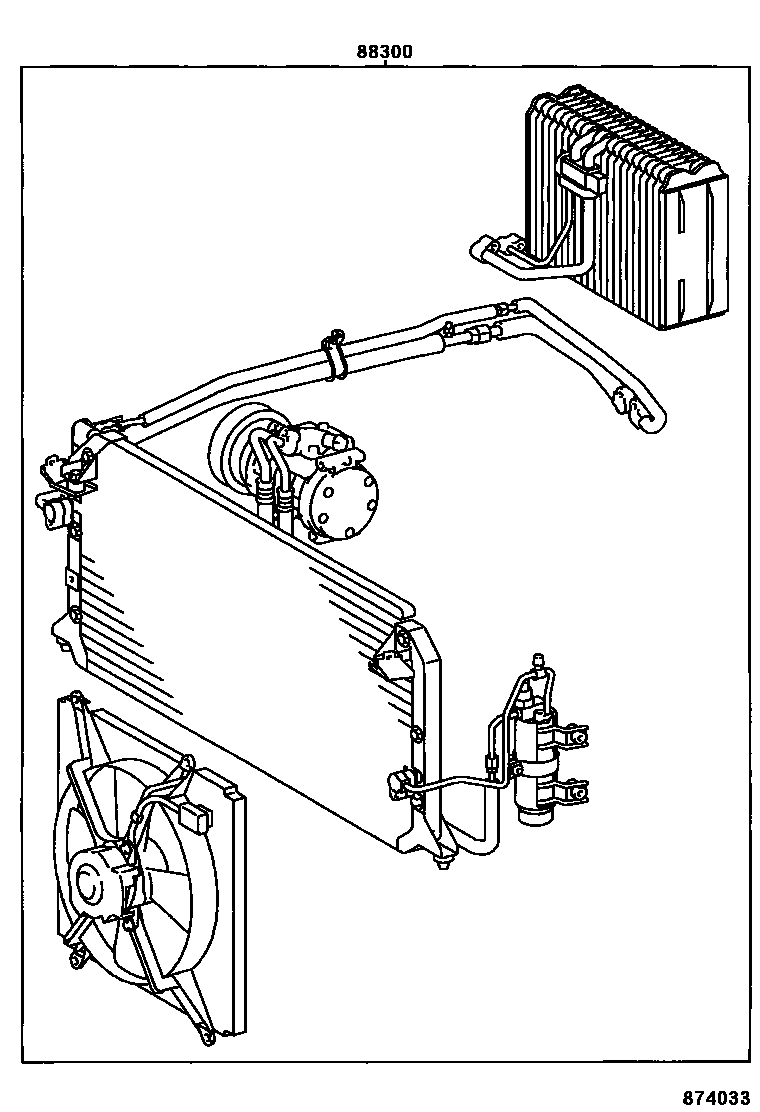

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-05060i199710-200007

main88300-05070i199710-200007

main88300-05080i199710-199805

GERMANY SPEC

main88300-05110i199710-200007

main88300-05120i199710-200007

main88300-05130i199710-200007

main88300-05140i199710-200007

main88300-05170i199710-200007

main88300-05180i199908-200007

main88300-05190i199908-200007

main88300-05220i200007

main88300-05230i200007

main88300-05240i200007

main88300-05250i200007

main88300-05260i200007

main88300-05270i200007

main88300-05290i200007

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota AVENSIS

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota AVENSIS. Key components include: COOLER & ACCESSORY ASSY.
