Toyota AVENSIS — HEADLAMP

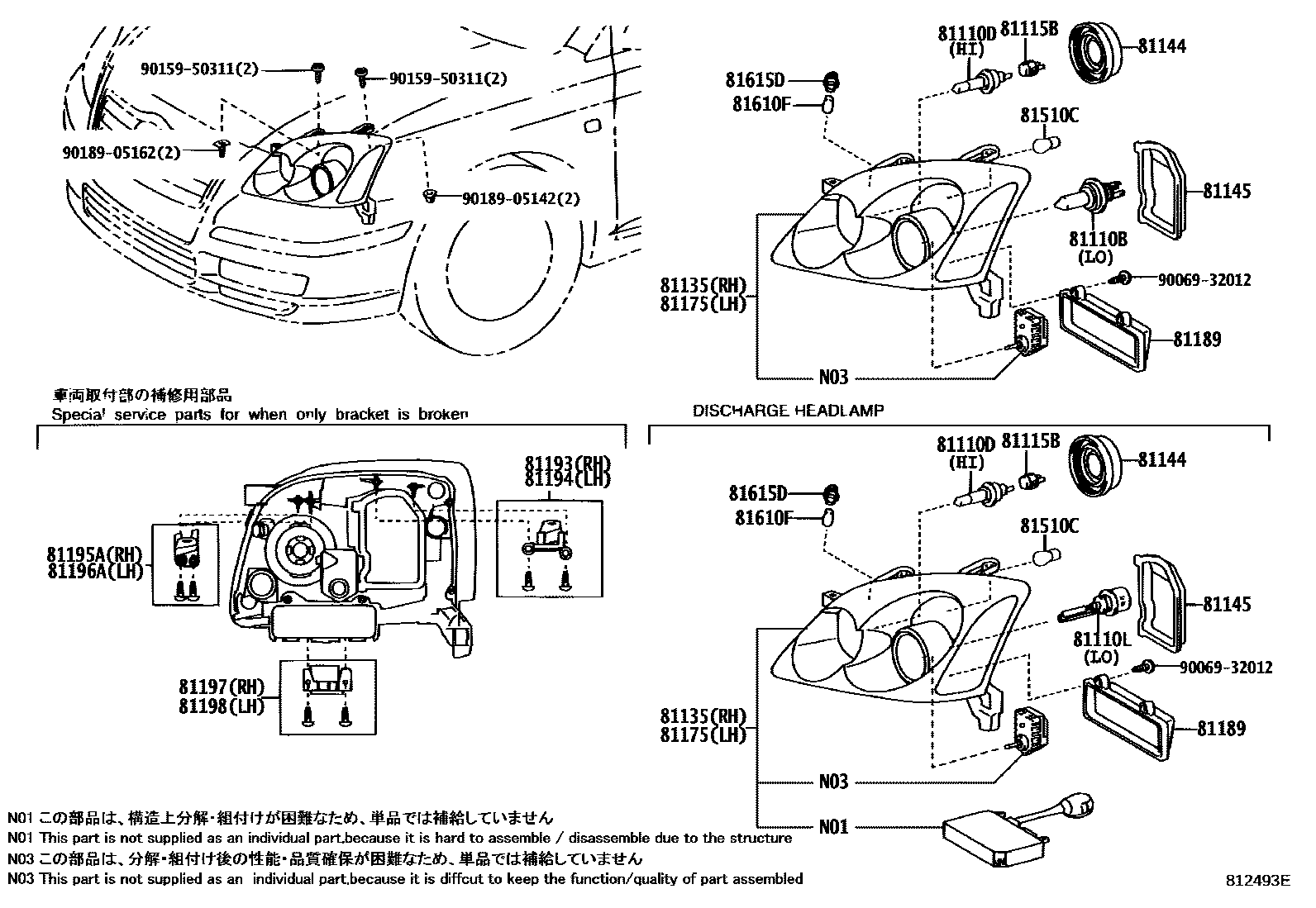

Parts diagram
81110BBULB(FOR HEADLAMP, NO.1)
main90080-81067i200301-200604
12V 55W
81110DBULB(FOR HEADLAMP, NO.2)
main90981-WD005i200301-200604
12V 55W,*HAL *WH
81110LBULB, DISCHARGE HEADLAMP
81115BSOCKET,HEADLAMP, NO.1
main90069-81049i200301-200604
81135UNIT ASSY, HEADLAMP, RH
main81130-05160i200301-200405
sub81130-05163
sub81135-05161
main81130-05161i200406-200410
sub81130-05163
sub81135-05161
main81130-05162i200410-200512
LABEL=62
sub81130-05163
sub81135-05161
main81130-05163i200512-200604
LABEL=62
main81130-05190i200301-200405
HEAD LAMP AIMING-RH
sub81130-05191
main81130-05191i200406-200410
HEAD LAMP AIMING-RH
sub81130-05192
main81130-05192i200410-200512
HEAD LAMP AIMING-RH
sub81130-05194
sub81135-05161
main81130-05194i200512-200604
HEAD LAMP AIMING-RH
main81130-05220i200604
main81130-05240i200604
HEAD LAMP AIMING-RH AIMING
81144COVER, HEADLAMP, NO.1
main81139-05160i200301-200604
81145COVER, HEADLAMP, NO.2
main81135-05160i200301-200512
RH
main81135-05161i200512-200604
RH
main81135-05220i200604-200606
RH
sub81135-05240
main81135-05240i200604
RH
main81135-05240i200604
HEAD LAMP AIMING-RH AIMING,RH
main81175-05160i200301-200512
LH
main81175-05161i200512-200604
LH
main81175-05220i200604-200606
LH
sub81175-05240
main81175-05240i200604
HEAD LAMP AIMING-RH AIMING,LH
main81175-05240i200604
LH
81175UNIT ASSY, HEADLAMP, LH
main81170-05160i200301-200405
sub81170-05163
sub81175-05161
main81170-05161i200406-200410
sub81170-05163
sub81175-05161
main81170-05162i200410-200512
LABEL=62
sub81170-05163
sub81175-05161
main81170-05163i200512-200604
LABEL=62
main81170-05190i200301-200405
HEAD LAMP AIMING-RH
sub81170-05191
main81170-05191i200406-200410
HEAD LAMP AIMING-RH
sub81170-05192
main81170-05192i200410-200512
HEAD LAMP AIMING-RH
sub81170-05194
sub81175-05161
main81170-05194i200512-200604
HEAD LAMP AIMING-RH
main81170-05220i200604
main81170-05240i200604
HEAD LAMP AIMING-RH AIMING
81189COVER, HEADLAMP
main81136-05160i200301-200604
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-05020i200301-200604
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-05020i200301-200604
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-05010i200301-200604
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-05010i200301-200604
81197BRACKET, HEADLAMP, LOWER RH
main81197-05010i200301-200604
main81197-05020i200604
81198BRACKET, HEADLAMP, LWR LH
main81198-05010i200301-200604
main81198-05020i200604
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90080-81046i200301-200409
12V 21W
main90981-15021i200604
12V 21W,AMBER
main90981-WF005i200409-200604
12V 21W
81610FBULB(FOR CLEARANCE LAMP)
main90080-81086i200301-200409
12V 5W
main90981-WB006i200409-200604
12V 5W
81615DSOCKET, CLEARANCE LAMP
main90069-81050i200301-200604
main90075-60077i200604
9006932012
main90069-32012
9015950311
main90159-50311
9018905142
main90189-05142
9018905162
main90189-05162

22 parts on this diagram · 2 diagrams in section
